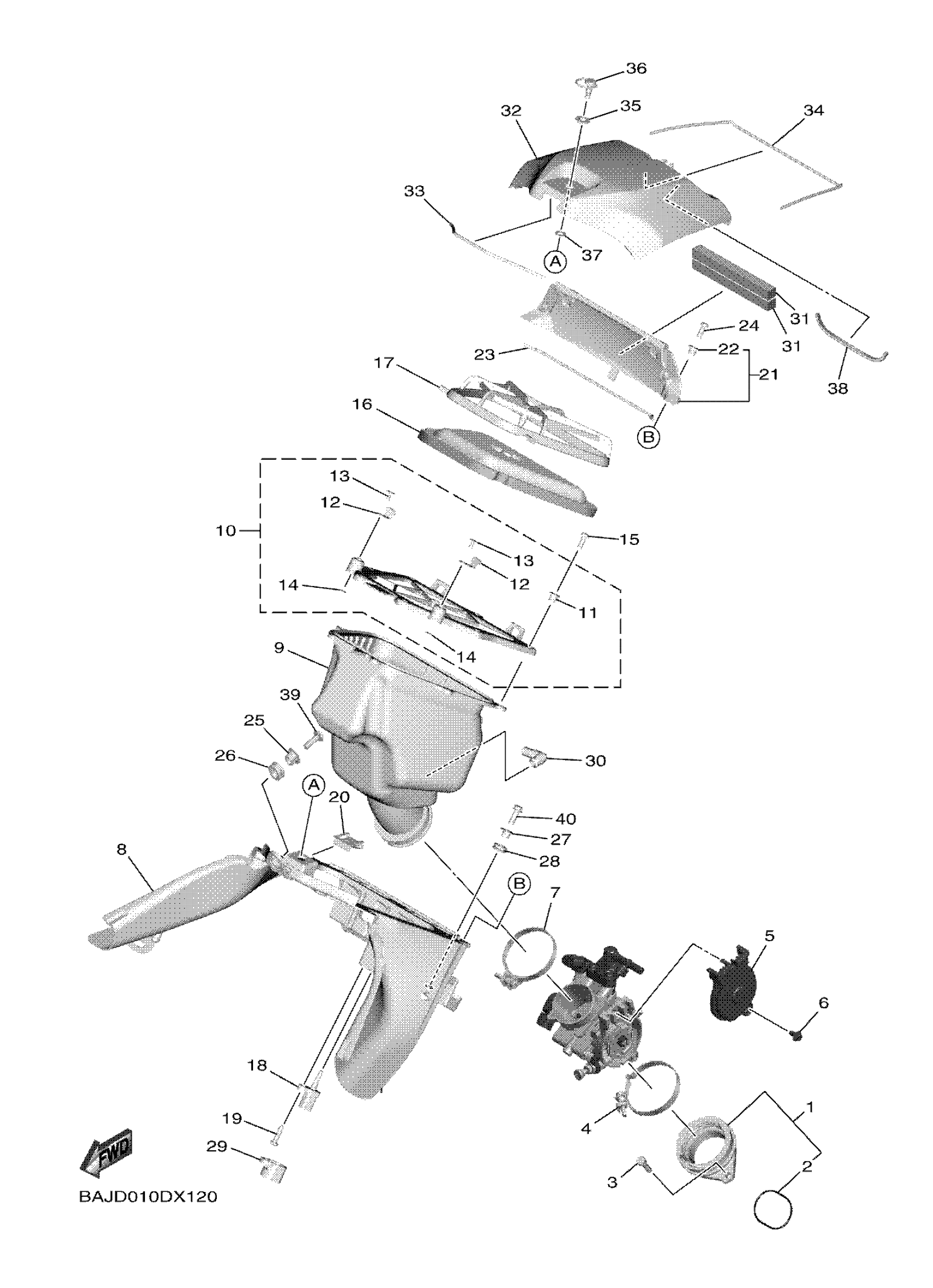

Yamaha YZ250FXR (YZ250FX) BAJL 2024 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 3

B7B-13597-10-00

$185.99

2

GASKET

B7B-13566-10-00

$10.49

3

BOLT,SOCKET HEAD

91314-06020-00

$1.49

4

HOSE CLAMP ASSY

90450-60004-00

$16.99

5

COVER 1

BR9-14293-00-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

$7.49

7

HOSE CLAMP ASSY

90450-58006-00

$20.99

8

CASE, AIR CLEANER 1

BR9-14411-01-00

$85.99

9

JOINT, AIR CLEANER

BAJ-14453-01-00

Unavailable

10

HOLDER, GUIDE

BR9-14459-01-00

$59.99

11

COLLAR

90387-05055-00

$2.17

12

HINGE

8GC-14406-00-00

$9.49

13

RIVET, BLIND

90267-32013-00

$2.22

14

WASHER, PLATE

90201-03008-00

$8.49

15

SCREW,PAN HEAD

98502-05014-00

$2.22

16

ELEMENT, AIR CLEANER

B2W-14451-01-00

Unavailable

17

GUIDE

BR9-14458-00-00

Unavailable

18

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

19

SCREW, PANHEAD TAPPING

97702-50520-00

Unavailable

20

PLATE, SPRING

4XV-2177L-01-00

Unavailable

21

CAP, CLEANER CASE 2

BR9-14422-00-00

Unavailable

22

COLLAR

90387-05055-00

$2.17

23

SEAL

BR9-14462-00-00

Unavailable

24

SCREW,PAN HEAD

98502-05014-00

$2.22

25

COLLAR

BR9-14449-00-00

Unavailable

26

GROMMET

90480-01028-00

Unavailable

27

COLLAR

90387-06273-00

Unavailable

28

GROMMET (2T4)

90480-12237-00

Unavailable

29

HOLDER

20S-1445C-01-00

Unavailable

30

PIPE

5TJ-14419-00-00

Unavailable

31

DAMPER, PLATE 6

2D1-2414R-00-00

Unavailable

32

CAP, CLEANER CASE 1

B7B-14412-00-00

Unavailable

33

SEAL

1SL-14452-00-00

Unavailable

34

SEAL

BR9-14457-00-00

Unavailable

35

COLLAR

90387-07045-00

Unavailable

36

HEAD

1SL-28386-00-00

Unavailable

37

WASHER, SPECIAL 1

5TJ-21757-00-00

Unavailable

38

SEAL

B7B-14239-00-00

Unavailable

39

BOLT, FLANGE

90105-06203-00

Unavailable

40

BOLT, FLANGE DEEP RECESS

95E37-06016-00

Unavailable
