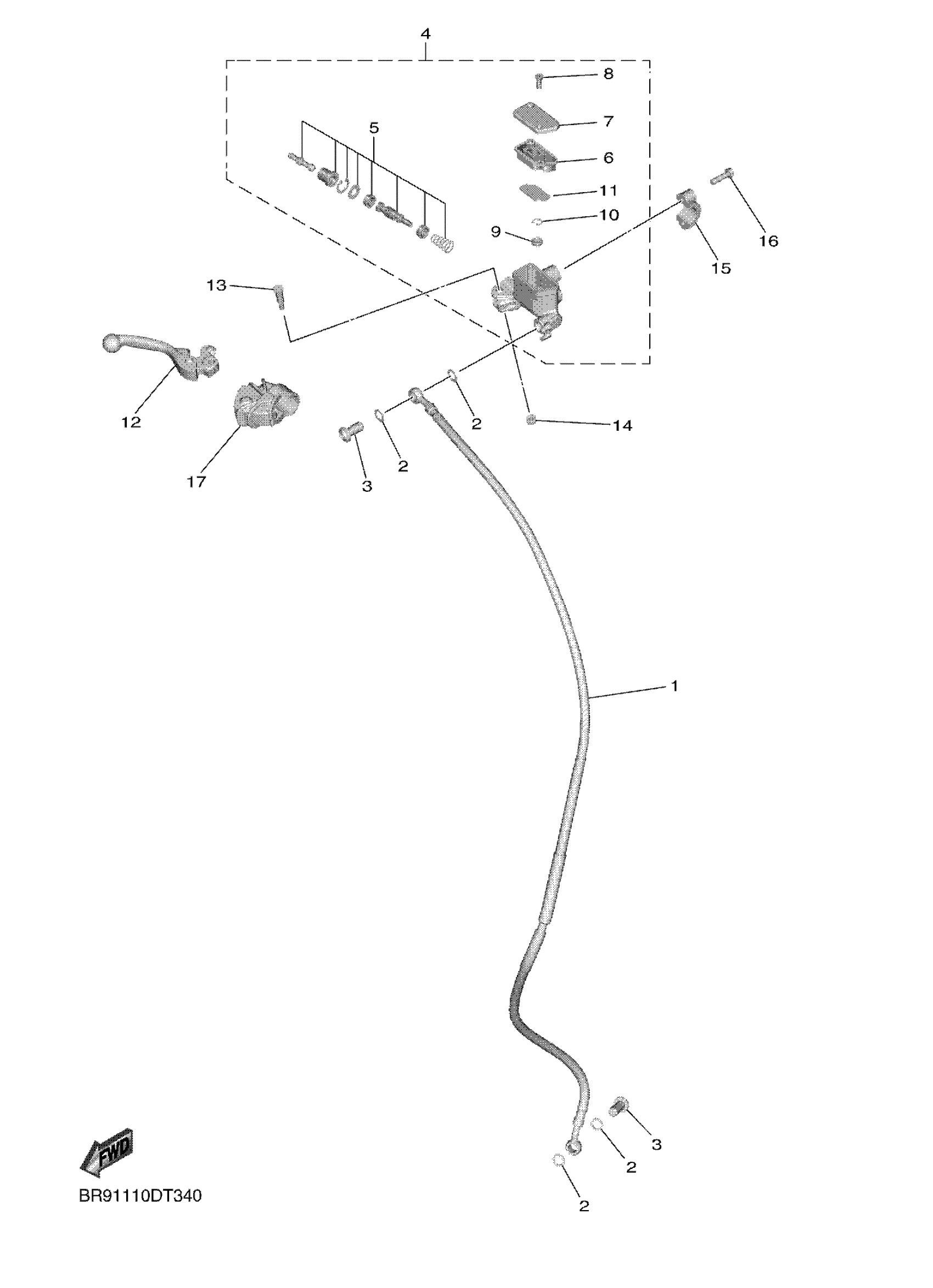

Yamaha YZ250FXR (YZ250FX) BAJL 2024 FRONT MASTER CYLINDER Diagram

Description

Price

HOSE, BRAKE 1

1SL-25872-00-00

$177.99

GASKET

90430-10005-00

$9.49

BOLT, UNION

90401-10172-00

$5.60

MASTER CYLINDER SUB ASSY

5XC-W2587-00-00

$296.99

CYLINDER KIT, MASTER

5XC-W0041-00-00

$61.99

DIAPHRAGM, RESERVOIR

5XC-25854-G0-00

$13.49

CAP, RESERVOIR

5XC-25852-G0-00

$23.99

SCREW, FLAT

98707-04012-00

$2.18

SEPARATOR ASSY

5CG-25715-00-00

$13.49

CIRCLIP

5CG-2585G-00-00

$5.49

FLOAT, RESERVOIR

5XC-25853-G0-00

$5.49

LEVER 2

B2W-83922-00-00

$43.99

BOLT, LEVER

5MV-2589F-00-00

$6.99

NUT, FLANGE(7NB)

95780-06500-00

$2.60

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$20.99

BOLT, FITTING

5MV-25833-00-00

Unavailable

COVER, HANDLE LEVER 1

5XC-26372-G0-00

Unavailable
