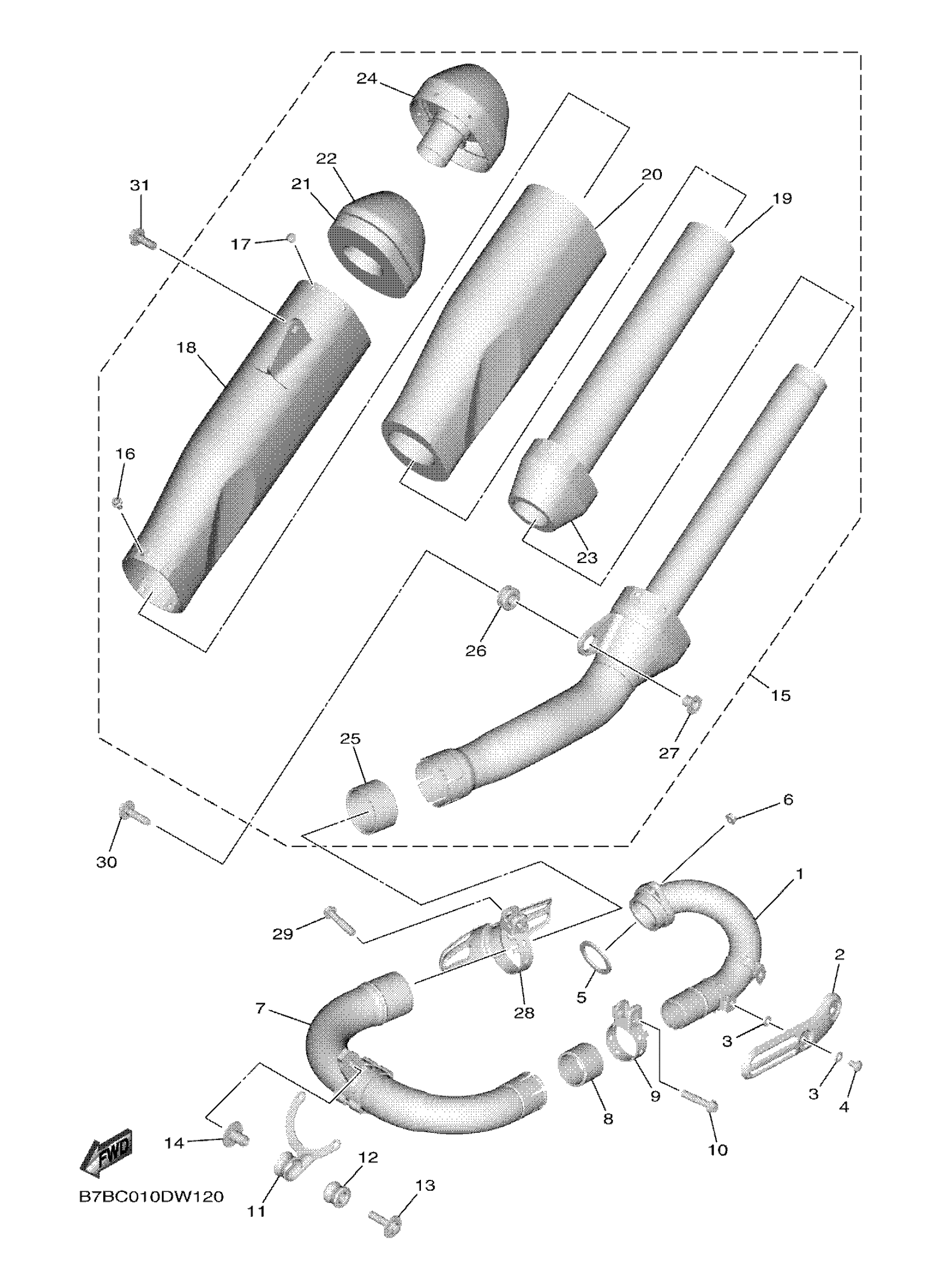

Yamaha YZ250FXR (YZ250FX) BAJL 2024 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

B7B-14611-01-00

$175.99

2

PROTECTOR, EXHAUST PIPE

BAJ-14628-00-00

Unavailable

3

WASHER, PLATE

90201-05017-00

$8.49

4

SCREW, BIND(1JK)

98980-06010-00

$9.49

5

GASKET, EXHAUST PIPE

5NL-14613-00-00

$14.49

6

NUT, FLANGE(7NB)

95780-06500-00

$2.60

7

PIPE, EXHAUST 2

B7B-14621-00-00

$212.99

8

GASKET, SILENCER

19D-14755-00-00

$16.49

9

BAND, SILENCER

B7B-14788-00-00

$22.99

10

BOLT, FLANGE DEEP RECESS

95E34-08040-00

$1.49

11

STAY, EXHAUST PIPE 1

B7B-14639-00-00

$21.99

12

DAMPER, MUFFLER

5VY-14747-00-00

$14.49

13

BOLT, WITH WASHER

90119-08174-00

$5.60

14

COLLAR

90387-08081-00

$8.49

15

SILENCER ASSY

B7B-14750-30-00

Unavailable

16

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

Unavailable

17

RIVET, BLIND

90267-48021-00

Unavailable

18

BODY, SILENCER

BR9-1466G-00-00

Unavailable

19

FIBER

1SL-1469A-10-00

Unavailable

20

FIBER 2

B2W-1477E-00-00

Unavailable

21

FIBER

1SL-1469F-00-00

Unavailable

22

FIBER 4

B2W-1477G-00-00

Unavailable

23

FIBER 5

B2W-1477H-00-00

Unavailable

24

CAP, SILENCER 2

B7B-14798-30-00

Unavailable

25

GASKET, MUFFLER

1SL-14714-00-00

Unavailable

26

GROMMET

90480-20005-00

Unavailable

27

COLLAR

90387-08110-00

Unavailable

28

BAND, MUFFLER

BR9-14715-00-00

Unavailable

29

BOLT, FLANGE DEEP RECESS

95E34-08040-00

$1.49

30

BOLT, WITH WASHER

90119-08177-00

Unavailable

31

BOLT, WITH WASHER

90119-08170-00

Unavailable
