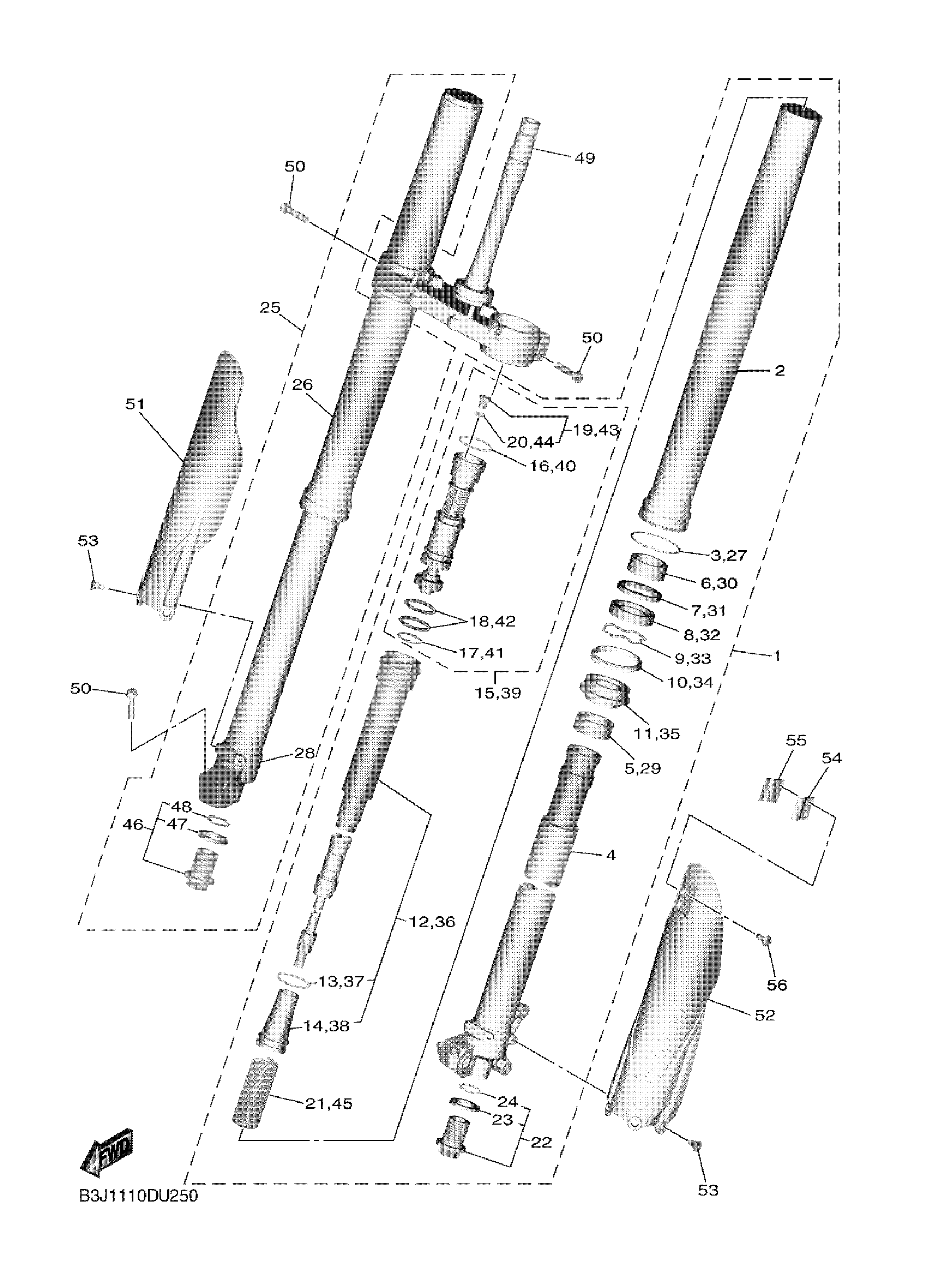

Yamaha YZ250FXP (YZ250FX) BAJF 2023 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
BAJ-23102-31-00
Unavailable
15
VALVE COMP.
BAJ-2316A-21-00
Unavailable
16
O-RING
1C3-23188-L2-00
Unavailable
17
O-RING
1C3-23188-P0-00
Unavailable
18
O-RING
1AE-23147-01-00
Unavailable
19
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
20
O-RING
1C3-23188-R1-00
Unavailable
21
SPRING, FRONT FORK (K=4.6)
BR9-23141-30-00
Unavailable
22
BOLT, CAP
5XC-23111-01-00
Unavailable
23
GASKET
2HH-23158-L0-00
Unavailable
24
GASKET
276-23114-02-00
Unavailable
25
FRONT FORK ASSY (R
BAJ-23103-31-00
Unavailable
28
INNER TUBE COMP.1
B7R-23110-01-00
Unavailable
39
VALVE COMP.
BAJ-2316A-21-00
Unavailable
40
O-RING
1C3-23188-L2-00
Unavailable
41
O-RING
1C3-23188-P0-00
Unavailable
42
O-RING
1AE-23147-01-00
Unavailable
43
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
44
O-RING
1C3-23188-R1-00
Unavailable
45
SPRING, FRONT FORK (K=4.6)
BR9-23141-30-00
Unavailable
46
BOLT, CAP
5XC-23111-01-00
Unavailable
47
GASKET
2HH-23158-L0-00
Unavailable
48
GASKET
276-23114-02-00
Unavailable
49
UNDER BRACKET COMP.
33D-23340-20-00
Unavailable
50
BOLT, FLANGE DEEP RECESS
95E34-08035-00
Unavailable
51
PROTECTOR 2
17D-2315J-J0-00
Unavailable
52
PROTECTOR 1
17D-2315H-J0-00
Unavailable
53
BOLT
90109-06232-00
Unavailable
54
CLAMP
17D-23466-00-00
Unavailable
55
CLAMP
17D-23467-00-00
Unavailable
56
BOLT, FLANGE
90105-06170-00
Unavailable
