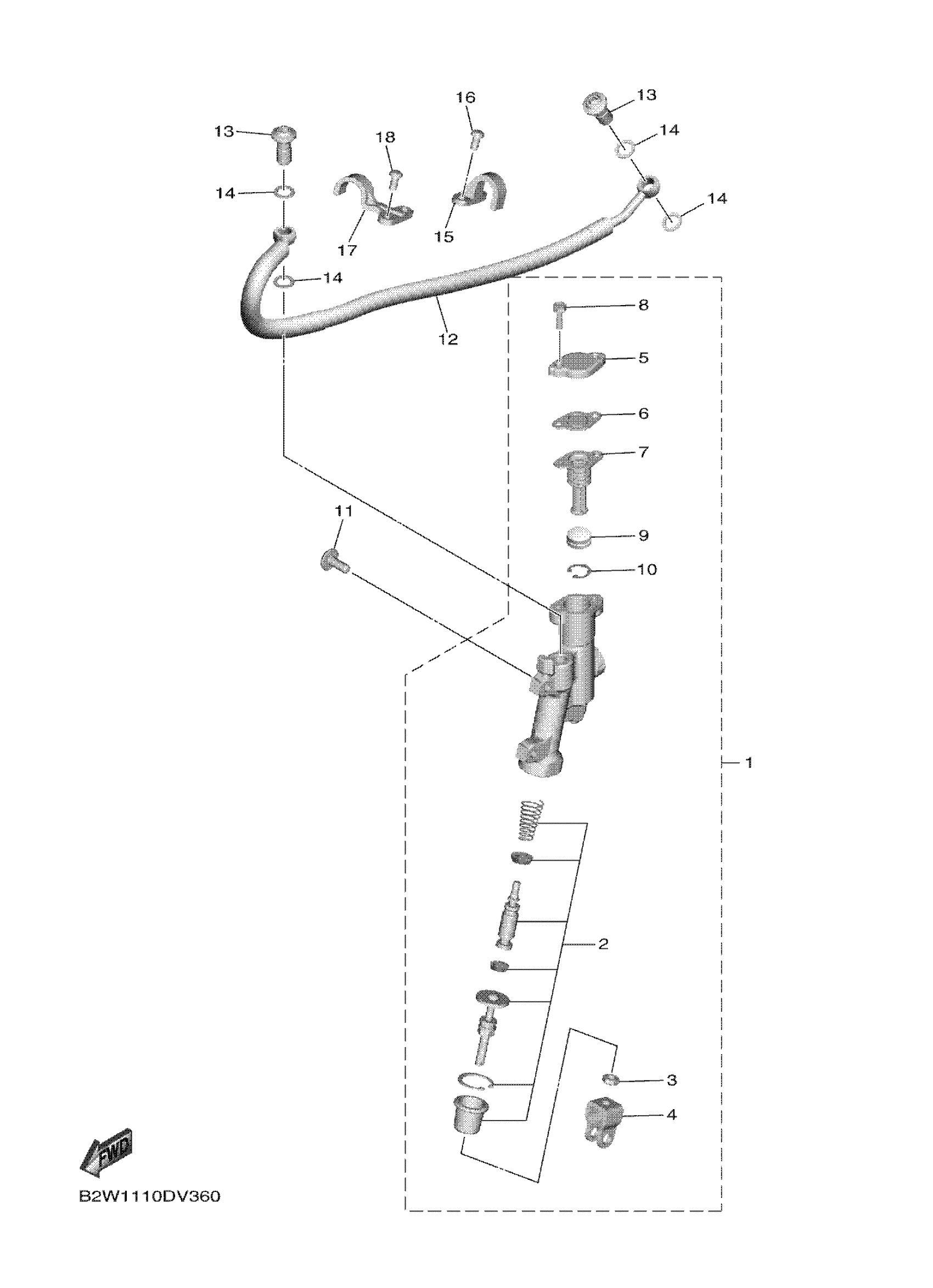

Yamaha YZ250FXN (YZ250FX) BAJA 2022 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

33D-2583V-00-00

$252.70

2

CYLINDER KIT, MASTER

5UN-W0042-50-00

$72.61

3

NUT

5UN-27218-00-00

$3.97

4

JOINT

5UN-27222-00-00

$14.29

5

CAP, RESERVOIR

5UN-25852-50-00

$14.24

6

PLATE, DIAPHRAGM

5UN-2585B-00-00

$5.99

7

DIAPHRAGM, RESERVOIR

5UN-25854-00-00

$11.48

8

BOLT

5UN-27217-00-00

$4.44

9

SEPARATOR ASSY

5CG-25715-00-00

$9.87

10

CIRCLIP

5CG-2585G-00-00

$4.70

11

BOLT,HEX. SOCKET BUTTON

90111-06116-00

$5.34

12

HOSE, BRAKE 2

B2W-25873-01-00

$51.09

13

BOLT, UNION

90401-10172-00

$3.46

14

GASKET

90430-10005-00

$6.57

15

HOLDER, BRAKE HOSE

1C3-25886-50-00

$10.40

16

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

17

HOLDER, BRAKE HOSE 2

1C3-25876-50-00

Unavailable

18

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable
