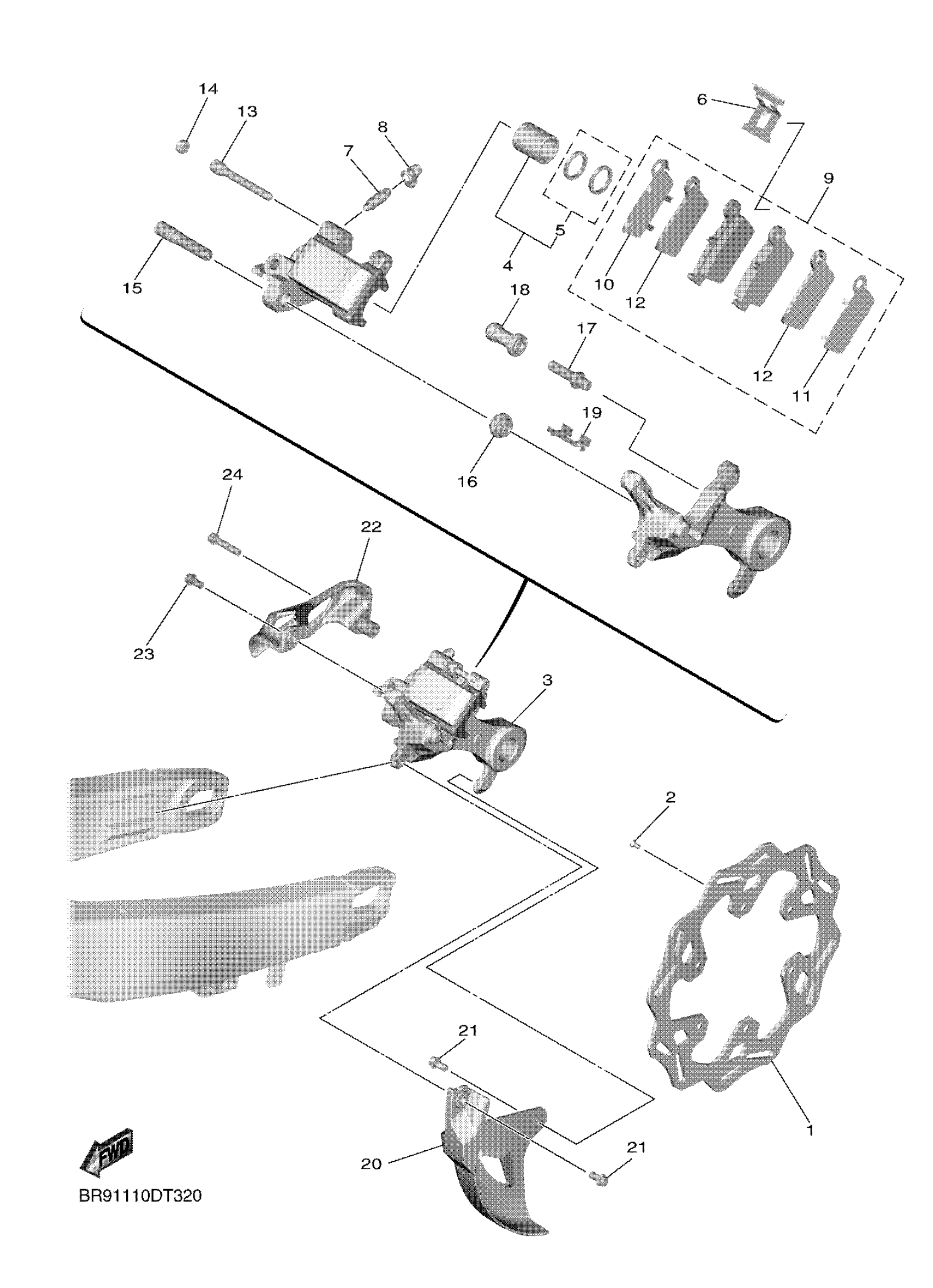

Yamaha YZ250FXL1 (YZ250FX) BAJ1 2020 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

B11-2582W-10-00

$158.99

2

SCREW, COUNTERSUNK

90151-06079-00

$3.23

3

CALIPER ASSY, REAR 2

1C3-2580W-72-00

$350.99

4

PISTON ASSY, CALIPER

5UN-W0057-50-00

$57.99

5

CALIPER SEAL KIT

5UN-W0047-50-00

$16.49

6

SUPPORT, PAD

5DH-25919-50-00

$20.99

7

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

8

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

9

BRAKE PAD KIT 2

1C3-W0046-B0-00

$44.99

10

.. SHIM, CALIPER

5UN-25828-60-00

Unavailable

11

SHIM, CALIPER

5UN-25827-60-00

$15.49

12

INSULATOR, HEAT

5UN-22898-60-00

$19.99

13

PIN, PAD

8CR-25924-00-00

$14.49

14

PLUG

5DH-25916-00-00

$9.99

15

PIN, SLIDE

5DH-25914-50-00

$22.99

16

BOOT, CALIPER

3JD-25917-00-00

Unavailable

17

PIN, SLIDE

5UN-25914-00-00

Unavailable

18

BOOT 2

1UY-25937-51-00

Unavailable

19

RETAINER

5UN-25913-00-00

Unavailable

20

PROTECTOR, DISK BRAKE

17D-25718-50-00

Unavailable

21

BOLT, FLANGE

90105-06110-00

Unavailable

22

PROTECTOR

17D-27491-50-00

Unavailable

23

BOLT, FLANGE

90105-06110-00

Unavailable

24

BOLT, FLANGE

90105-06111-00

Unavailable
