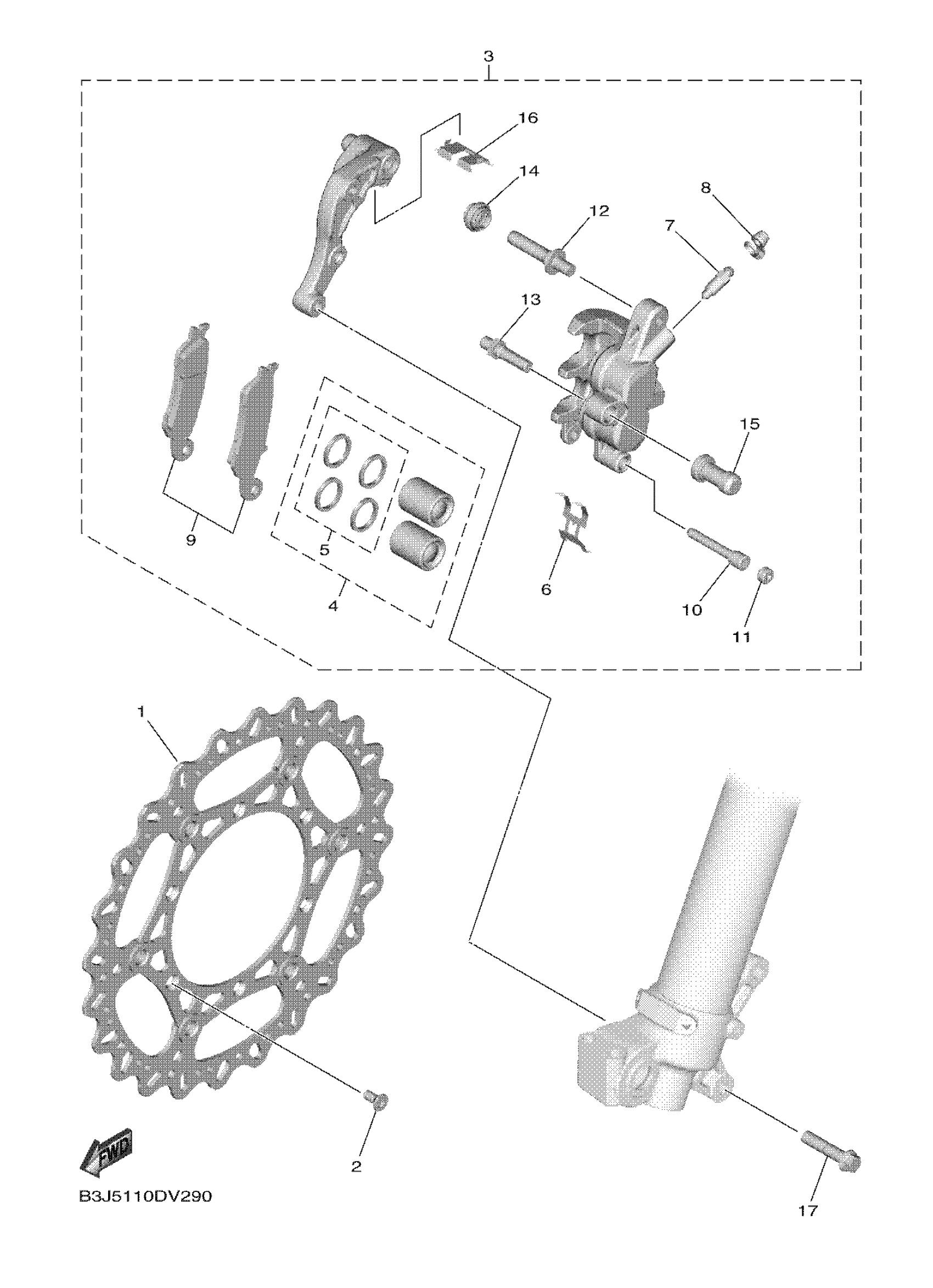

Yamaha YZ250FXL1 (YZ250FX) BAJ1 2020 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

B11-2581T-00-00

$163.01

2

SCREW, COUNTERSUNK

90151-06079-00

$2.49

3

CALIPER ASSY (LEFT)

B11-2580T-01-00

$401.71

4

PISTON ASSY, CALIP

5XC-25802-00-00

$88.77

5

CALIPER SEAL KIT

5KM-25803-10-00

$17.59

6

SUPPORT, PAD

5DH-25919-00-00

$16.55

7

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

8

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

9

BRAKE PAD KIT

B29-25805-01-00

$40.45

10

PIN, PAD

5DH-25933-00-00

$16.24

11

PLUG

5DH-25916-00-00

$6.94

12

BOLT

3SP-25926-51-00

$10.74

13

BOLT

3SP-25914-51-00

$3.67

14

BOOT, CALIPER

3JD-25917-00-00

$7.03

15

BOOT 2

1UY-25937-51-00

$11.48

16

RETAINER, CALIPER

5XC-25849-G0-00

Unavailable

17

BOLT, FLANGE

90105-08137-00

Unavailable
