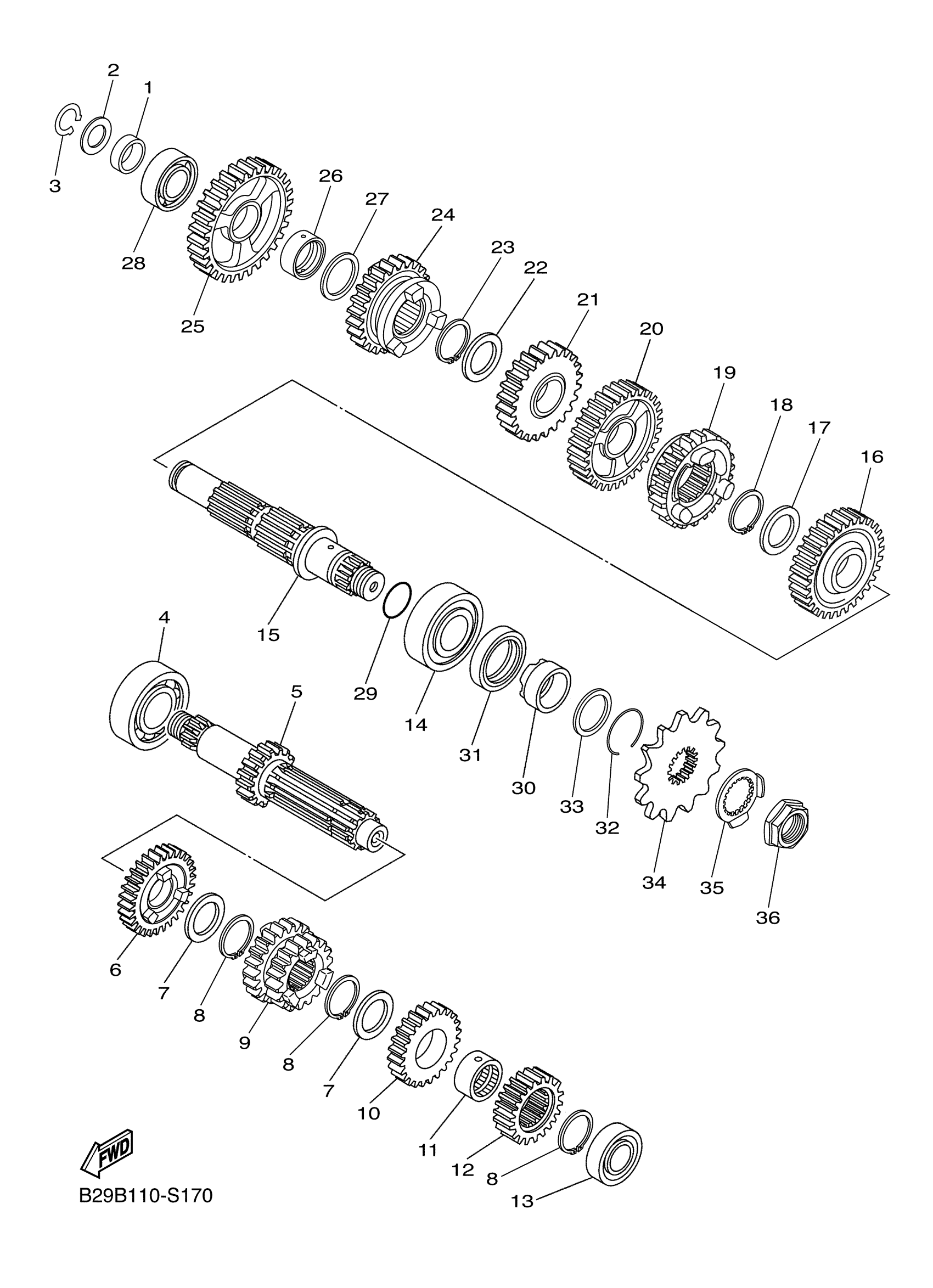

Yamaha YZ250FXH (YZ250FX) B29B 2017 TRANSMISSION Diagram

#

Description
Price

1

COLLAR

90387-175R2-00

Unavailable

2

WASHER, PLATE (30X)

90201-177G4-00

$9.49

3

CIRCLIP(1EY)

99009-17400-00

$4.73

4

BEARING (5Y1)

93306-00426-00

$42.99

5

AXLE, MAIN

2GB-17411-00-00

$110.99

6

GEAR, 6TH PINION

2GB-17161-00-00

$105.99

7

WASHER

90209-20008-00

$11.49

8

CIRCLIP (537)

93410-22039-00

$8.49

9

GEAR, 3RD PINION

B29-17131-00-00

Unavailable

10

GEAR, 5TH PINION

2GB-17151-00-00

$97.99

11

COLLAR

90387-20006-00

$31.99

12

GEAR, 2ND PINION

B29-17121-00-00

$109.99

13

BEARING(50M)

93306-20336-00

$32.99

14

BEARING

93306-27209-00

$76.99

15

DRIVE AXLE ASSY.,2

2GB-1742A-00-00

Unavailable

16

GEAR, 2ND WHEEL

B29-17221-00-00

Unavailable

17

WASHER

90209-23012-00

Unavailable

18

CIRCLIP (30X)

93410-26067-00

Unavailable

19

GEAR, 5TH WHEEL

2GB-17251-00-00

Unavailable

20

GEAR, 3RD WHEEL

B29-17231-00-00

Unavailable

21

GEAR, 4TH WHEEL

B29-17241-00-00

Unavailable

22

WASHER

90209-20008-00

$11.49

23

CIRCLIP (537)

93410-22039-00

$8.49

24

GEAR, 6TH WHEEL

2GB-17261-00-00

Unavailable

25

GEAR, 1ST WHEEL

2GB-17211-00-00

Unavailable

26

COLLAR

90387-17012-00

Unavailable

27

WASHER, PLATE (30X)

90201-177G4-00

$9.49

28

BEARING

93306-20351-00

Unavailable

29

O-RING

93210-196A4-00

Unavailable

30

COLLAR

90387-22033-00

Unavailable

31

OIL SEAL

93102-28012-00

Unavailable

32

CIRCLIP

93450-40N50-00

Unavailable

33

WASHER, PLATE

90201-29M00-00

Unavailable

34

SPROCKET, DRIVE (13T)

9383B-13218-00

Unavailable

35

WASHER, LOCK

90215-20003-00

Unavailable

36

NUT

90179-18001-00

Unavailable
