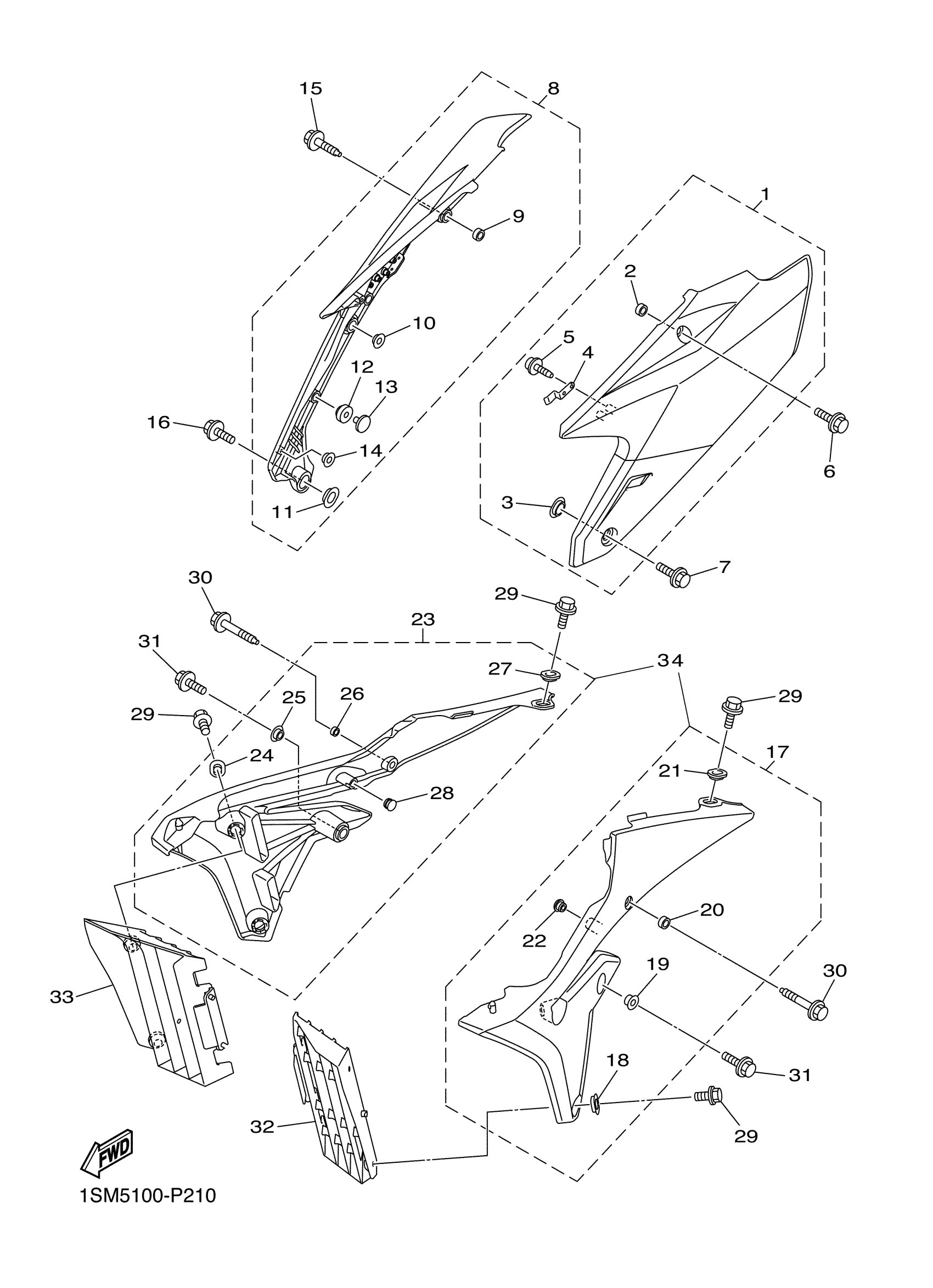

Yamaha YZ250FXH (YZ250FX) B29B 2017 SIDE COVER Diagram
#
Description
Price
4
HOOK
1SL-2176M-00-00
Unavailable
5
SCREW, TRUSS TAP.
97707-40012-00
Unavailable
14
. COLLAR
90387-06M31-00
Unavailable
17
SIDE COVER ASSY 3
1SL-21730-00-00
Unavailable
17
SIDE COVER INSERT ASSY. 3
1SL-217R0-60-00
Unavailable
18
COLLAR
17D-21749-00-00
Unavailable
19
COLLAR
90387-11009-00
Unavailable
20
COLLAR
90387-06106-00
Unavailable
21
COLLAR
1SL-21748-00-00
Unavailable
22
GROMMET (397)
90480-10068-00
Unavailable
23
SIDE COVER ASSY 4
1SL-21740-01-00
Unavailable
23
SIDE COVER INSERT ASSY. 4
1SL-217S0-60-00
Unavailable
24
COLLAR
17D-21749-00-00
Unavailable
25
COLLAR
90387-11009-00
Unavailable
26
COLLAR
90387-06106-00
Unavailable
27
COLLAR
1SL-21748-00-00
Unavailable
28
GROMMET (397)
90480-10068-00
Unavailable
29
BOLT, FLANGE
90105-06064-00
Unavailable
30
BOLT, FLANGE
90105-06179-00
Unavailable
31
BOLT, FLANGE
90105-06203-00
Unavailable
32
PANEL 1
1SL-2172A-00-00
Unavailable
33
PANEL 2
1SL-2172F-00-00
Unavailable
34
SIDE COVER
1SL-W003D-00-00
Unavailable
