Description

Price

1

FENDER, FRONT

17D-21511-50-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, FLANGE

90105-06127-00

$8.49

4

WASHER, PLATE

90201-06108-00

$4.61

5

LABEL, CAUTION

3FB-2415E-02-00

$4.84

6

REAR FENDER COMP.

2GB-21610-01-00

$60.99

7

NUT, REAR FENDER

5XE-21635-10-00

$13.49

8

COLLAR

5BE-21749-00-00

$6.99

9

COLLAR

90387-08086-00

$7.49

10

BOLT, FLANGE

90105-06100-00

$7.49

11

BOLT, WITH WASHER

90119-06268-00

$2.28

12

GUARD, FLAP

3D7-21642-00-00

$28.99

13

SCREW, TAPPING

97702-60016-00

$2.19

14

TUNING FORK MARK

5FK-2175C-31-00

$5.49

15

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

16

PLATE, COMPETITION USA

17D-2812P-00-00

Unavailable

17

GRAPHIC SET,REAR FENDER

B29-2165A-00-00

Unavailable

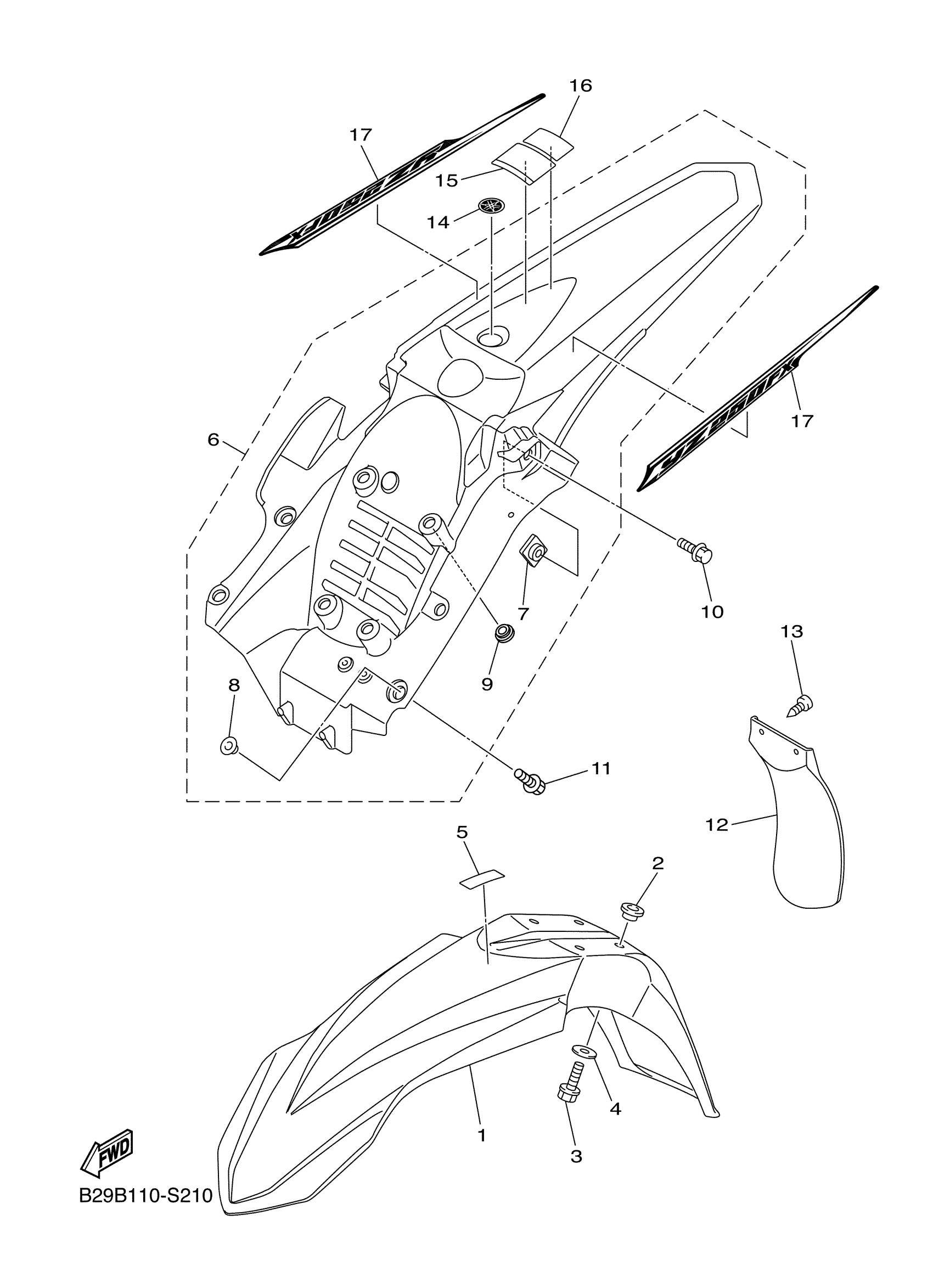

Yamaha YZ250FXH (YZ250FX) B29B 2017 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, FLANGE

WASHER, PLATE

LABEL, CAUTION

REAR FENDER COMP.

NUT, REAR FENDER

COLLAR

COLLAR

BOLT, FLANGE

BOLT, WITH WASHER

GUARD, FLAP

SCREW, TAPPING

TUNING FORK MARK

LABEL, CAUTION

PLATE, COMPETITION USA

GRAPHIC SET,REAR FENDER
