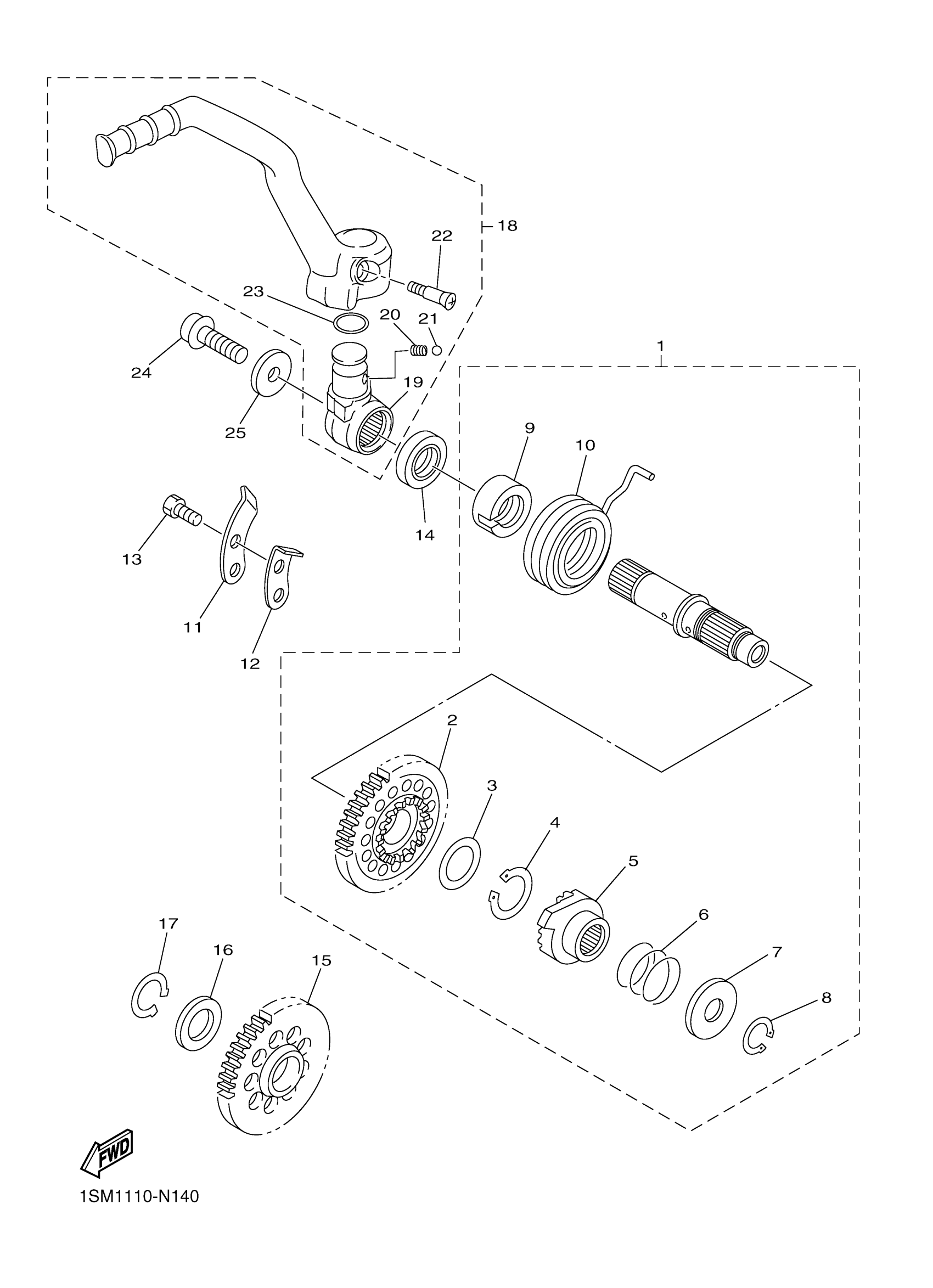

Yamaha YZ250FXF (YZ250FX) B291 2015 STARTER Diagram

#

Description
Price

1

KICK SHAFT ASSY

1SM-15601-00-00

Unavailable

2

GEAR, KICK

1SM-15641-00-00

Unavailable

3

WASHER, PLATE (2K7)

90201-20685-00

$7.49

4

CIRCLIP (525)

93410-20038-00

$3.76

5

WHEEL, RATCHET

2S2-15671-00-00

Unavailable

6

SPRING, COMPRESSION

90501-160A2-00

$7.49

7

WASHER, PLATE(4GL)

90201-167P7-00

$9.49

8

CIRCLIP(13T)

99009-16400-00

$5.60

9

GUIDE, SPRING

5NL-15664-00-00

$13.49

10

SPRING, TORSION(2VM)

90508-30743-00

$18.99

11

GUIDE, RATCHET WHEEL

2NX-15674-00-00

$9.99

12

STOPPER

2NX-15668-00-00

$24.99

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

14

OIL SEAL (22U)

93102-18278-00

$12.49

15

GEAR, KICK IDLE

1SM-15651-00-00

Unavailable

16

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

17

CIRCLIP(1EY)

99009-17400-00

Unavailable

18

KICK CRANK ASSY

1SM-15620-00-00

Unavailable

19

BOSS, KICK CRANK

1SM-15621-00-00

Unavailable

20

SPRING, COMPRESSION

90501-147A5-00

Unavailable

21

BALL (12R)

93507-32031-00

Unavailable

22

SCREW, COUNTERSUNK

90151-06045-00

Unavailable

23

O-RING(36Y)

93210-17570-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-08052-00

Unavailable

25

WASHER, PLATE

90201-08048-00

Unavailable
