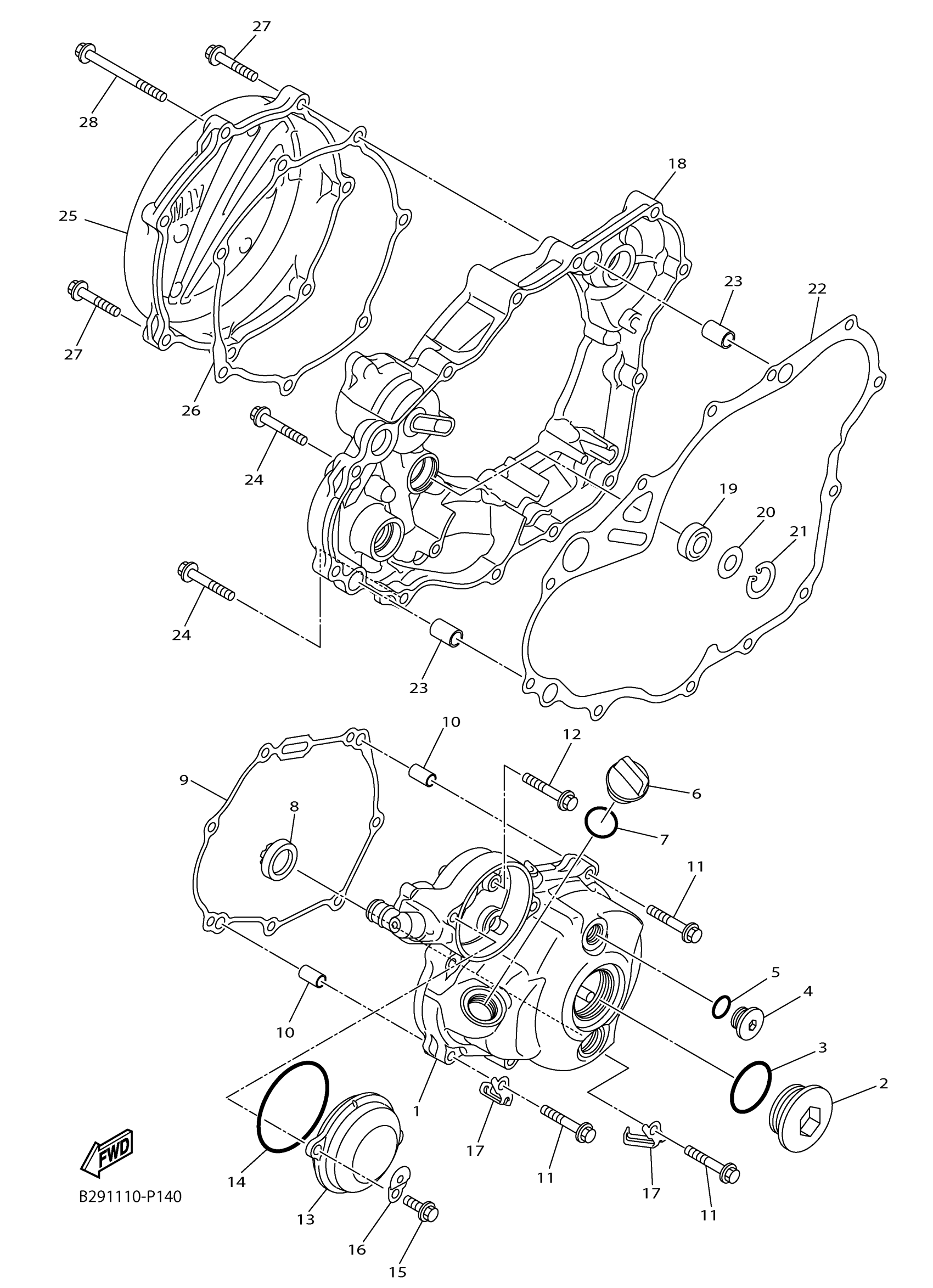

Yamaha YZ250FXF (YZ250FX) B291 2015 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2GB-15411-00-00

$188.99

2

PLUG, STRAIGHT SCREW

90340-36002-00

$15.99

3

O-RING

93210-35804-00

$0.48

4

PLUG, STRAIGHT SCREW

90340-14011-00

$22.99

5

O-RING (2H9)

93210-14369-00

$7.49

6

PLUG, OIL

3Y1-15363-10-00

$18.49

7

O-RING (646)

93210-19123-00

Unavailable

8

GAUGE, LEVEL

3Y6-15361-00-00

Unavailable

9

GASKET,CRCS COVER

1SM-15451-00-00

$23.99

10

PIN, DOWEL(3XW)

91808-16023-00

$8.49

11

BOLT, FLANGE

95022-06030-00

$3.72

12

BOLT, FLANGE

95022-06020-00

$3.62

13

COVER ASSY 2

5TJ-1549B-30-00

Unavailable

14

O-RING (1J7)

93210-58346-00

$10.49

15

BOLT, FLANGE

95022-06014-00

$3.14

16

BRACKET

2GB-15199-00-00

Unavailable

17

CLAMP

90465-08062-00

Unavailable

18

COVER, CRANKCASE 3

1SM-15431-00-00

Unavailable

19

OIL SEAL(4GY)

93101-14164-00

Unavailable

20

WASHER (566)

90201-15701-00

Unavailable

21

CIRCLIP

99009-22500-00

Unavailable

22

GASKET, CRANKCASE COVER 3

1SM-15462-00-00

Unavailable

23

PIN, DOWEL

99530-12016-00

Unavailable

24

BOLT, FLANGE

90105-06102-00

Unavailable

25

COVER, GENERATOR

1SM-15415-00-00

Unavailable

26

GASKET, COVER

1SM-15453-00-00

Unavailable

27

BOLT, FLANGE

95022-06025-00

Unavailable

28

BOLT, FLANGE

95022-06060-00

Unavailable
