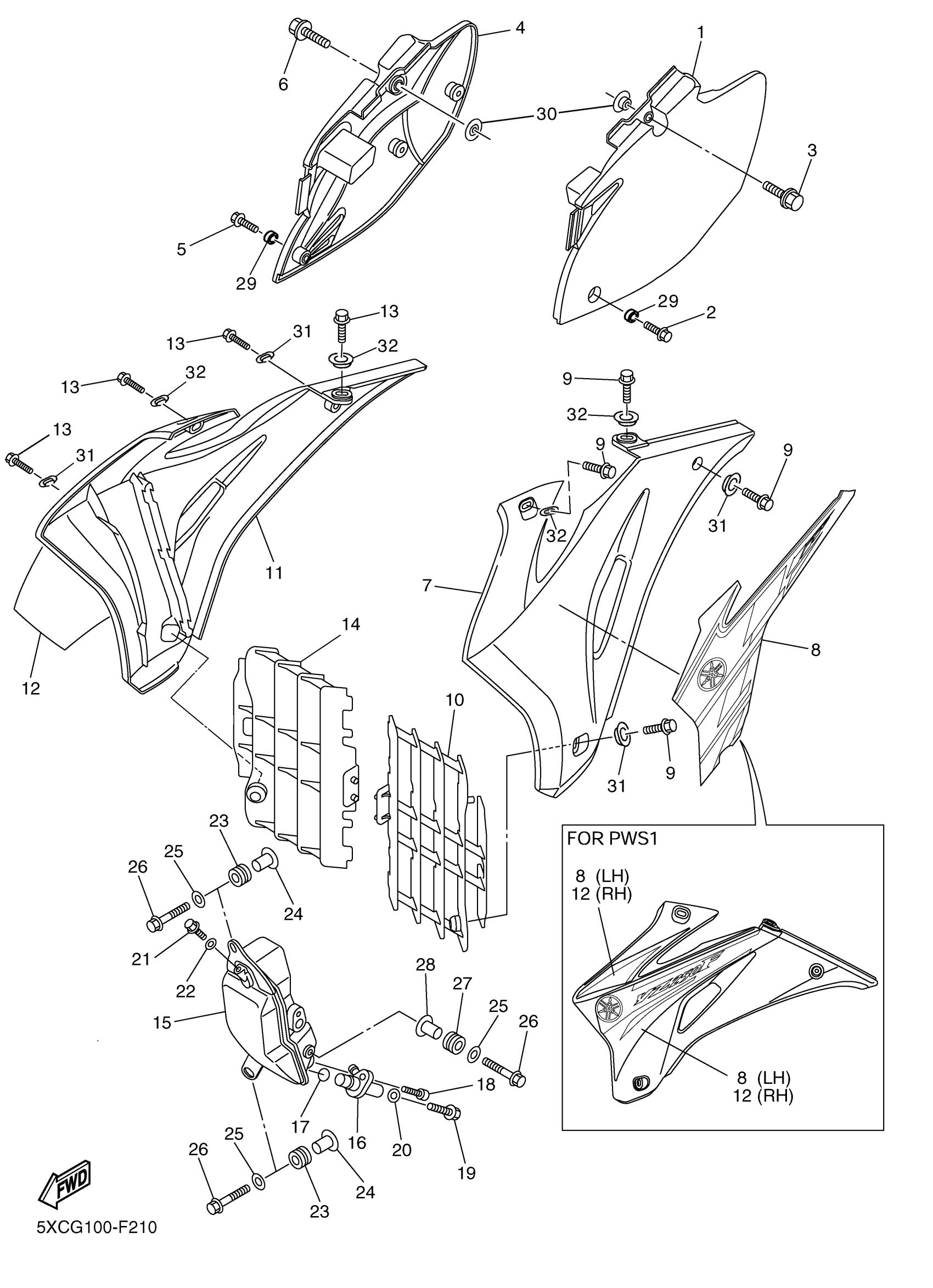

Yamaha YZ250FW (YZ250F) 5XCG 2007 SIDE COVER OIL TANK Diagram

#

Description
Price

1

SIDE COVER ASSY 1

5XC-21710-90-00

$29.99

2

BOLT, FLANGE

90105-06103-00

$4.88

3

BOLT, WITH WASHER

90119-08095-00

$8.49

4

SIDE COVER ASSY 2

5XC-21720-90-00

$33.99

5

BOLT, FLANGE

90105-06103-00

$4.88

6

BOLT, WITH WASHER

90119-08095-00

$8.49

7

SIDE COVER ASSY 3 (INDIGO) (INDIGO) (PURPLISH WHITE SOLID 1)

2S2-21730-70-00

Unavailable

7

SIDE COVER ASSY 3

5XC-21730-90-00

$32.99

8

GRAPHIC 1

5XC-2173E-10-00

$126.99

8

GRAPHIC SET 1

5XC-2173L-10-00

Unavailable

9

BOLT, FLANGE

90105-06064-00

Unavailable

10

PANEL 1

2S2-2172A-70-00

$40.99

11

SIDE COVER ASSY 4

2S2-21740-70-00

$39.99

11

SIDE COVER ASSY 4

5XC-21740-90-00

$29.99

12

GRAPHIC 2 (DEEP PURPLISH BLUE SOLID E)

5XC-2173F-10-00

Unavailable

12

GRAPHIC SET 2

5XC-2174L-10-00

Unavailable

13

BOLT, FLANGE

90105-06064-00

Unavailable

14

PANEL 1

2S2-2172A-80-00

Unavailable

15

TANK, OIL

5XC-21751-G0-00

Unavailable

16

PIPE, OIL 1

5XC-13416-90-00

Unavailable

17

O-RING (2H9)

93210-14369-00

Unavailable

18

BOLT(3MA)

91312-06016-00

Unavailable

19

BOLT, FLANGE

90105-08151-00

Unavailable

20

WASHER, PLATE (4L0)

90201-082A6-00

Unavailable

21

BOLT, FLANGE

90105-06128-00

Unavailable

22

WASHER, PLATE (1L9)

90201-06630-00

Unavailable

23

GROMMET (4N0)

90480-10289-00

Unavailable

24

COLLAR

90387-06150-00

Unavailable

25

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

26

BOLT, FLANGE

90105-06112-00

Unavailable

27

GROMMET(1JK)

90480-14433-00

Unavailable

28

COLLAR

90387-06161-00

Unavailable

29

COLLAR

5BE-21749-00-00

Unavailable

30

COLLAR

90387-06009-00

Unavailable

31

COLLAR

5TA-21749-00-00

Unavailable

32

COLLAR

5XC-21749-90-00

Unavailable
