Partiron

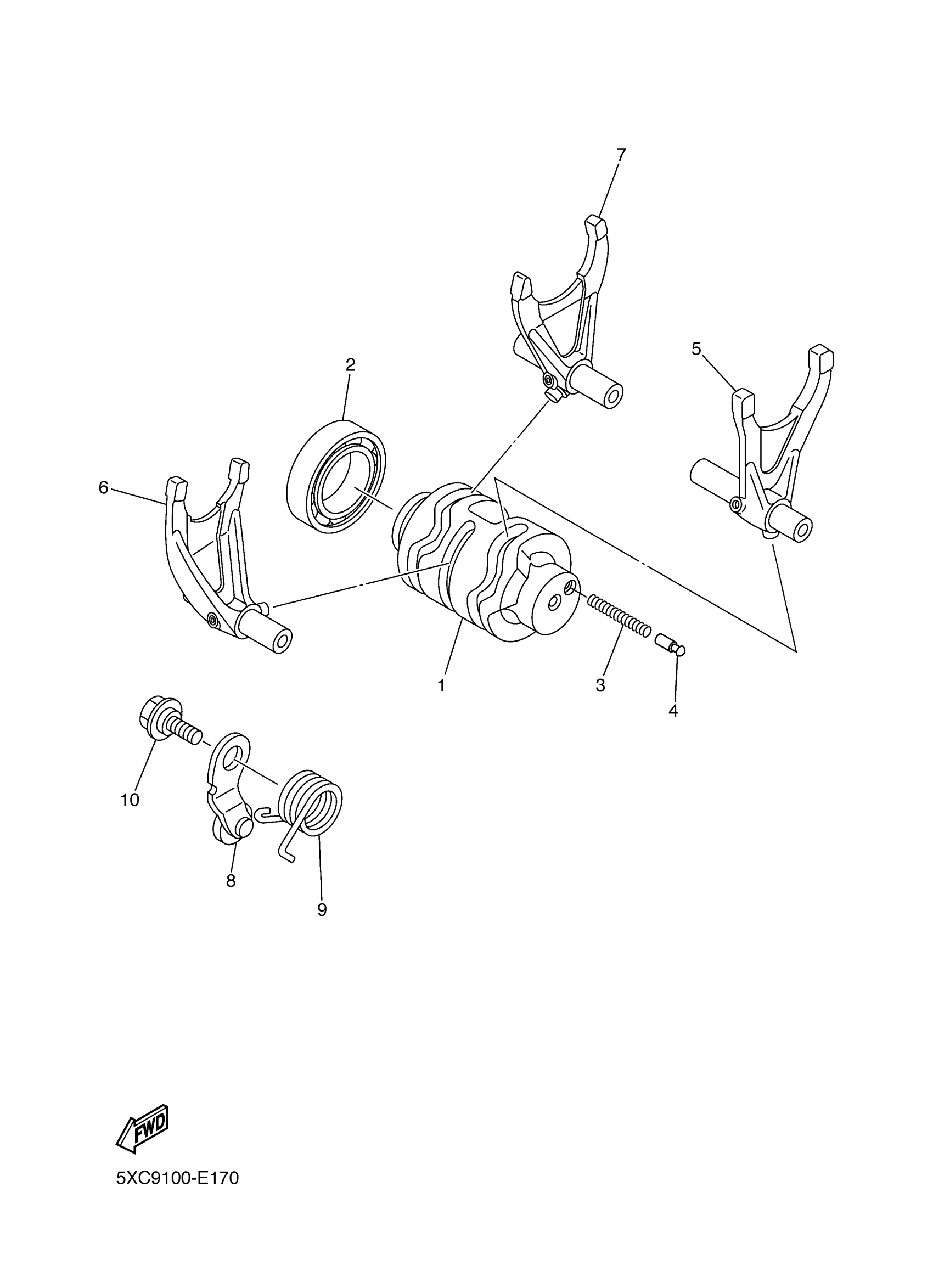

Yamaha YZ250FW (YZ250F) 5XCG 2007 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

5NL-18541-00-00

$219.70

2

BEARING

93306-90509-00

$31.85

3

SPRING COMPRESSION278185450000

90501-06022-00

$5.75

4

POINT, NEUTRAL

4UN-18542-00-00

$7.89

5

FORK, SHIFT 1

5NL-18501-00-00

$124.97

6

FORK, SHIFT 2

5NL-18502-00-00

$108.74

7

FORK, SHIFT 3

5NL-18503-00-00

$116.68

8

STOPPER LEVER ASSY

3XK-18140-00-00

$19.38

9

SPRING, TORSION (17W)

90508-26561-00

$8.15

10

BOLT

90109-06195-00

$5.89
