Description

Price

1

RADIATOR ASSY

5XC-1240A-G0-00

Unavailable

2

STAY, RADIATOR

2S2-12464-70-00

Unavailable

3

BOLT, BUTTON HEAD

92012-06010-00

$4.30

4

NUT, SPRING

90183-060A6-00

$5.49

5

RADIATOR ASSY

5XC-12461-G0-00

Unavailable

6

STAY, RADIATOR

2S2-12464-70-00

Unavailable

7

BOLT, BUTTON HEAD

92012-06010-00

$4.30

8

NUT, SPRING

90183-060A6-00

$5.49

9

CAP, RADIATOR

4FL-12462-00-00

$62.99

10

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

11

CLIP

90467-090A2-00

$4.41

12

PIPE 1

5XC-12481-G0-00

Unavailable

13

BOLT,SOCKET HEAD

91314-06020-00

$1.49

14

. O-RING

93210-16275-00

Unavailable

15

HOSE 1

5XC-12576-G0-00

Unavailable

16

PIPE 2

1C3-12482-00-00

Unavailable

17

HOSE 3

5XC-12578-G0-00

Unavailable

18

HOSE 4

5XC-12579-G0-00

Unavailable

19

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

20

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

21

HOSE CLAMP ASSY

90450-32003-00

Unavailable

22

GROMMET(3RB)

90480-15528-00

Unavailable

23

COLLAR

90387-06065-00

Unavailable

24

BOLT, FLANGE

90105-06111-00

Unavailable

25

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

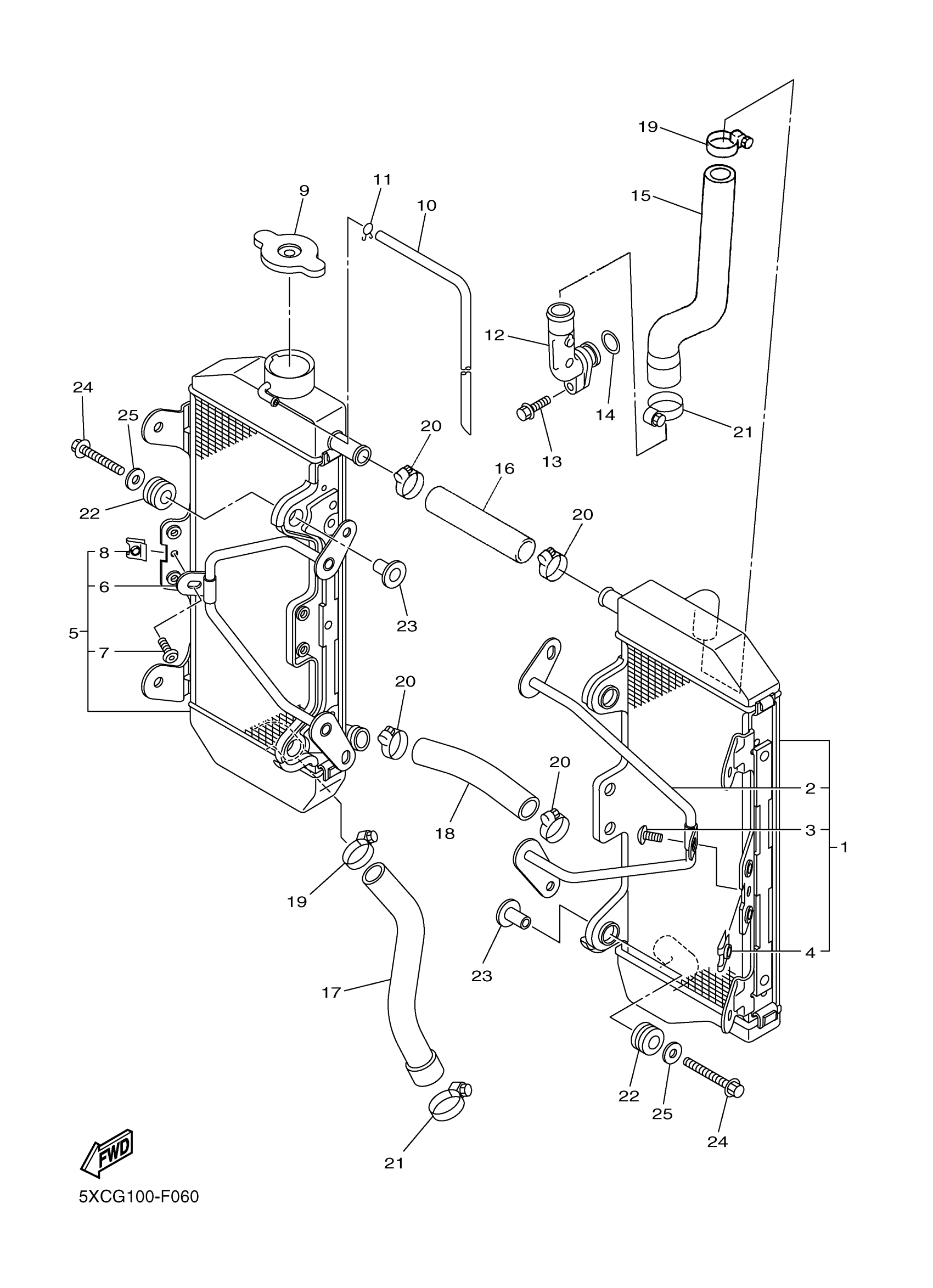

Yamaha YZ250FW (YZ250F) 5XCG 2007 RADIATOR HOSE Diagram

RADIATOR ASSY

STAY, RADIATOR

BOLT, BUTTON HEAD

NUT, SPRING

RADIATOR ASSY

STAY, RADIATOR

BOLT, BUTTON HEAD

NUT, SPRING

CAP, RADIATOR

TUBE, FLEXIBLE VINYL(8AK)

CLIP

PIPE 1

BOLT,SOCKET HEAD

. O-RING

HOSE 1

PIPE 2

HOSE 3

HOSE 4

HOSE CLAMP ASSY(64X)

HOSE CLAMP ASSY

HOSE CLAMP ASSY

GROMMET(3RB)

COLLAR

BOLT, FLANGE

WASHER, PLATE (583 REAR FENDER
