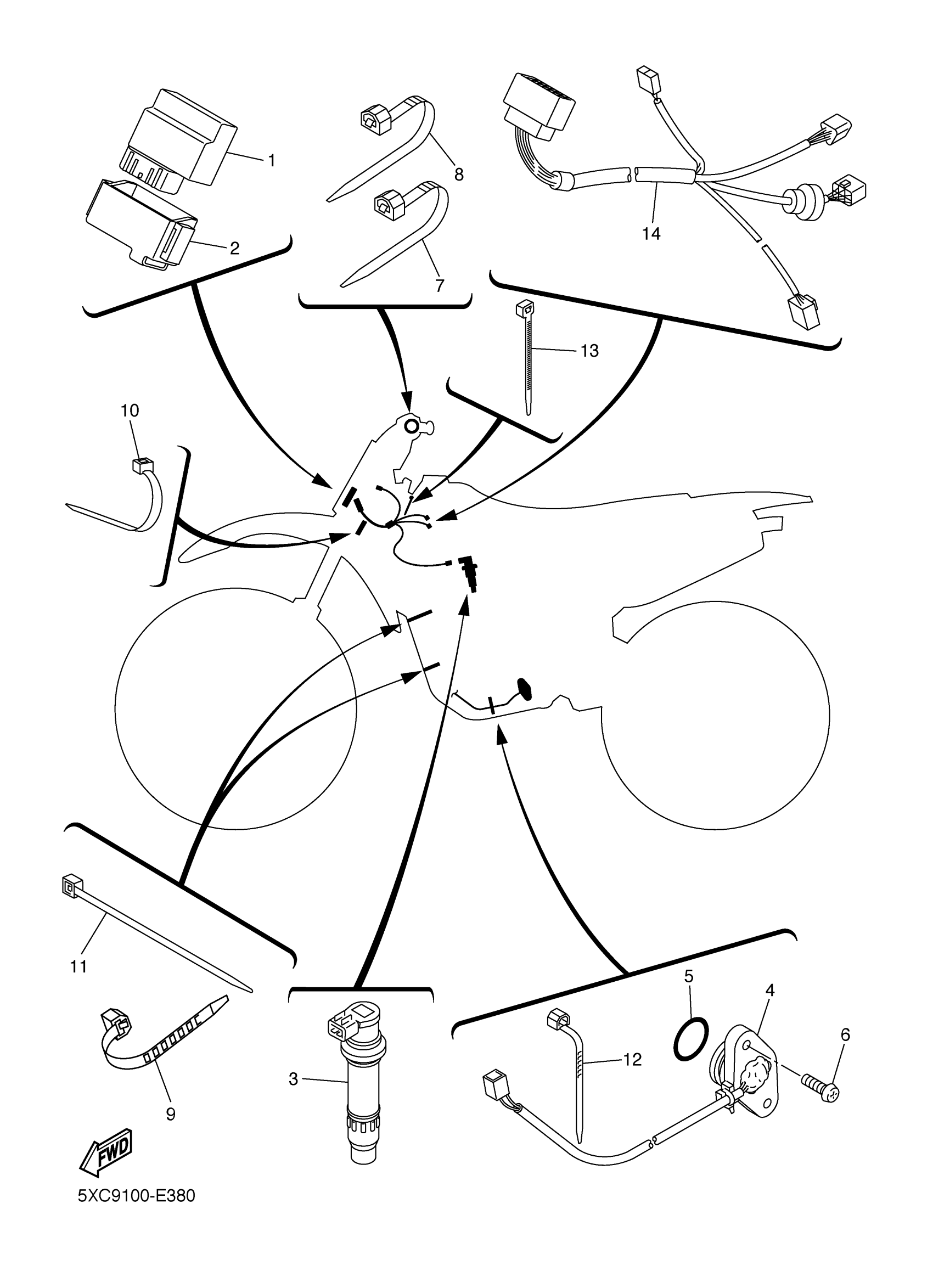

Yamaha YZ250FW (YZ250F) 5XCG 2007 ELECTRICAL 1 Diagram

#

Description

Price

1

C.D.I. UNIT ASSY

5XC-85540-G0-00

Unavailable

2

BAND

1C3-85546-00-00

Unavailable

3

IGNITION COIL ASSY

5UL-82310-10-00

$171.99

4

NEUTRAL SWITCH ASSY

5XC-82540-00-00

$93.99

5

O-RING

93210-21001-00

$5.60

6

SCREW, BIND

98902-05014-00

$1.71

7

CLAMP

90464-13077-00

$8.49

8

CLAMP(4FM)

90464-15195-00

$4.41

9

CLAMP(4FM)

90464-15195-00

$4.41

10

CLAMP

5Y9-12491-00-00

$6.99

11

CLAMP(MF1)

90464-15152-00

$5.60

12

CLAMP

5Y9-12491-00-00

$6.99

13

CLAMP(MF1)

90464-15152-00

$5.60

14

WIRE, SUB LEAD

5XC-82509-00-00

Unavailable
