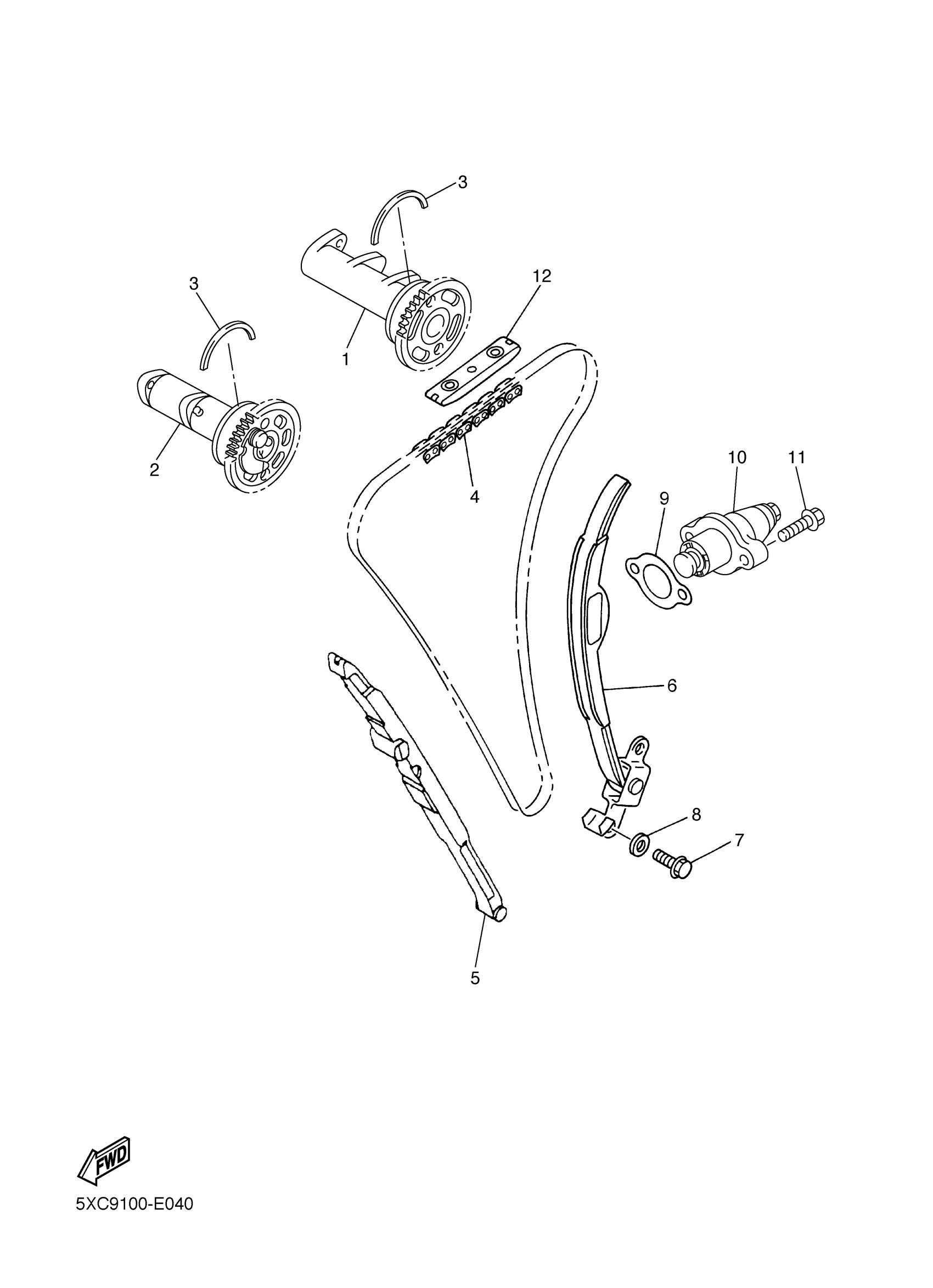

Yamaha YZ250FW (YZ250F) 5XCG 2007 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5UL-12170-10-00

Unavailable

2

CAMSHAFT ASSY 2

5UL-12180-10-00

$323.46

3

CIRCLIP

93440-41178-00

$3.18

4

CHAIN

94591-53114-00

$26.67

5

DAMPER, CHAIN 1

5NL-12251-11-00

Unavailable

6

DAMPER, CHAIN 2

5NL-12252-01-00

Unavailable

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

8

WASHER, PLAIN (646)

92990-06600-00

$1.84

9

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

10

TENSIONER ASSY CAM CHAIN

5TA-12210-21-00

Unavailable

11

BOLT, FLANGE

95022-06025-00

$1.37

12

GUIDE, STOPPER 2

5BE-12241-01-00

$23.85
