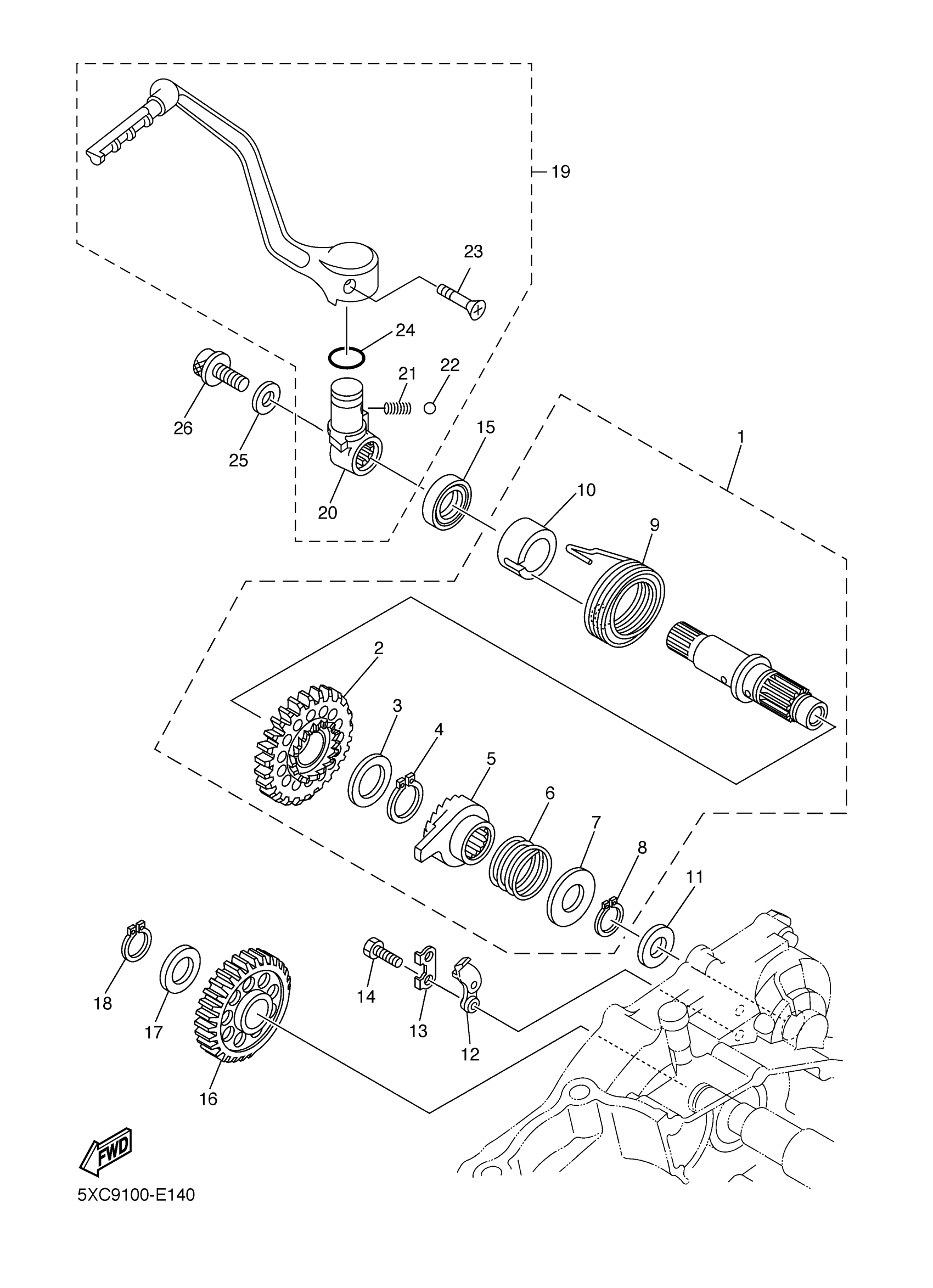

Yamaha YZ250FV (YZ250F) 5XC9 2006 STARTER Diagram

#

Description
Price

1

KICK SHAFT ASSY

5NL-15601-10-00

Unavailable

2

GEAR, KICK

5NL-15641-10-00

Unavailable

3

WASHER, PLATE (2K7)

90201-20685-00

$7.49

4

CIRCLIP (525)

93410-20038-00

$3.76

5

WHEEL, RATCHET

4GY-15671-00-00

$89.99

6

SPRING, COMPRESSION

90501-16016-00

$5.60

7

WASHER, PLATE(4GL)

90201-167P7-00

$9.49

8

CIRCLIP(13T)

99009-16400-00

$5.60

9

SPRING, TORSION(2VM)

90508-30743-00

$18.99

10

GUIDE, SPRING

5NL-15664-00-00

$13.49

11

WASHER, PLATE (25H)

90201-162H4-00

$9.49

12

STOPPER

5SG-15668-00-00

Unavailable

13

WASHER, LOCK

214-15686-00-00

$7.99

14

BOLT, HEXAGON

97017-06016-00

$8.49

15

OIL SEAL (22U)

93102-18278-00

$12.49

16

GEAR, KICK IDLE

5NL-15651-00-00

Unavailable

17

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

18

CIRCLIP(1EY)

99009-17400-00

Unavailable

19

KICK CRANK ASSY

5XC-15620-01-00

Unavailable

20

BOSS, KICK CRANK

5XC-15621-00-00

Unavailable

21

SPRING, COMPRESSION

90501-147A5-00

Unavailable

22

BALL (12R)

93507-32031-00

Unavailable

23

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

24

O-RING(36Y)

93210-17570-00

Unavailable

25

WASHER, PLATE

90201-08048-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD

90110-08052-00

Unavailable
