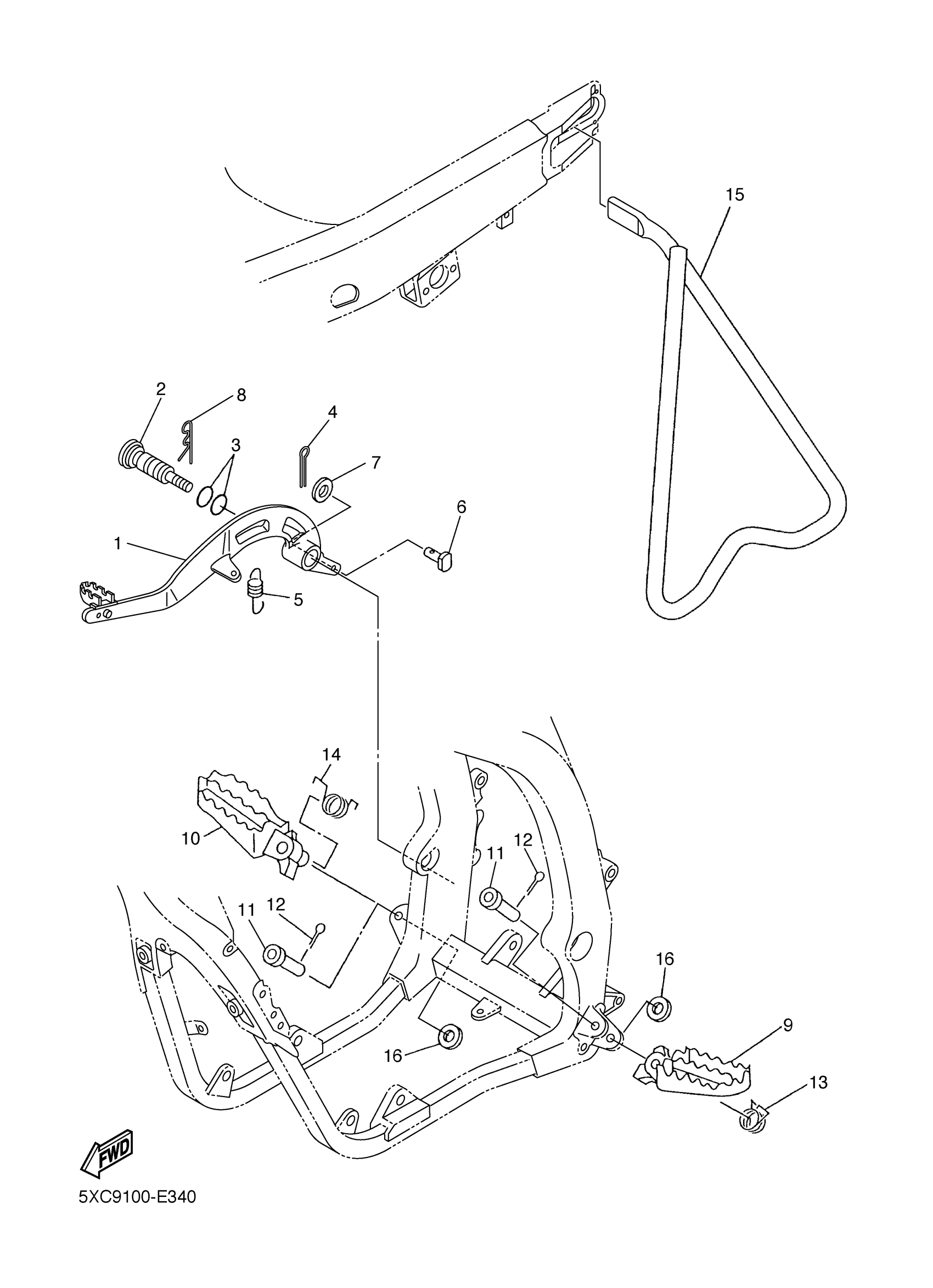

Yamaha YZ250FV (YZ250F) 5XC9 2006 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

5UM-27200-01-00

Unavailable

2

BOLT

5XC-27217-90-00

$30.99

3

O-RING (P95)

93210-11073-00

$7.49

4

PIN, COTTER (648)

91490-20015-00

$2.20

5

SPRING, TENSION

90506-16007-00

$8.49

6

PIN, CLEVIS(2VM)

90240-08120-00

$13.49

7

WASHER, PLATE

90201-08044-00

$8.49

8

CLIP

90468-16001-00

$5.60

9

FOOTREST 1

5XE-27411-02-00

Unavailable

10

FOOTREST 2

5XE-27421-02-00

Unavailable

11

PIN, CLEVIS

90240-10004-00

$13.99

12

PIN, COTTER

91490-25020-00

$3.19

13

SPRING, TORSION

90508-28015-00

$9.49

14

SPRING, TORSION

90508-28018-00

$7.49

15

STAND, SIDE

1C3-27311-00-00

$86.99

16

WASHER, PLATE

90201-10032-00

Unavailable
