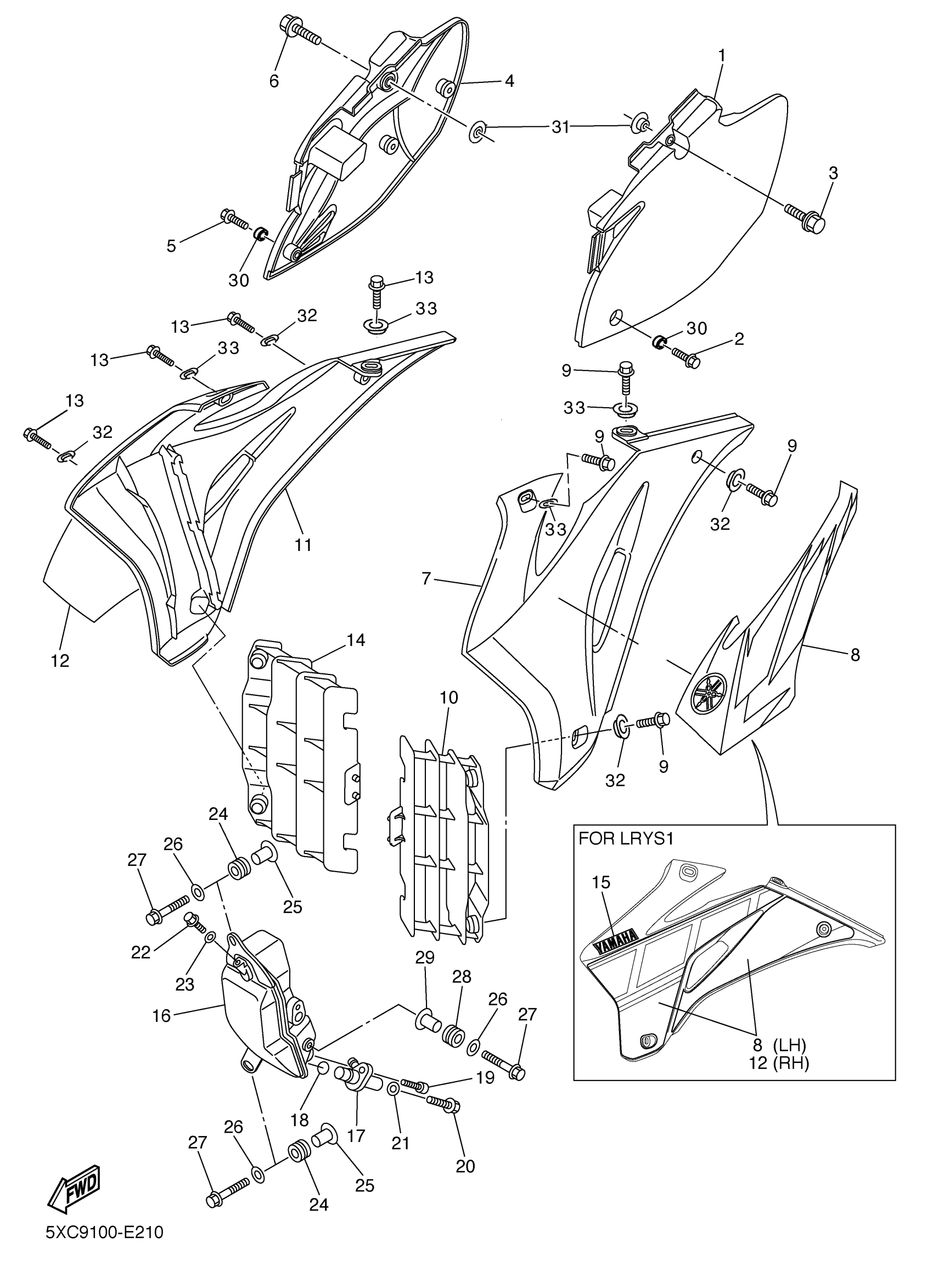

Yamaha YZ250FV (YZ250F) 5XC9 2006 SIDE COVER OIL TANK Diagram

#

Description
Price

1

SIDE COVER ASSY 1

5XC-21710-90-00

$29.99

2

BOLT, FLANGE

95814-06016-00

Unavailable

3

BOLT, WITH WASHER

90119-08095-00

$8.49

4

SIDE COVER ASSY 2

5XC-21720-90-00

$33.99

5

BOLT, FLANGE

95814-06016-00

Unavailable

6

BOLT, WITH WASHER

90119-08095-00

$8.49

7

SIDE COVER ASSY 3

5XC-21730-90-00

$32.99

7

SIDE COVER ASSY 3

5XC-21730-D0-00

Unavailable

8

GRAPHIC 1 (DEEP PURPLISH BLUE SOLID E)

5XC-2173E-01-00

Unavailable

8

GRAPHIC SET 1

5XC-2173L-01-00

Unavailable

9

BOLT, FLANGE

90105-06064-00

Unavailable

10

PANEL 1

5XC-2172A-90-00

Unavailable

11

SIDE COVER ASSY 4

5XC-21740-90-00

$29.99

11

SIDE COVER ASSY 4

5XC-21740-D0-00

Unavailable

12

GRAPHIC 2 (DEEP PURPLISH BLUE SOLID E)

5XC-2173F-01-00

Unavailable

12

GRAPHIC SET 2

5XC-2174L-01-00

Unavailable

13

BOLT, FLANGE

90105-06064-00

Unavailable

14

PANEL 1

5XC-2172A-90-00

Unavailable

15

EMBLEM, YAMAHA

4ES-2153E-21-00

Unavailable

16

TANK, OIL

5XC-21751-90-00

Unavailable

17

PIPE, OIL 1

5XC-13416-90-00

Unavailable

18

O-RING (2H9)

93210-14369-00

Unavailable

19

BOLT(3MA)

91312-06016-00

Unavailable

20

BOLT, FLANGE

95022-08012-00

Unavailable

21

WASHER, PLATE (4L0)

90201-082A6-00

Unavailable

22

BOLT, FLANGE

95817-06012-00

Unavailable

23

WASHER, PLATE (1L9)

90201-06630-00

Unavailable

24

GROMMET (4N0)

90480-10289-00

Unavailable

25

COLLAR(4BH)

90387-066Y6-00

Unavailable

26

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

27

BOLT, FLANGE

95022-06025-00

Unavailable

28

GROMMET(1JK)

90480-14433-00

Unavailable

29

COLLAR 437216330000

90387-07391-00

Unavailable

30

COLLAR

5BE-21749-00-00

Unavailable

31

COLLAR

90387-06009-00

Unavailable

32

COLLAR

5TA-21749-00-00

Unavailable

33

COLLAR

5XC-21749-90-00

Unavailable
