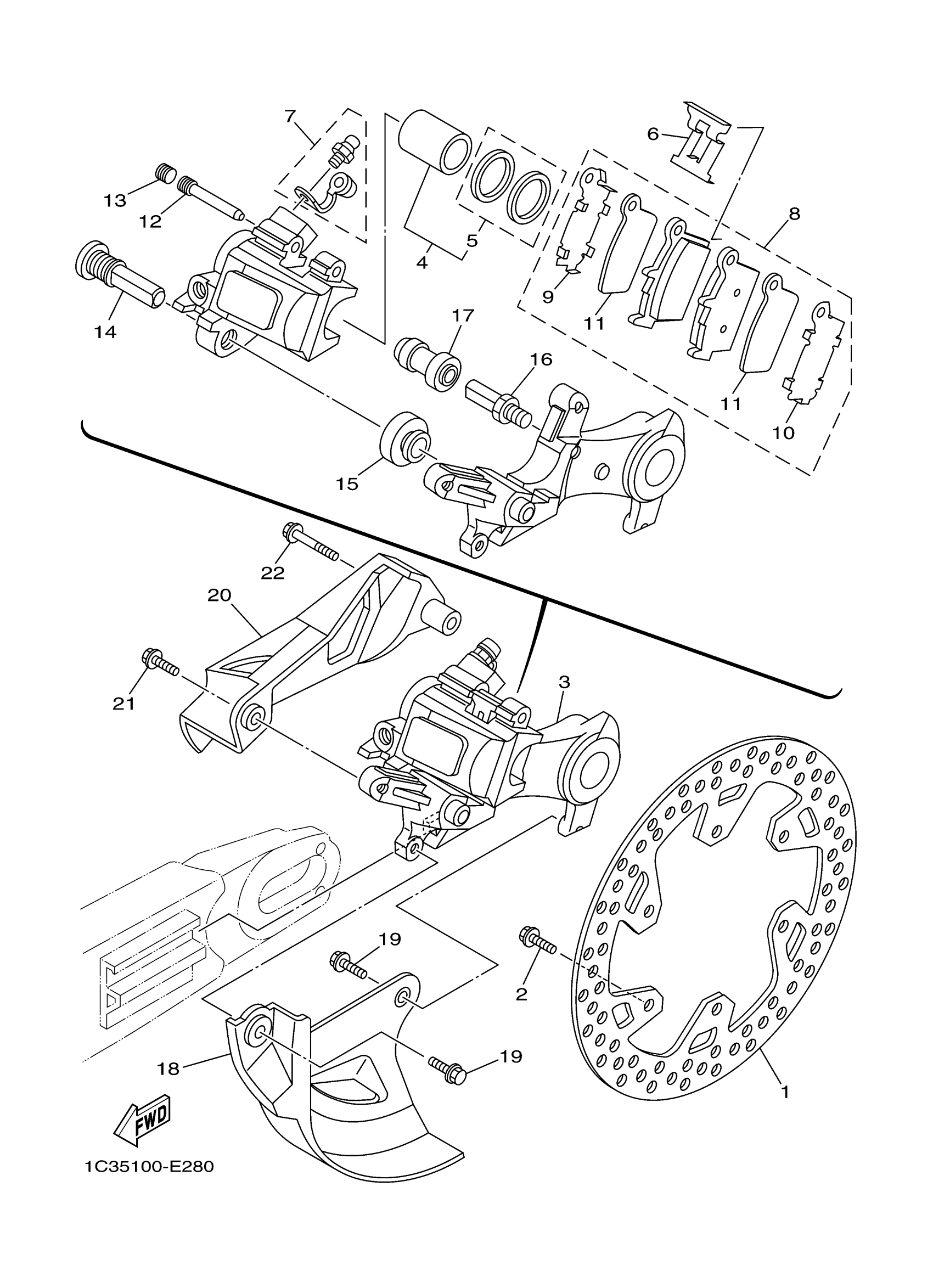

Yamaha YZ250FV (YZ250F) 5XC9 2006 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

5NY-2582W-00-00

Unavailable

2

BOLT, FLANGE

90105-06109-00

$9.49

3

CALIPER ASSY, REAR 2

1C3-2580W-52-00

$384.99

4

PISTON ASSY, CALIPER

5UN-W0057-50-00

$57.99

5

CALIPER SEAL KIT

5UN-W0047-50-00

$16.49

6

SUPPORT, PAD

5DH-25919-50-00

$20.99

7

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

8

BRAKE PAD KIT 2

1C3-W0046-50-00

$45.99

9

.. SHIM, CALIPER

5UN-25828-60-00

Unavailable

10

SHIM, CALIPER

5UN-25827-60-00

$15.49

11

INSULATOR, HEAT

5UN-22898-60-00

$19.99

12

PIN, PAD

8CR-25924-00-00

$14.49

13

PLUG

5DH-25916-00-00

$9.99

14

PIN, SLIDE

5DH-25914-50-00

$22.99

15

BOOT, CALIPER

3JD-25917-00-00

$8.99

16

PIN, SLIDE

5UN-25914-00-00

Unavailable

17

BOOT 2

1UY-25937-51-00

Unavailable

18

PROTECTOR, DISK BRAKE

1C3-25718-50-00

Unavailable

19

BOLT, FLANGE

95022-06012-00

Unavailable

20

PROTECTOR

1C3-27491-50-00

Unavailable

21

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

22

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable
