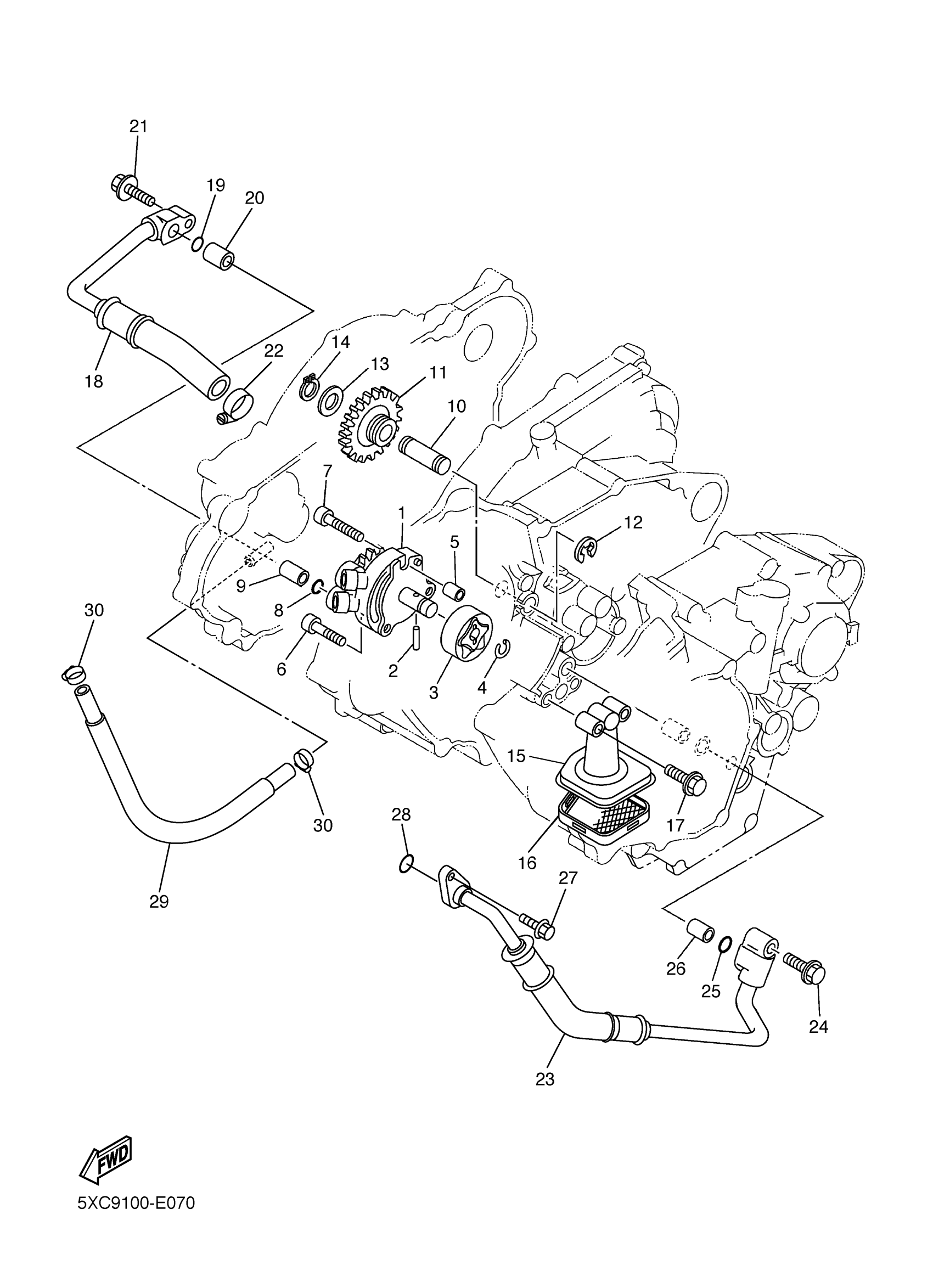

Yamaha YZ250FV (YZ250F) 5XC9 2006 OIL PUMP Diagram

OIL PUMP ASSY

5SG-13300-01-00

$167.99

PIN, DOWEL(1HX)

93603-16219-00

$8.49

ROTOR ASSY 2

5NL-13320-00-00

$47.99

CIRCLIP(1WG)

93440-10153-00

$2.39

PIN, DOWEL

99530-08012-00

Unavailable

BOLT,SOCKET

91317-06025-00

$5.60

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

O-RING (371)

93210-10197-00

$7.49

PIN, DOWEL(3VD)

99530-10114-00

$2.55

SHAFT, IDLE GEAR

5BE-13342-00-00

$22.99

GEAR, OIL PUMP IDLE

5NL-13341-00-00

Unavailable

CIRCLIP(2R6)

99001-08600-00

$8.49

WASHER PLATE 164185720000

90201-12166-00

$9.49

CIRCLIP(10Y)

99009-12400-00

$3.59

HOUSING, STRAINER

5XC-13412-00-00

Unavailable

STRAINER, OIL

5NL-13411-00-00

Unavailable

BOLT, FLANGE

95022-06025-00

Unavailable

HOSE, OIL 1

5XC-13464-10-00

Unavailable

O-RING (371)

93210-10197-00

$7.49

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, FLANGE

95022-06025-00

Unavailable

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

HOSE, OIL 2

5XC-13465-10-00

Unavailable

BOLT, FLANGE

95022-06025-00

Unavailable

O-RING (371)

93210-10197-00

$7.49

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, FLANGE

95022-06016-00

Unavailable

O-RING (1J7)

93210-09350-00

Unavailable

HOSE (L330)

90445-14010-00

Unavailable

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable
