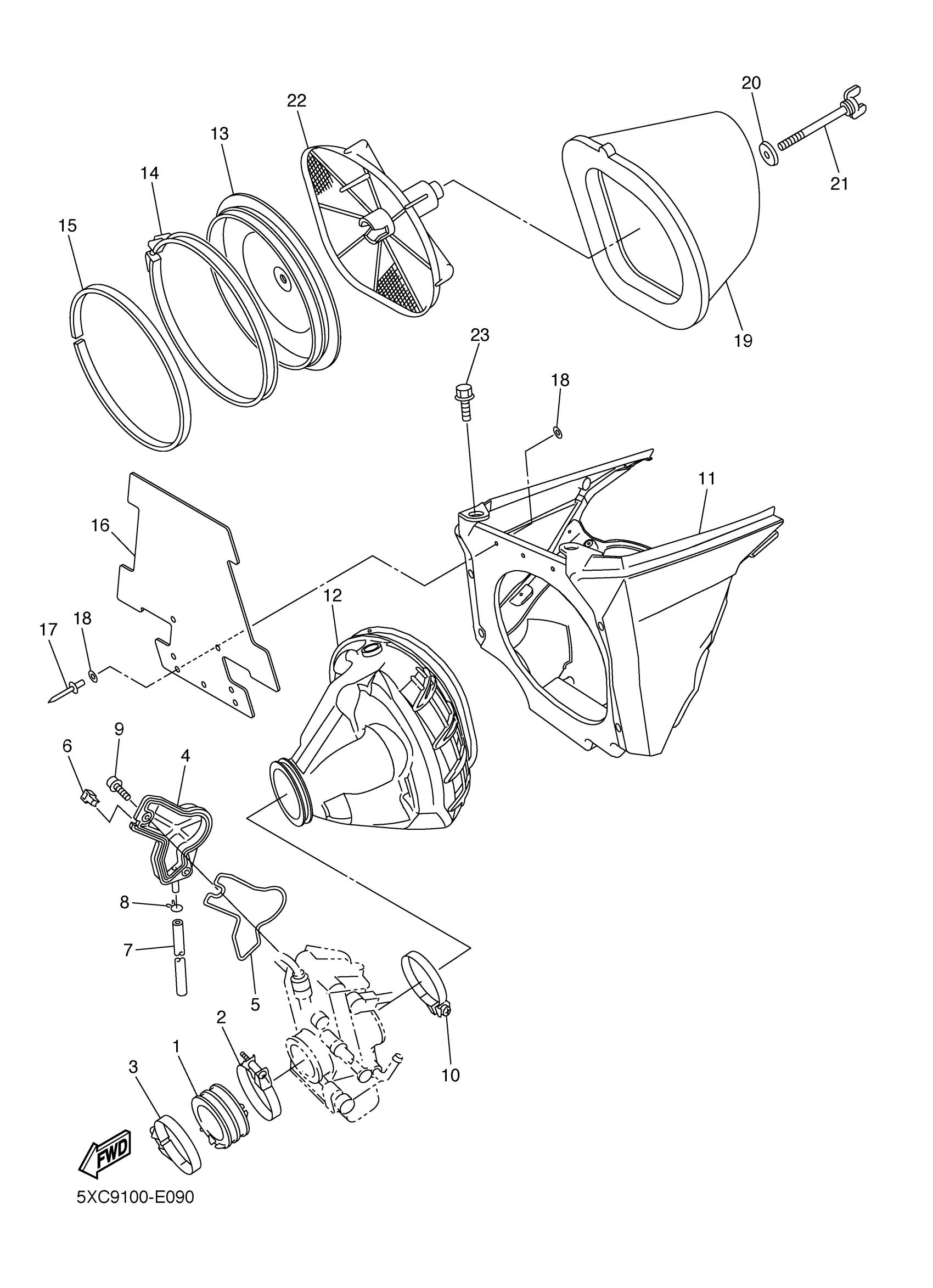

Yamaha YZ250FV (YZ250F) 5XC9 2006 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 3

5XC-13597-20-00

$17.49

2

HOSE CLAMP ASSY

90450-57010-00

$20.99

3

HOSE CLAMP ASSY

90450-54009-00

$11.49

4

COVER 1

5TA-14293-00-00

$42.99

5

GASKET

5TA-14227-00-00

$34.99

6

SEAL

5TA-14239-00-00

$19.99

7

HOSE

5TA-14987-00-00

$16.49

8

CLIP

3TJ-14137-40-00

$7.99

9

BOLT

5TA-14428-00-00

$4.94

10

HOSE CLAMP ASSY

90450-61002-00

$16.99

11

AIR CLEANER CASE ASSY

2S2-14401-70-00

$125.99

12

JOINT, AIR CLEANER 1

5XC-14453-90-00

Unavailable

13

HOLDER, GUIDE

5NY-14459-00-00

$37.99

14

BAND

5NY-14455-20-00

$40.99

15

SPACER

5NY-14442-00-00

$23.99

16

COVER 1

5XC-14417-90-00

Unavailable

17

RIVET (813)

90267-32070-00

Unavailable

18

WASHER, PLATE 8077743700

90201-03313-00

Unavailable

19

ELEMENT, AIR CLEANER

4XM-14451-01-00

Unavailable

20

WASHER (4H7)

90209-06096-00

Unavailable

21

BOLT, WING

90122-06005-00

Unavailable

22

GUIDE

5BE-14458-10-00

Unavailable

23

BOLT(4EW)

90109-067F4-00

Unavailable
