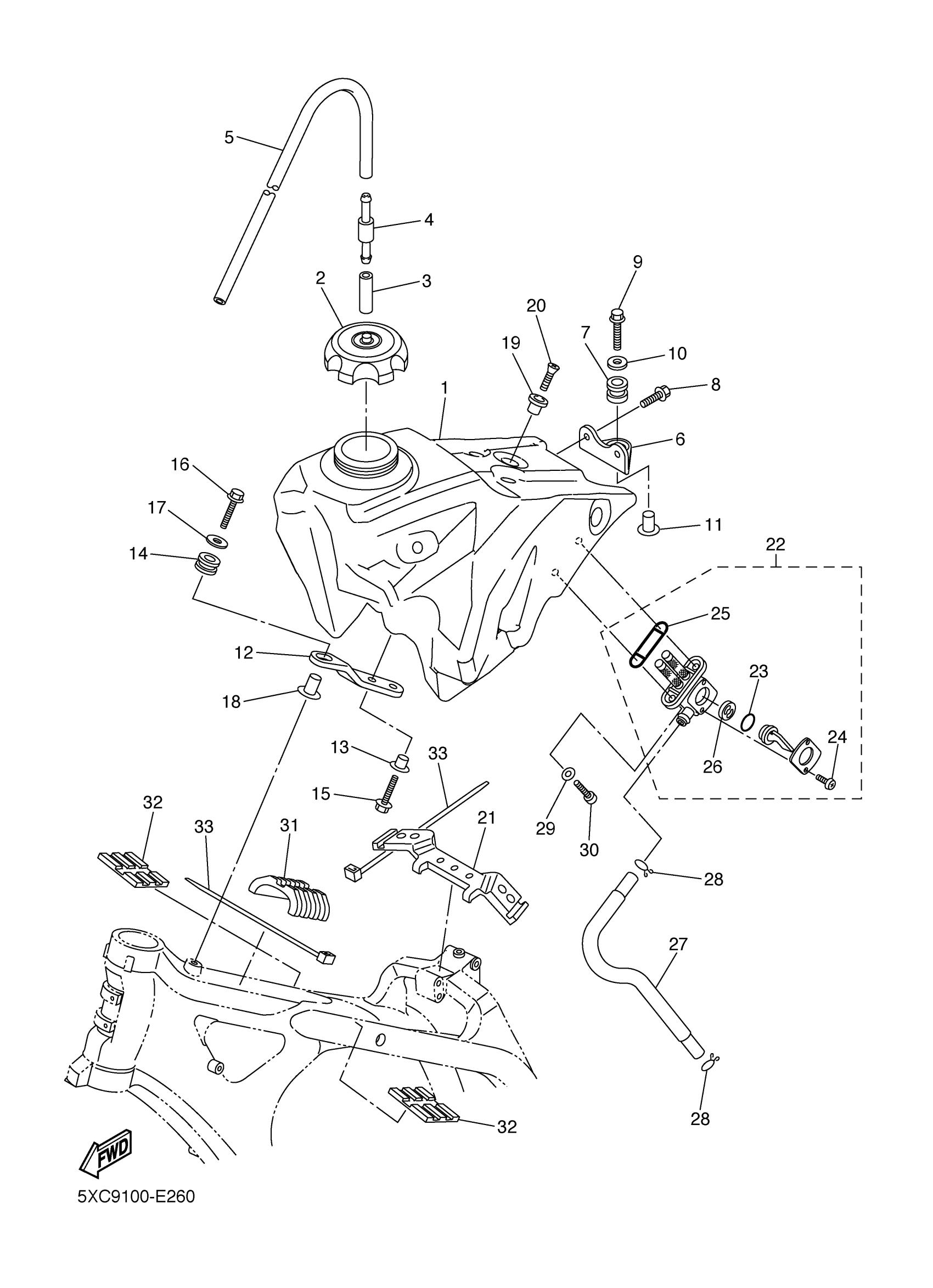

Yamaha YZ250FV (YZ250F) 5XC9 2006 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK COMP.
2S2-24110-70-00
Unavailable
18
COLLAR
90387-06065-00
Unavailable
19
BRACKET, SEAT
4EW-2412F-00-00
Unavailable
20
SCREW, FLAT
98707-06025-00
Unavailable
21
DAMPER, LOCATING 1
5XC-24181-90-00
Unavailable
22
FUEL COCK ASSY 1
4JT-24500-20-00
Unavailable
23
SEAL, COCK
3AJ-24534-01-00
Unavailable
24
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
25
O-RING
4X8-24512-00-00
Unavailable
26
VALVE PACKING
3AC-24523-00-00
Unavailable
27
PIPE, FUEL 1
5XC-24311-90-00
Unavailable
28
CLIP
90467-100A1-00
Unavailable
29
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
30
SCREW 256241430000
90149-06011-00
Unavailable
31
DAMPER, LOCATING 2
5XC-24182-90-00
Unavailable
32
DAMPER, LOCATING 3
5XC-24183-90-00
Unavailable
33
CLAMP(MF1)
90464-15152-00
Unavailable
