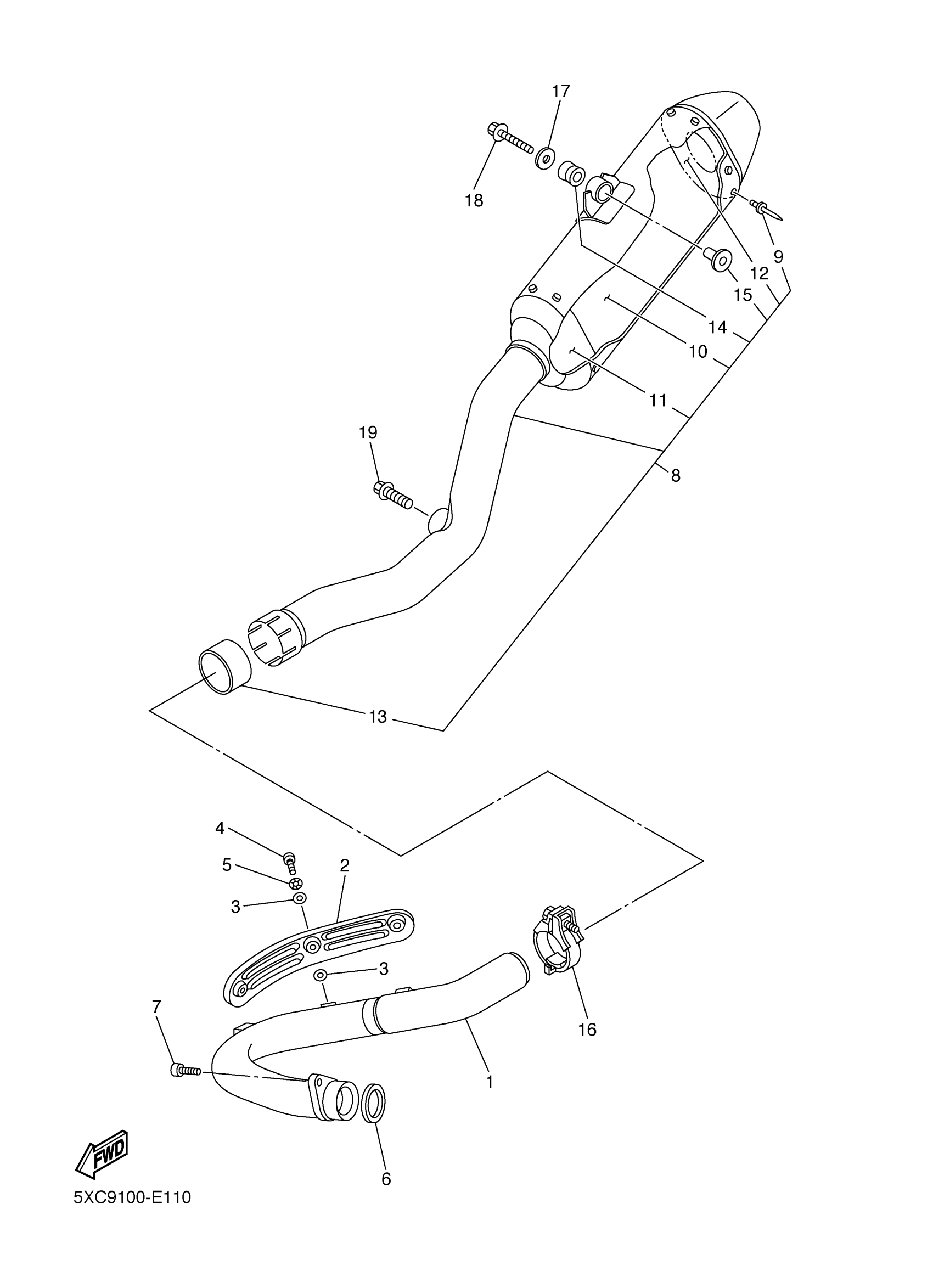

Yamaha YZ250FV (YZ250F) 5XC9 2006 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

5XC-14611-10-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

5XC-14628-00-00

$92.99

3

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

4

SCREW, BIND(2TV)

98980-06008-00

$3.19

5

WASHER, WAVE(3RW)

90206-06090-00

$8.49

6

GASKET, EXHAUST PIPE

5NL-14613-00-00

$14.49

7

BOLT,SOCKET

91314-08020-00

$8.49

8

SILENCER ASSY

5XC-14750-30-00

Unavailable

9

. RIVET, BLIND

90267-48084-00

Unavailable

10

FIBER

5XC-1469A-00-00

Unavailable

11

FIBER

2S2-1469E-00-00

Unavailable

12

FIBER

2S2-1469F-00-00

$30.99

13

GASKET, MUFFLER

5XD-14714-00-00

$30.99

14

DAMPER, MUFFLER

5BE-14747-00-00

$10.99

15

COLLAR

90387-08081-00

$8.49

16

BAND, SILENCER

5BE-14788-00-00

Unavailable

17

WASHER, PLATE

90201-08008-00

Unavailable

18

BOLT, FLANGE

95817-08035-00

Unavailable

19

BOLT, FLANGE

90105-08085-00

Unavailable
