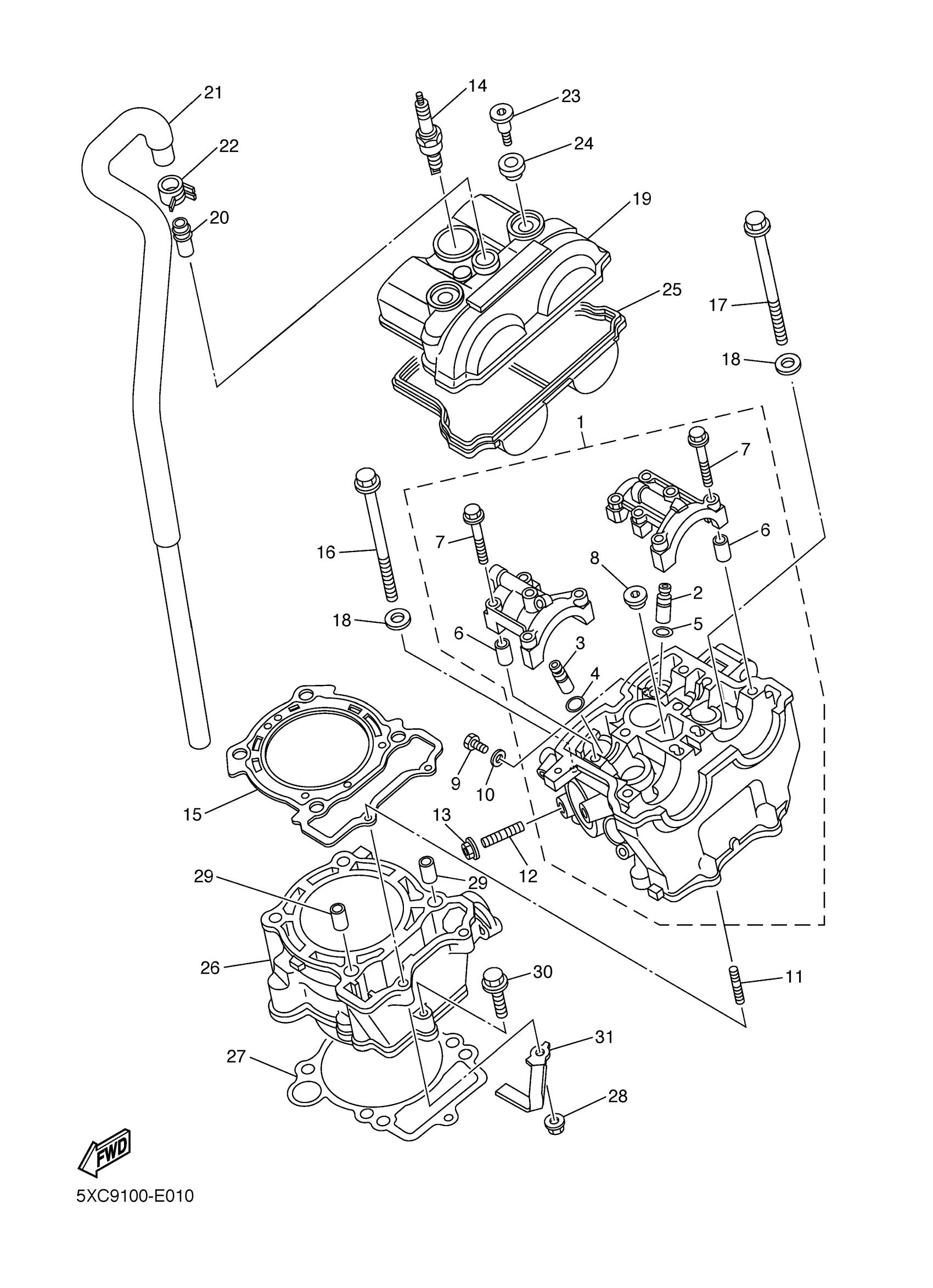

Yamaha YZ250FV (YZ250F) 5XC9 2006 CYLINDER Diagram

CYLINDER HEAD ASSY

5XC-11102-03-00

Unavailable

GUIDE, INTAKE VALVE

5NL-11133-10-00

$44.99

GUIDE, EXHAUST VALVE

5NL-11134-10-00

$44.99

CIRCLIP(1WG)

93440-10153-00

$2.39

CIRCLIP(1HX)

93440-07149-00

$8.49

PIN, DOWEL(3XW)

91808-16023-00

$8.49

BOLT, WASHER BASED

90105-06027-00

$7.49

PLUG, STRAIGHT SCREW(1HX)

90340-12112-00

Unavailable

BOLT, FLANGE

95022-06010-00

$5.60

GASKET 256113960000

90430-06014-00

Unavailable

BOLT, STUD(3MA)

90116-06541-00

$9.49

BOLT, STUD

95612-08620-00

$7.49

NUT,FLANGE(J10)

95702-08500-00

$1.43

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

GASKET, CYLINDER HEAD 1

5NL-11181-00-00

Unavailable

BOLT, FLANGE

90105-09004-00

Unavailable

BOLT, WASHER BASED

90105-09002-00

Unavailable

WASHER, PLATE(1AA)

90201-096J9-00

Unavailable

COVER, CYLINDER HEAD 1

5NL-11191-20-00

Unavailable

PIPE, BREATHER 2

371-11167-01-00

Unavailable

PIPE, BREATHER 1

5TA-11166-00-00

Unavailable

CLIP (371)

90467-14015-00

Unavailable

BOLT(4BP)

90109-066F0-00

Unavailable

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

GASKET, HEAD COVER 1

5NL-11193-00-00

Unavailable

CYLINDER 1

5XC-11311-20-00

Unavailable

GASKET, CYLINDER

5NL-11351-00-00

Unavailable

NUT, FLANGE

95702-06500-00

Unavailable

PIN, DOWEL(4XL)

93612-16254-00

Unavailable

BOLT, FLANGE

95022-06035-00

Unavailable

CLAMP, HOSE 1

5UM-11387-00-00

Unavailable
