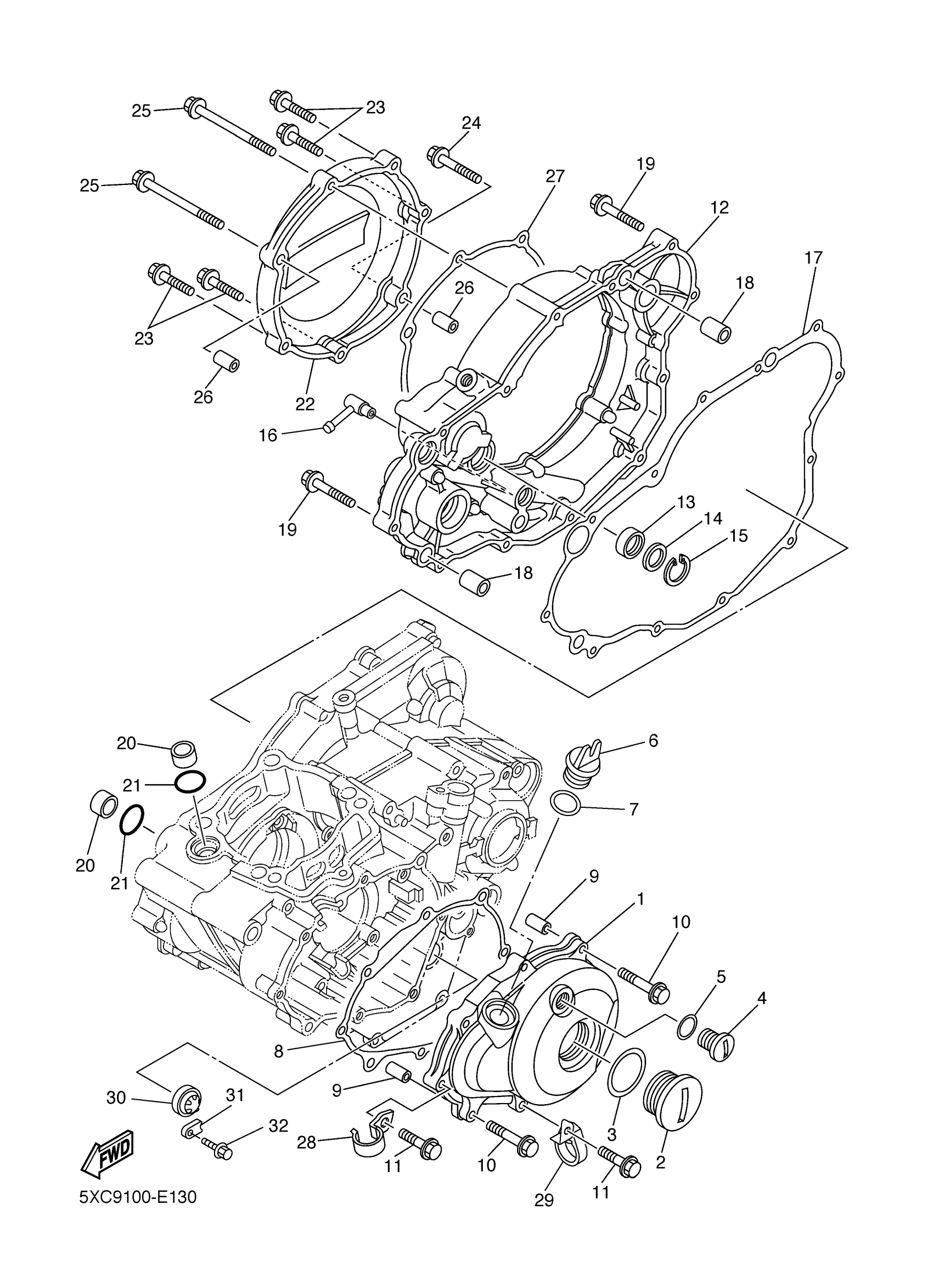

Yamaha YZ250FV (YZ250F) 5XC9 2006 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5NL-15411-10-00

Unavailable

2

PLUG, STRAIGHT SCREW(3AW)

90340-32123-00

$18.43

3

O-RING (341)

93210-32172-00

$5.39

4

PLUG, STRAIGHT SCREW(3RW)

90340-14128-00

$11.11

5

O-RING (2H9)

93210-14369-00

$5.42

6

PLUG, OIL

3Y1-15363-10-00

$15.94

7

O-RING (646)

93210-19123-00

Unavailable

8

GASKET, CRANKCASE COVER 1

5NL-15451-00-00

$18.69

9

PIN, DOWEL(3XW)

91808-16023-00

$5.26

10

BOLT, FLANGE

95022-06035-00

$2.78

11

BOLT, FLANGE

95022-06025-00

$1.37

12

COVER, CRANKCASE 3

5XC-15431-01-00

Unavailable

13

OIL SEAL(4GY)

93101-14164-00

$9.05

14

WASHER (566)

90201-15701-00

$5.75

15

CIRCLIP

99009-22500-00

$5.76

16

PIPE, BREATHER

5XC-15373-00-00

Unavailable

17

GASKET, CRANKCASE COVER 3

5NL-15462-00-00

Unavailable

18

PIN, DOWEL(J38)

91812-16001-00

Unavailable

19

BOLT, FLANGE

95022-06035-00

$2.78

20

PIPE, WATER

5NL-12564-00-00

Unavailable

21

O-RING (M124)

93210-16772-00

$1.33

21

O-RING (M124)

93210-16772-00

$1.33

22

COVER, GENERATOR

5NL-15415-00-00

Unavailable

23

BOLT, FLANGE

95022-06025-00

$1.37

24

BOLT, FLANGE

95022-06035-00

$2.78

25

BOLT, FLANGE

90105-06098-00

Unavailable

26

PIN, DOWEL(3XW)

91808-16023-00

$5.26

27

GASKET

5NL-15453-10-00

Unavailable

28

CLAMP

90465-08029-00

Unavailable

29

HOLDER

5XD-15378-00-00

Unavailable

30

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

31

HOLDER

5XC-15118-00-00

Unavailable

32

BOLT, FLANGE

95022-06012-00

Unavailable
