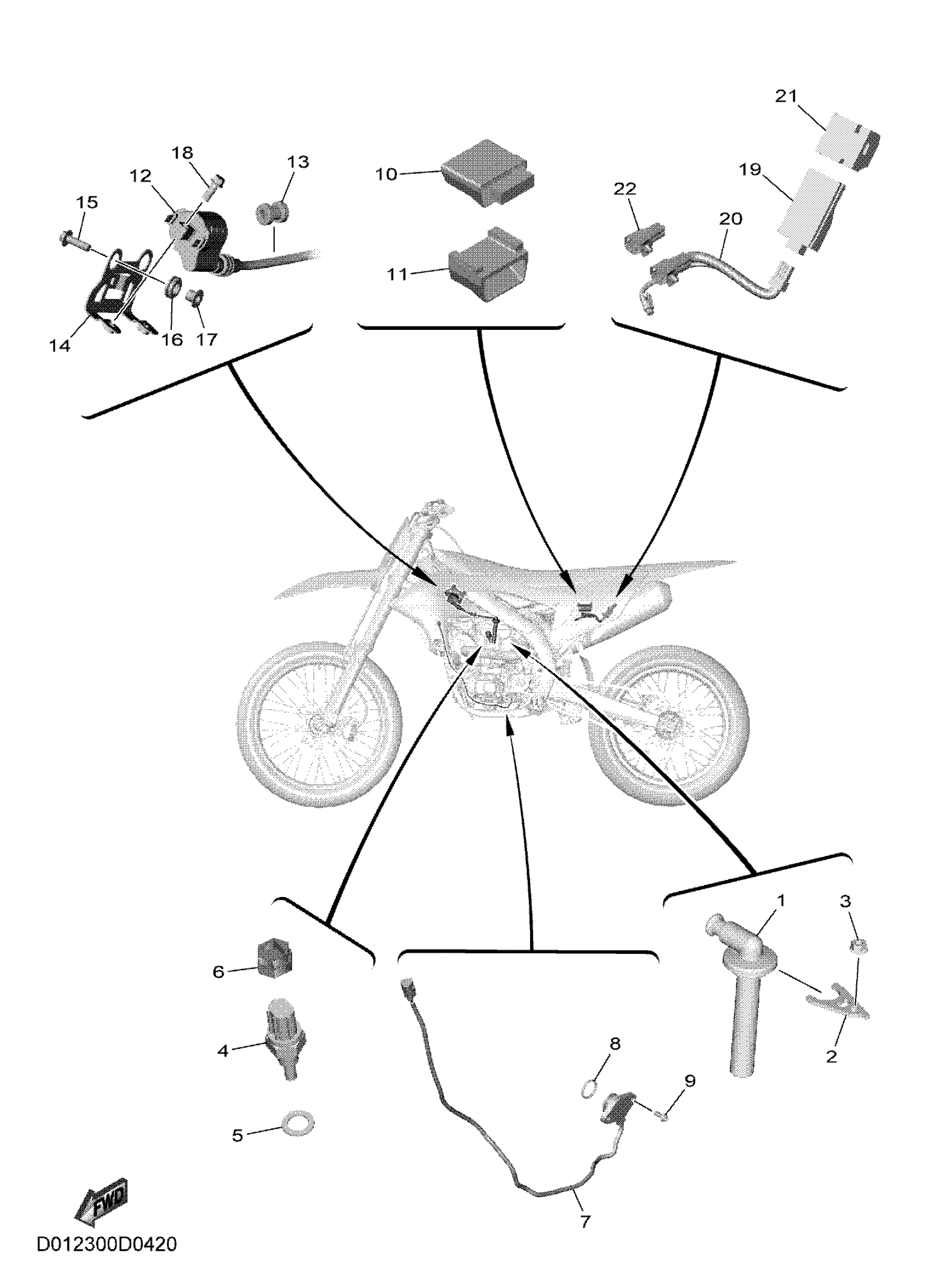

Yamaha YZ250FTSE (YZ250F 70TH ANNIVERSARY) DR87 2026 ELECTRICAL 1 Diagram

#

Description
Price

1

PLUG CAP ASSY

1SM-82370-01-00

$95.99

2

HOLDER

BR9-11395-00-00

$5.60

3

NUT, FLANGE

95702-06500-00

$2.39

4

THERMO UNIT

52B-H3591-00-00

$34.99

5

GASKET

90430-10004-00

$7.49

6

HOLDER, LEVER UNDER

B2W-82915-00-00

$7.49

7

NEUTRAL SWITCH ASSY

BMF-82540-01-00

$70.99

8

O-RING

93210-21001-00

$5.60

9

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$8.49

10

ENGINE CONTROL UNIT ASSY

DR8-8591A-00-00

Unavailable

11

BAND

BHR-82155-00-00

$31.99

12

IGNITION COIL ASSY

BHR-82310-00-00

Unavailable

13

GROMMET

90480-11015-00

$3.66

14

STAY, IGNITION COI

BHR-2194U-00-00

$21.99

15

BOLT, FLANGE

90105-06219-00

$2.12

16

GROMMET(2JG)

90480-14477-00

Unavailable

17

COLLAR

90387-06M79-00

Unavailable

18

BOLT, FLANGE DEEP RECESS

95E32-06016-00

Unavailable

19

COMMUNICATION CONT

D03-85810-00-00

Unavailable

20

WIRE, LEAD

BHR-85721-00-00

Unavailable

21

BAND

BHR-85546-00-00

Unavailable

22

CONNECTOR

BHR-82378-00-00

Unavailable
