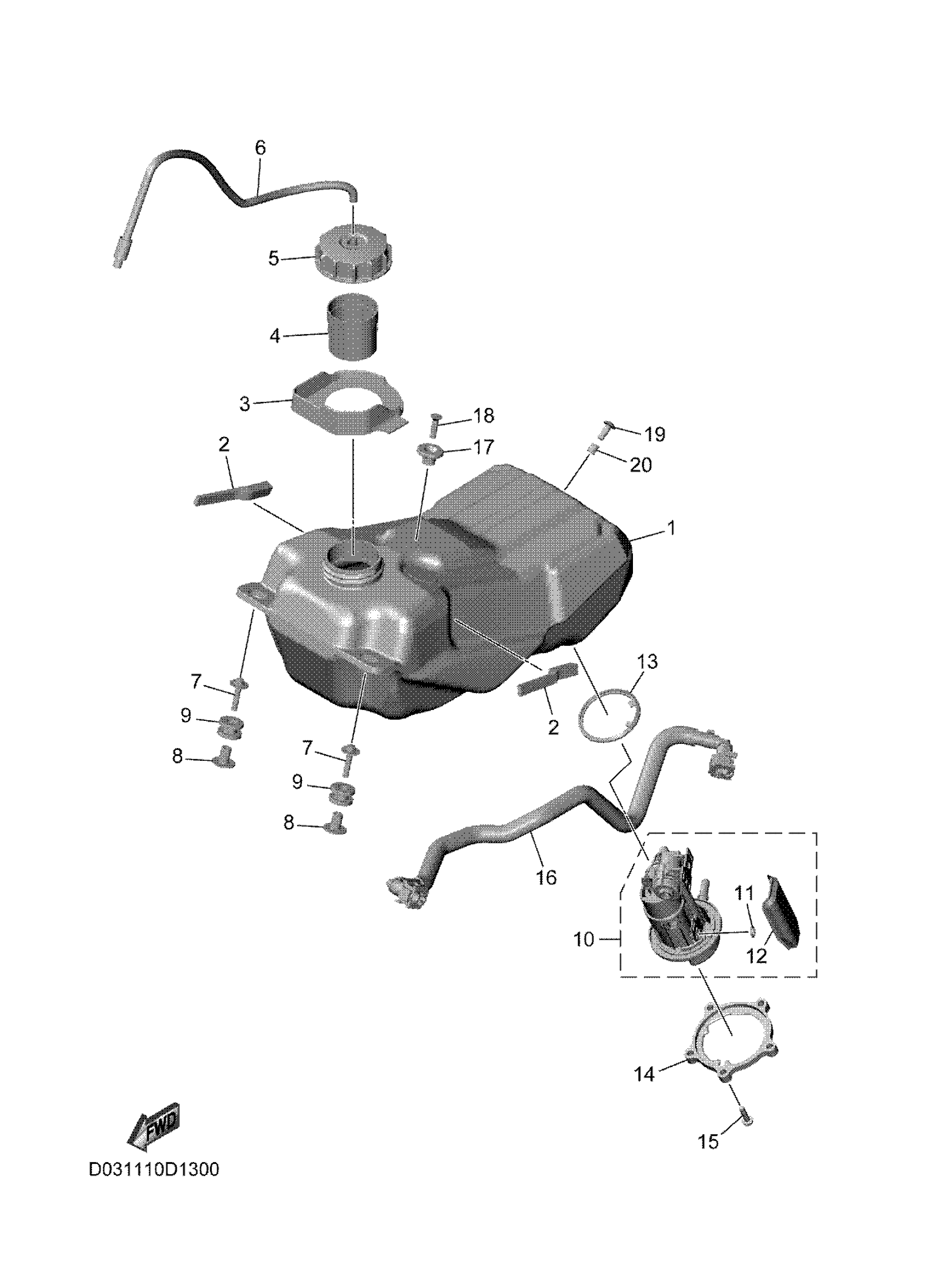

Yamaha YZ250FTL (YZ250F) DR81 2026 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BHR-24110-00-00

$323.99

2

DAMPER, PLATE

90520-10045-00

Unavailable

3

MOLD, FUEL TANK

BHR-24188-00-00

$39.21

4

TUBE, FILLER

BHR-24114-00-00

$14.64

5

CAP ASSY

BR9-24610-00-00

$61.59

6

HOSE

90445-08050-00

$7.08

7

BOLT, WITH WASHER

90119-06262-00

$5.86

8

COLLAR

90387-06065-00

$8.92

9

GROMMET

90480-14037-00

$14.29

10

FUEL PUMP COMP.

BHR-13907-00-00

Unavailable

11

GASKET

3C1-24512-00-00

$23.00

12

FILTER

B3J-13915-00-00

$24.20

13

SEAL

B3J-2414G-00-00

$14.85

14

BRACKET, FUEL PUMP

BHR-24491-00-00

$51.94

15

BOLT, HEXAGON SOCKET HEAD

90110-05058-00

$5.75

16

PIPE, FUEL 1

BMF-13971-00-00

Unavailable

17

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

18

SCREW, CROSSRECESS (8G6)

90151-06005-00

Unavailable

19

SCREW

90149-06021-00

Unavailable

20

COLLAR

90387-06284-00

Unavailable
