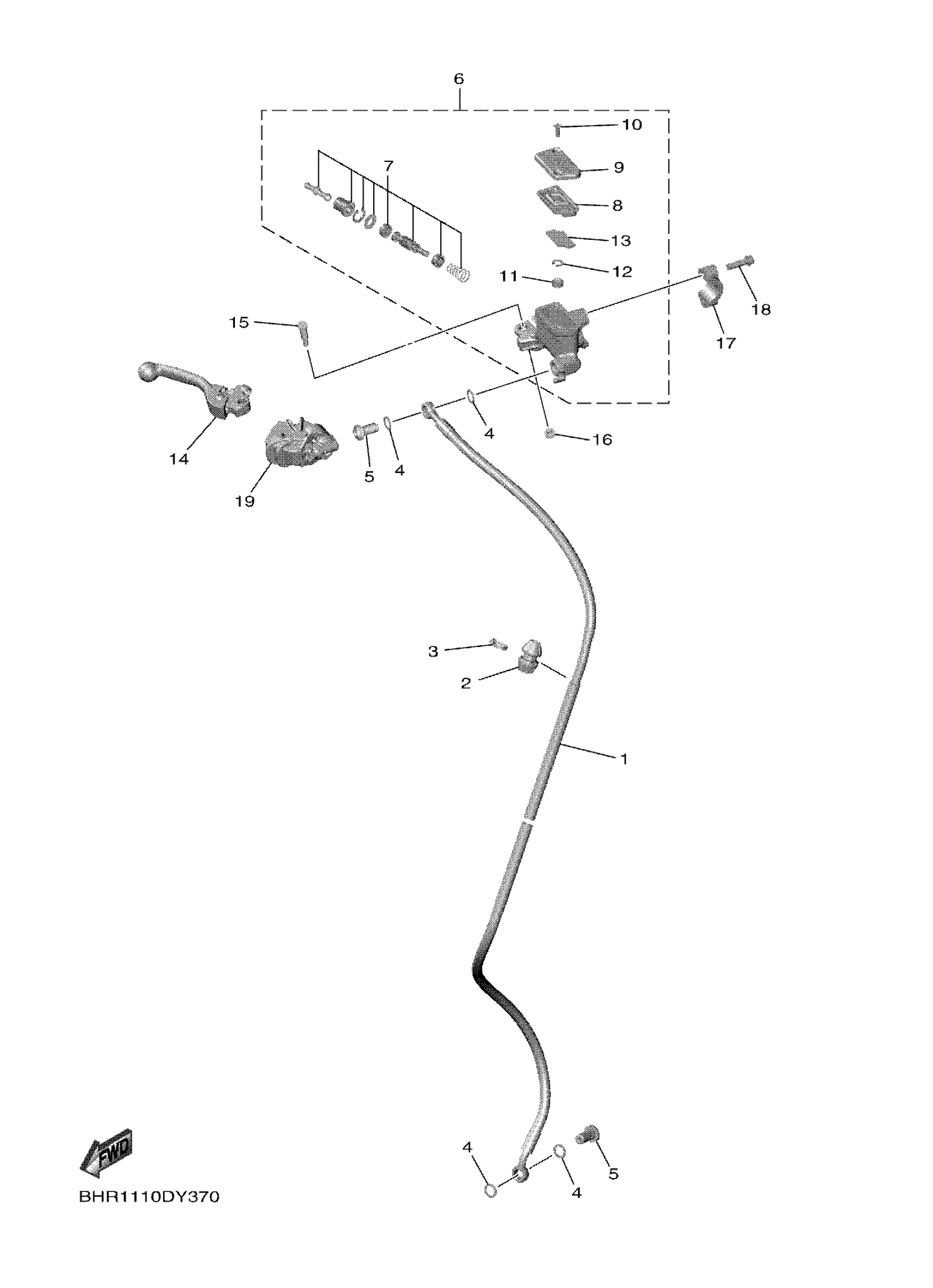

Yamaha YZ250FTL (YZ250F) DR81 2026 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, BRAKE 1

BHR-25872-00-00

$216.05

2

PROTECTOR, BRAKE HOSE

BHR-25881-00-00

$7.42

3

CLAMP

90465-10098-00

$1.68

4

GASKET

90430-10005-00

$6.57

5

BOLT, UNION

90401-10172-00

$3.46

6

MASTER CYLINDER SUB ASSY

5XC-W2587-00-00

$237.85

7

CYLINDER KIT, MASTER

5XC-W0041-00-00

$49.64

8

DIAPHRAGM, RESERVOIR

5XC-25854-G0-00

$11.30

9

CAP, RESERVOIR

5XC-25852-G0-00

$20.26

10

SCREW, FLAT

98707-04012-00

$1.34

11

SEPARATOR ASSY

5CG-25715-00-00

$9.87

12

CIRCLIP

5CG-2585G-00-00

$4.70

13

FLOAT, RESERVOIR

5XC-25853-G0-00

$4.70

14

LEVER 2

B2W-83922-00-00

$34.82

15

BOLT, LEVER

5MV-2589F-00-00

$5.03

16

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

17

BRACKET, MASTER CYLINDER

5MV-25867-00-00

Unavailable

18

BOLT, FITTING

5MV-25833-00-00

Unavailable

19

COVER, HANDLE LEVER 1

5XC-26372-G0-00

Unavailable
