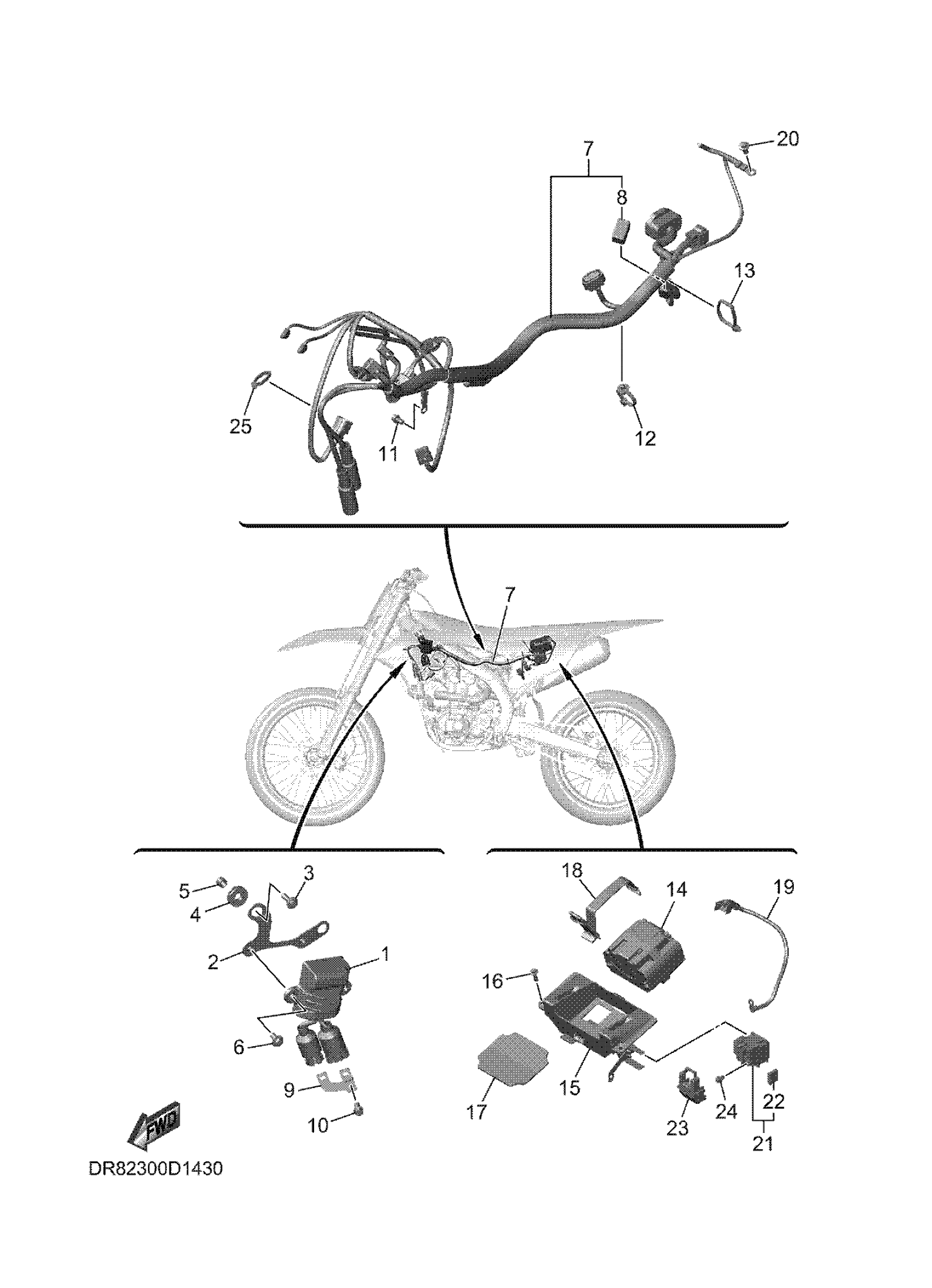

Yamaha YZ250FTL (YZ250F) DR81 2026 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

B7B-81960-00-00

$125.96

2

BRACKET, REGULATOR

BHR-21287-00-00

$24.56

3

BOLT, FLANGE

90105-06219-00

$1.73

4

GROMMET (4L0)

90480-19283-00

$6.88

5

COLLAR (8H6)

90387-07573-00

$7.11

6

BOLT, FLANGE

90105-06064-00

Unavailable

7

WIRE HARNESS ASSY

D01-82590-00-00

Unavailable

8

DIODE ASSY

4WA-81980-00-00

$24.23

9

PLATE

D03-82388-00-00

Unavailable

10

BOLT, FLANGE

90105-06110-00

$5.84

11

BOLT, FLANGE DEEP RECESS

95E32-06010-00

$0.73

12

CLAMP

90464-31002-00

$3.57

13

BAND

1UA-82591-00-00

$3.85

14

BATTERY ASSY (TPTAQ 4S1P)

BR9-82100-A9-00

$585.99

15

BRACKET, BATTERY

BHR-82128-10-00

$67.77

16

BOLT, FLANGE

90105-06203-00

Unavailable

17

DAMPER

BR9-82176-00-00

Unavailable

18

BAND, BATTERY

BHR-82131-00-00

Unavailable

19

WIRE, PLUS LEAD

BHR-82115-00-00

Unavailable

20

BOLT, FLANGE

90105-06064-00

Unavailable

21

STARTER RELAY ASSY

2GB-81940-00-00

Unavailable

22

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

23

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

24

BOLT, FLANGE

95022-06008-00

Unavailable

25

CLAMP

90465-10098-00

$1.68
