Description

Price

1

COVER, SIDE 1

5TA-21711-00-00

Unavailable

2

BOLT, FLANGE

95817-06016-00

$2.75

3

BOLT, WITH WASHER

90119-08238-00

$4.29

4

COVER, SIDE 2

5TA-21721-00-00

Unavailable

5

INSULATOR, SIDE COVER

5TA-2174A-00-00

Unavailable

6

BOLT, FLANGE

95817-06016-00

$2.75

7

BOLT, WITH WASHER

90119-08238-00

$4.29

8

SIDE COVER ASSY 3

5TA-21730-00-00

Unavailable

9

GRAPHIC 1

5XD-2173E-10-00

Unavailable

10

BOLT, FLANGE

90105-06064-00

$3.81

11

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

12

PANEL 1

5NL-2172A-20-00

$21.99

13

SIDE COVER ASSY 4

5TA-21740-00-00

$33.99

14

GRAPHIC 2

5XD-2173F-10-00

$73.99

15

BOLT, FLANGE

90105-06064-00

$3.81

16

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

17

PANEL 1

5NL-2172A-20-00

$21.99

18

TUNING FORK MARK

5MV-2175C-00-00

Unavailable

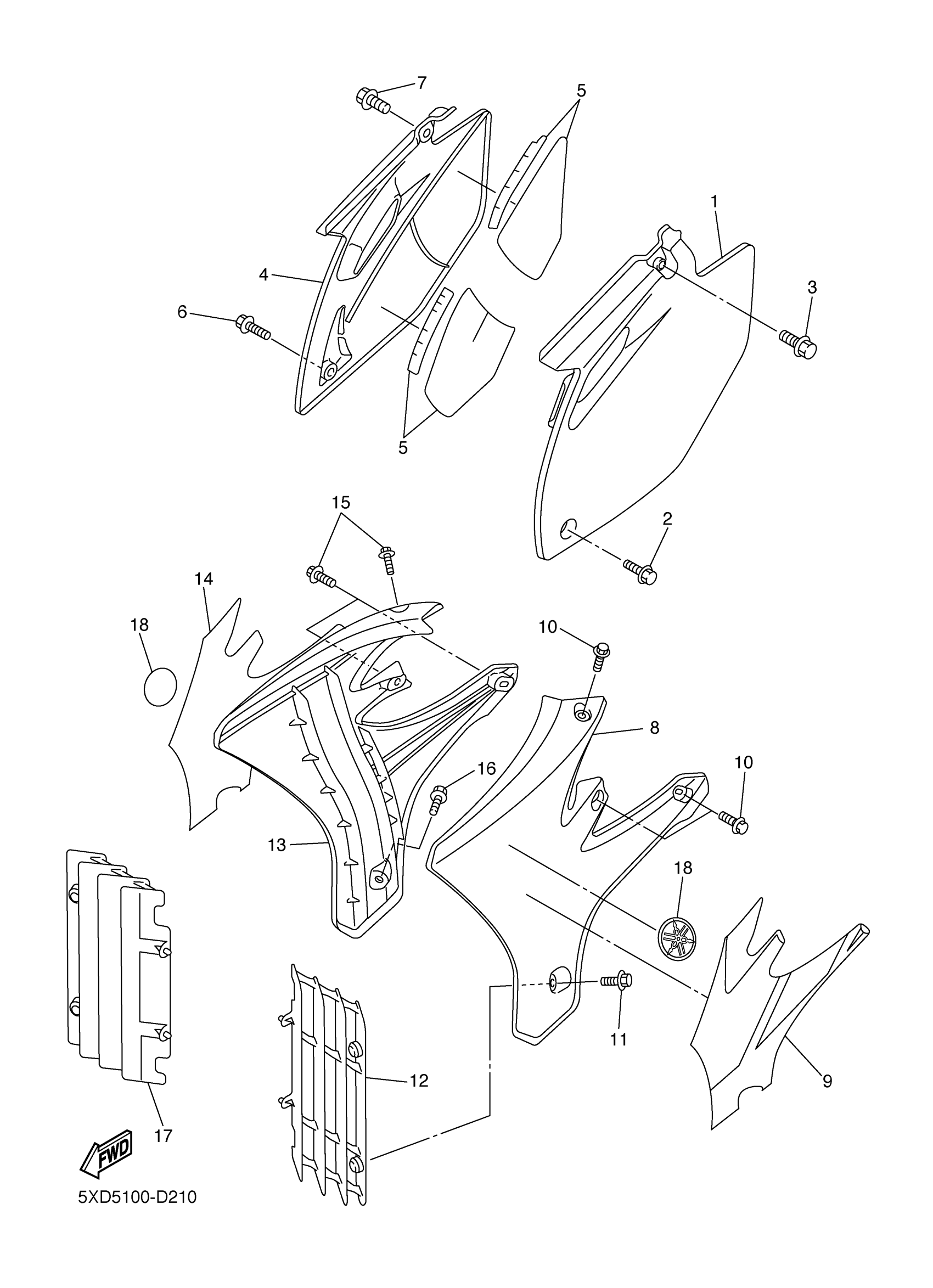

Yamaha YZ250FT (YZ250F) 5XC5 2005 SIDE COVER Diagram

COVER, SIDE 1

BOLT, FLANGE

BOLT, WITH WASHER

COVER, SIDE 2

INSULATOR, SIDE COVER

BOLT, FLANGE

BOLT, WITH WASHER

SIDE COVER ASSY 3

GRAPHIC 1

BOLT, FLANGE

SCREW, WITH WASHER (34K)

PANEL 1

SIDE COVER ASSY 4

GRAPHIC 2

BOLT, FLANGE

SCREW, WITH WASHER (34K)

PANEL 1

TUNING FORK MARK
