- YZ250FT (YZ250F) 5XC5 2005
FRONT FORK

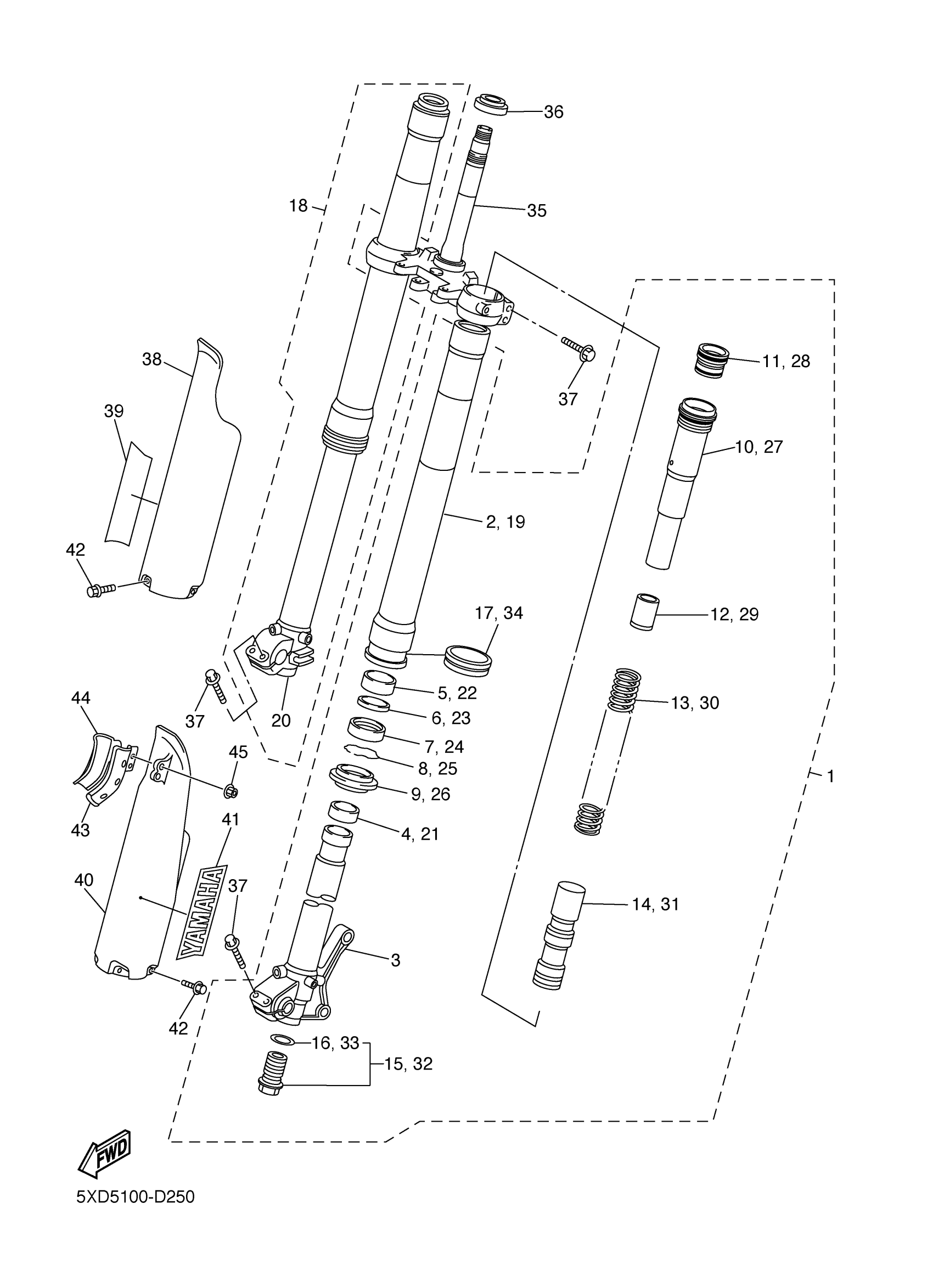

Yamaha YZ250FT (YZ250F) 5XC5 2005 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
5XC-23102-50-00
Unavailable
2
. TUBE, OUTER
1C3-23136-L0-00
Unavailable
3
. INNER TUBE COMP2
1P8-23120-L0-00
Unavailable
6
WASHER, OIL SEAL
5XE-23146-L0-00
Unavailable
10
. CYLINDER COMP, FRONT FORK
1C3-23170-M0-00
Unavailable
11
. VALVE COMP
5XC-2316A-N0-00
Unavailable
12
. SPACER
1C3-23118-L0-00
Unavailable
13
.. SPRING, FRONT FORK (K=43N/MM)
1P8-23141-L0-00
Unavailable
14
. SPACER
1C3-2316E-L0-00
Unavailable
16
GASKET
2HH-23158-L0-00
Unavailable
17
. PROTECTER GUIDE COMP, 1
1C3-2314F-L0-00
Unavailable
18
FRONT FORK ASSY (R.H)
5XC-23103-50-00
Unavailable
19
. TUBE, OUTER
1C3-23136-L0-00
Unavailable
20
. INNER TUBE COMP1
1P8-23110-L0-00
Unavailable
23
WASHER, OIL SEAL
5XE-23146-L0-00
Unavailable
27
. CYLINDER COMP, FRONT FORK
1C3-23170-M0-00
Unavailable
28
. VALVE COMP
5XC-2316A-N0-00
Unavailable
29
. SPACER
1C3-23118-L0-00
Unavailable
30
.. SPRING, FRONT FORK (K=43N/MM)
1P8-23141-L0-00
Unavailable
31
. SPACER
1C3-2316E-L0-00
Unavailable
33
GASKET
2HH-23158-L0-00
Unavailable
34
. PROTECTER GUIDE COMP, 1
1C3-2314F-L0-00
Unavailable
35
UNDER BRACKET COMP.
5XC-23340-M0-00
Unavailable
36
BEARING(4SR)
93332-00081-00
Unavailable
37
BOLT 1
5NY-23346-L0-00
Unavailable
38
PROTECTOR 2
1C3-2315J-10-00
Unavailable
39
EMBLEM, YAMAHA
4XL-2153A-11-00
Unavailable
40
PROTECTOR 1
1C3-2315H-10-00
Unavailable
41
EMBLEM, YAMAHA
4XL-2153A-11-00
Unavailable
42
BOLT 2
3SP-23356-L0-00
Unavailable
43
CLAMP
1C3-23466-50-00
Unavailable
44
CLAMP
1C3-23467-50-00
Unavailable
45
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
