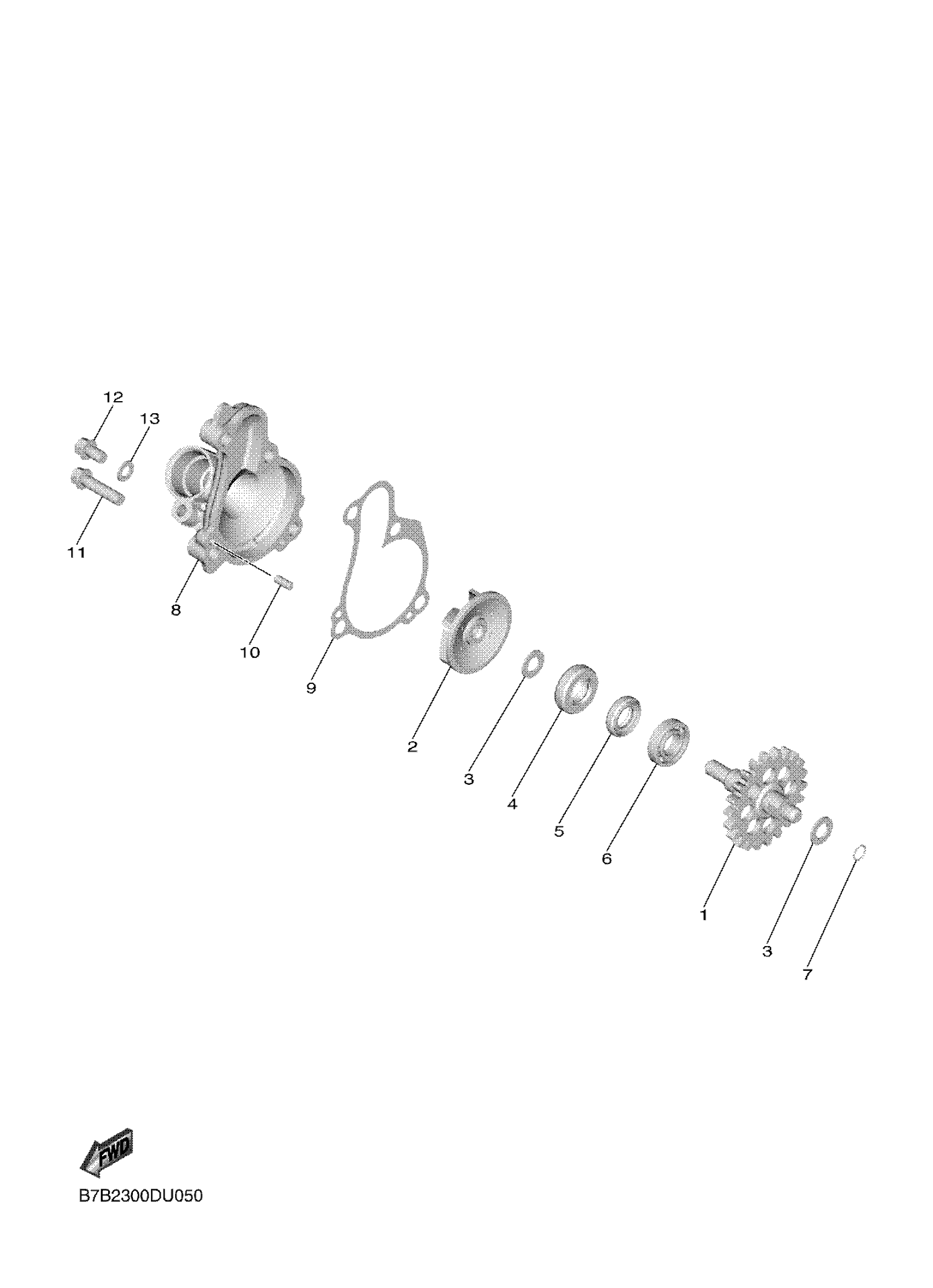

Yamaha YZ250FSME (YZ250F MONSTER) D017 2025 WATER PUMP Diagram

#

Description
Price

1

GEAR, IMPELLER SHA

BAJ-12459-10-00

$156.32

2

IMPELLER, WATER PUMP

BAJ-12451-00-00

$82.56

3

WASHER, PLATE (5F7)

90201-08512-00

$5.75

4

OIL SEAL

93102-12008-00

$21.23

5

OIL SEAL(JA9)

93102-12442-00

$8.66

6

BEARING(4JT)

93306-90105-00

$37.30

7

CIRCLIP

93440-07182-00

$2.93

8

COVER, HOUSING

33D-12422-00-00

$81.50

9

GASKET, HOUSING COVER 1

33D-12427-00-00

$5.96

10

PIN,DOWEL (603)

93604-10011-00

$4.89

11

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47

12

BOLT, FLANGE DEEP RECESS

95E32-06010-00

$0.73

13

GASKET 256113960000

90430-06014-00

Unavailable
