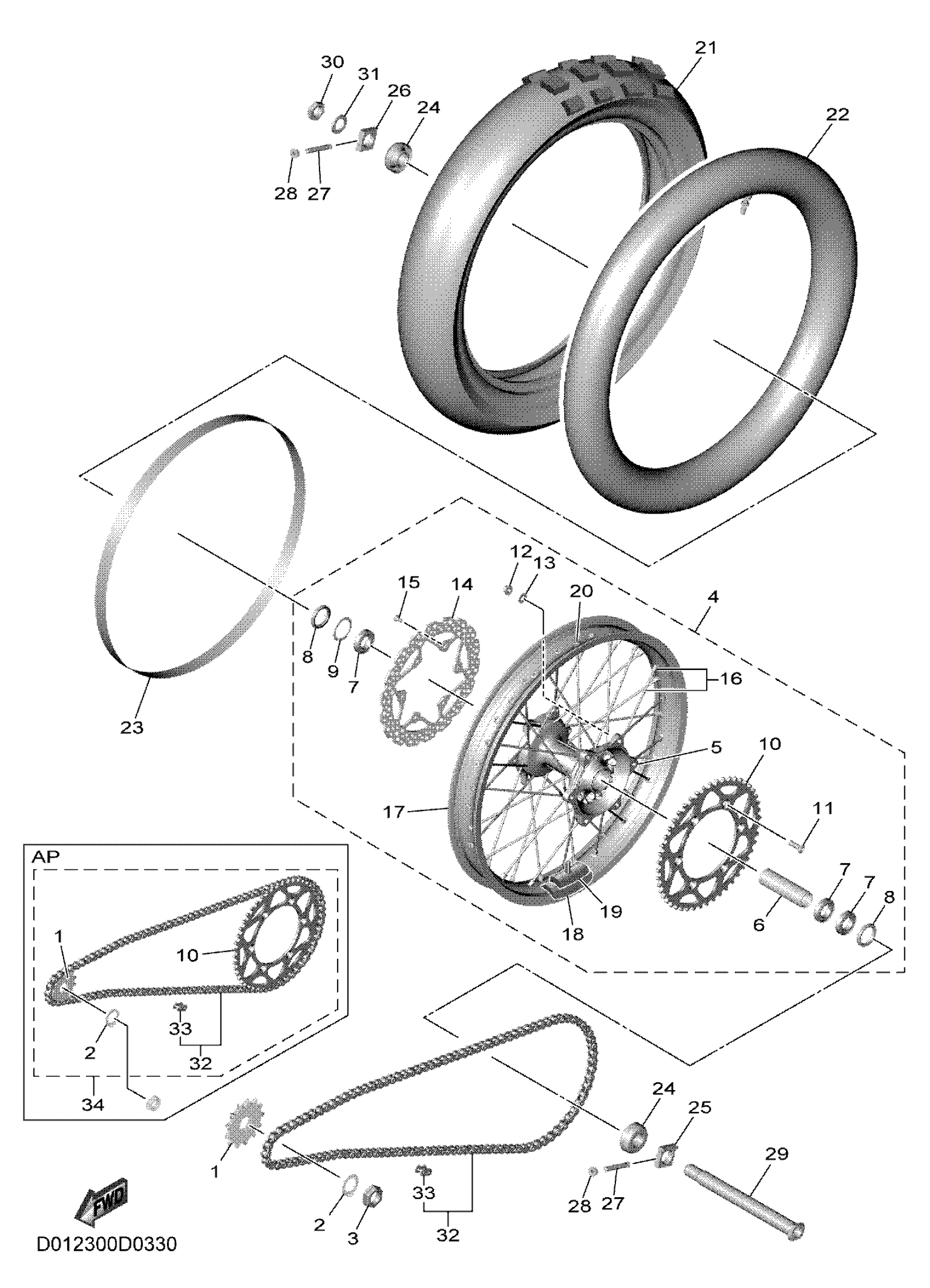

Yamaha YZ250FSME (YZ250F MONSTER) D017 2025 REAR WHEEL Diagram
#
Description
Price
4
REAR WHEEL SUB-ASSY
B7B-25302-40-00
Unavailable
10
SPROCKET, DRIVEN (51T)
B2W-25451-00-00
Unavailable
11
BOLT(3RB)
90109-081G1-00
Unavailable
12
NUT, SELF-LOCKING
90185-08008-00
Unavailable
13
WASHER, PLATE
90201-08043-00
Unavailable
14
DISK, REAR BRAKE 2
B2W-2582W-00-00
Unavailable
15
SCREW, COUNTERSUNK
90151-06079-00
Unavailable
16
SPOKE SET, REAR
B2W-25304-00-00
Unavailable
17
RIM (2.15-19)
94421-19036-00
Unavailable
18
SPACER, BEAD
3JE-25394-00-00
Unavailable
19
DAMPER
4XM-25364-00-00
Unavailable
20
GROMMET (397)
90480-10068-00
Unavailable
21
TIRE (110/90-19 62M MX33)
94111-19034-00
Unavailable
22
TUBE(3JE)
94211-19273-00
Unavailable
23
BAND, RIM(25-19)
94311-19155-00
Unavailable
24
COLLAR ASSY
BR9-2530S-01-00
Unavailable
25
PULLER, CHAIN 1
1SL-25388-00-00
Unavailable
26
PULLER, CHAIN 2
1SL-25389-00-00
Unavailable
27
BOLT
90101-08006-00
Unavailable
28
NUT
90179-08019-00
Unavailable
29
AXLE, WHEEL
BHR-25381-00-00
Unavailable
30
NUT, SELF-LOCKING
90185-22011-00
Unavailable
31
WASHER, PLATE
90201-22023-00
Unavailable
32
CHAIN
9Y582-60113-00
Unavailable
33
JOINT, CHAIN
94682-60001-00
Unavailable
34
CHAIN & SPROCKET KIT
B7B-W001A-20-00
Unavailable
