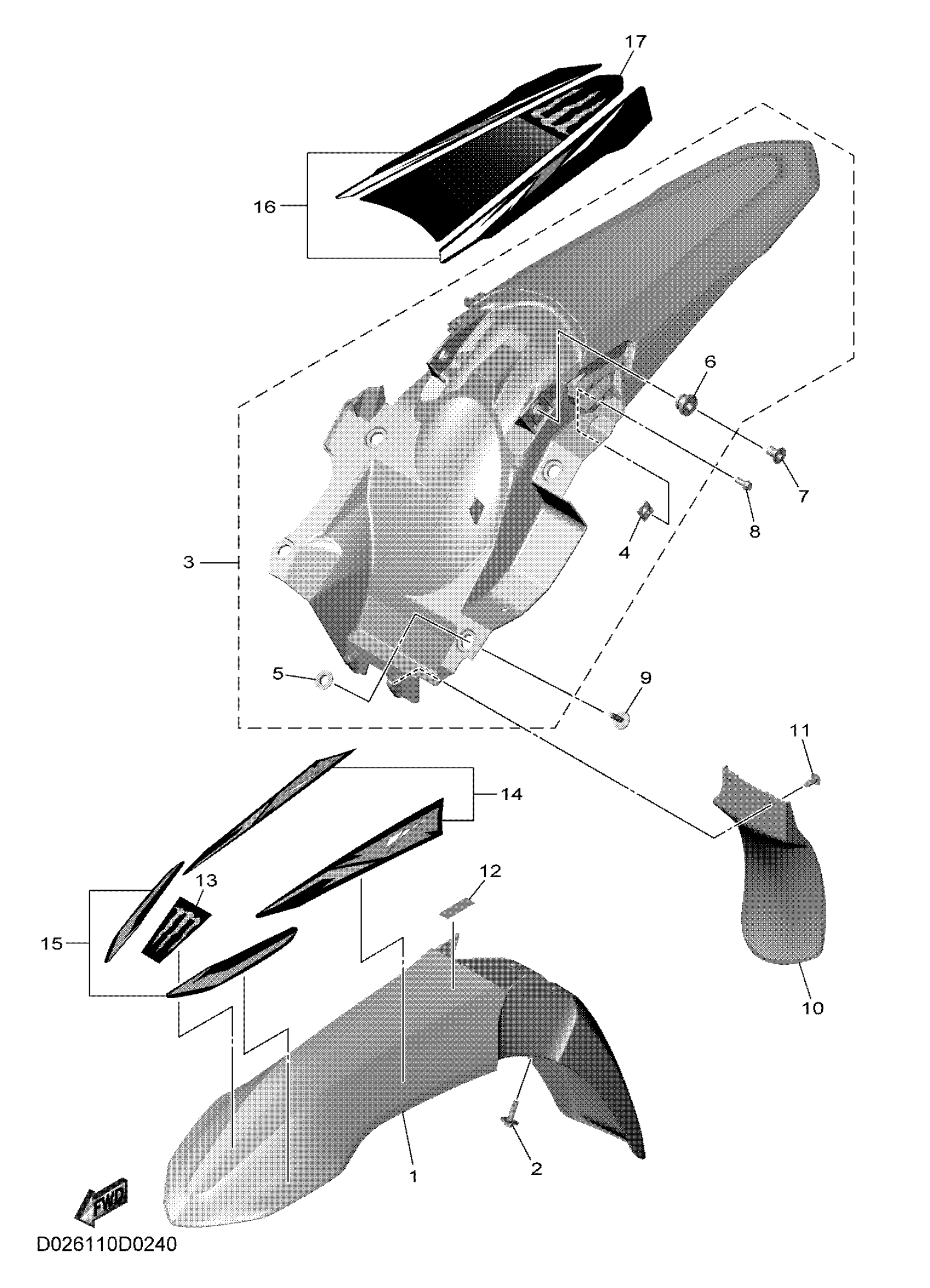

Yamaha YZ250FSME (YZ250F MONSTER) D017 2025 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

BHR-21510-10-00

$25.93

2

BOLT, WITH WASHER

90119-06268-00

$1.93

3

REAR FENDER COMP.

BHR-21610-10-00

$40.58

4

NUT, REAR FENDER

5XE-21635-10-00

$11.84

5

COLLAR

5BE-21749-00-00

$4.48

6

GROMMET

90480-15019-00

$14.12

7

COLLAR

90387-06136-00

$5.30

8

BOLT, FLANGE

90105-06100-00

$5.20

9

BOLT, WITH WASHER

90119-06268-00

$1.93

10

GUARD, FLAP

3D7-21642-00-00

$22.84

11

SCREW, TAPPING

97702-60016-00

$1.15

12

LABEL, CAUTION

3FB-2415E-03-00

$2.80

13

EMBLEM

BHR-21578-00-00

$25.83

14

GRAPHIC SET 1

BHR-2159A-10-00

$62.12

15

GRAPHIC SET 2

D02-2159B-00-00

$30.89

16

GRAPHIC SET

D02-2167A-00-00

Unavailable

17

GRAPHIC, 1

BHR-2165C-10-00

Unavailable
