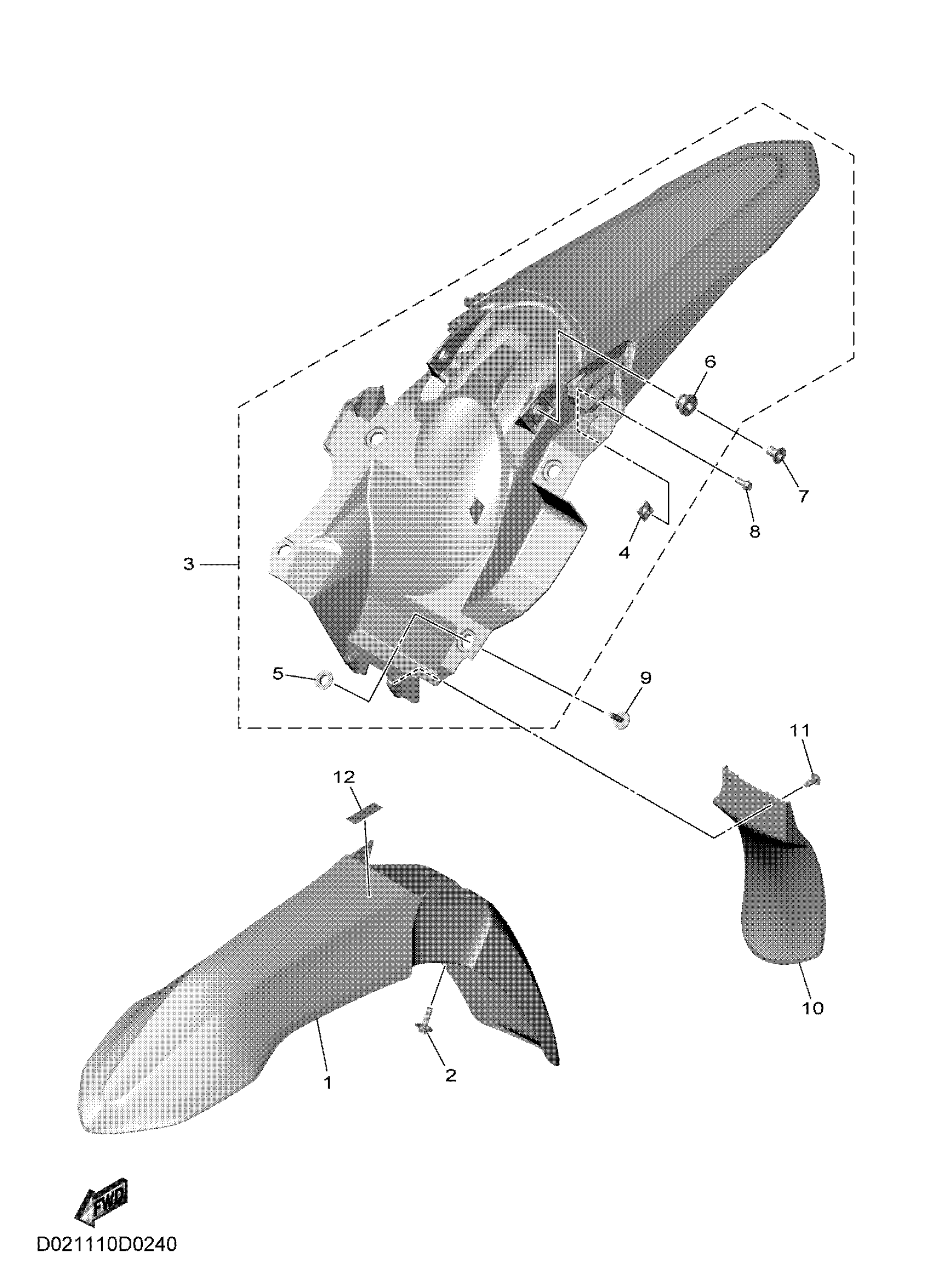

Yamaha YZ250FSL (YZ250F) D011 2025 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

BHR-21510-00-00

$30.37

2

BOLT, WITH WASHER

90119-06268-00

$1.93

3

REAR FENDER COMP.

BHR-21610-00-00

$31.85

4

NUT, REAR FENDER

5XE-21635-10-00

$11.84

5

COLLAR

5BE-21749-00-00

$4.48

6

GROMMET

90480-15019-00

$14.12

7

COLLAR

90387-06136-00

$5.30

8

BOLT, FLANGE

90105-06100-00

$5.20

9

BOLT, WITH WASHER

90119-06268-00

$1.93

10

GUARD, FLAP

3D7-21642-00-00

$22.84

11

SCREW, TAPPING

97702-60016-00

$1.15

12

LABEL, CAUTION

3FB-2415E-03-00

$2.80
