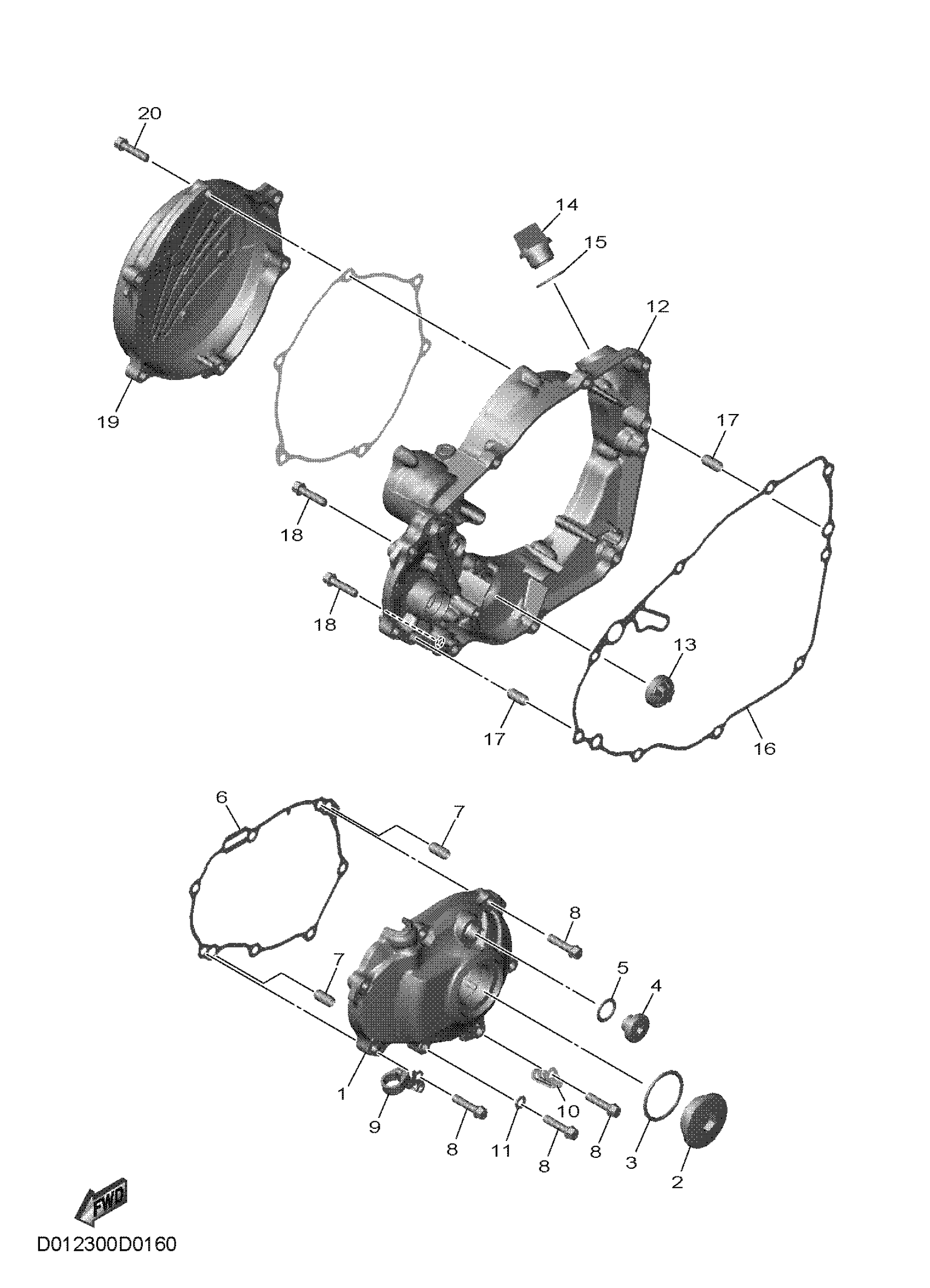

Yamaha YZ250FSL (YZ250F) D011 2025 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

B7B-15411-00-00

$102.62

2

PLUG, STRAIGHT SCREW

90340-36007-00

$20.85

3

O-RING

93210-35804-00

$0.46

4

PLUG, STRAIGHT SCREW

90340-14021-00

$25.03

5

O-RING (2H9)

93210-14369-00

$5.42

6

GASKET, CRANKCASE COVER 1

B7B-15451-00-00

$15.55

7

PIN, DOWEL(3XW)

91808-16023-00

$5.26

8

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47

9

HOLDER

BMF-1546C-00-00

$19.24

10

CLAMP

90465-08062-00

$3.45

11

GASKET 256113960000

90430-06014-00

Unavailable

12

COVER, CRANKCASE 3

B7B-15431-00-00

$127.30

13

GAUGE, LEVEL

3Y1-15361-00-00

$23.80

14

PLUG, OIL

3Y1-15363-10-00

$15.94

15

O-RING (646)

93210-19123-00

Unavailable

16

GASKET, CRANKCASE COVER 3

B7B-15462-00-00

Unavailable

17

PIN, DOWEL(3XW)

91808-16023-00

$5.26

18

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47

19

COVER, 1

B7B-15415-00-00

Unavailable

20

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47
