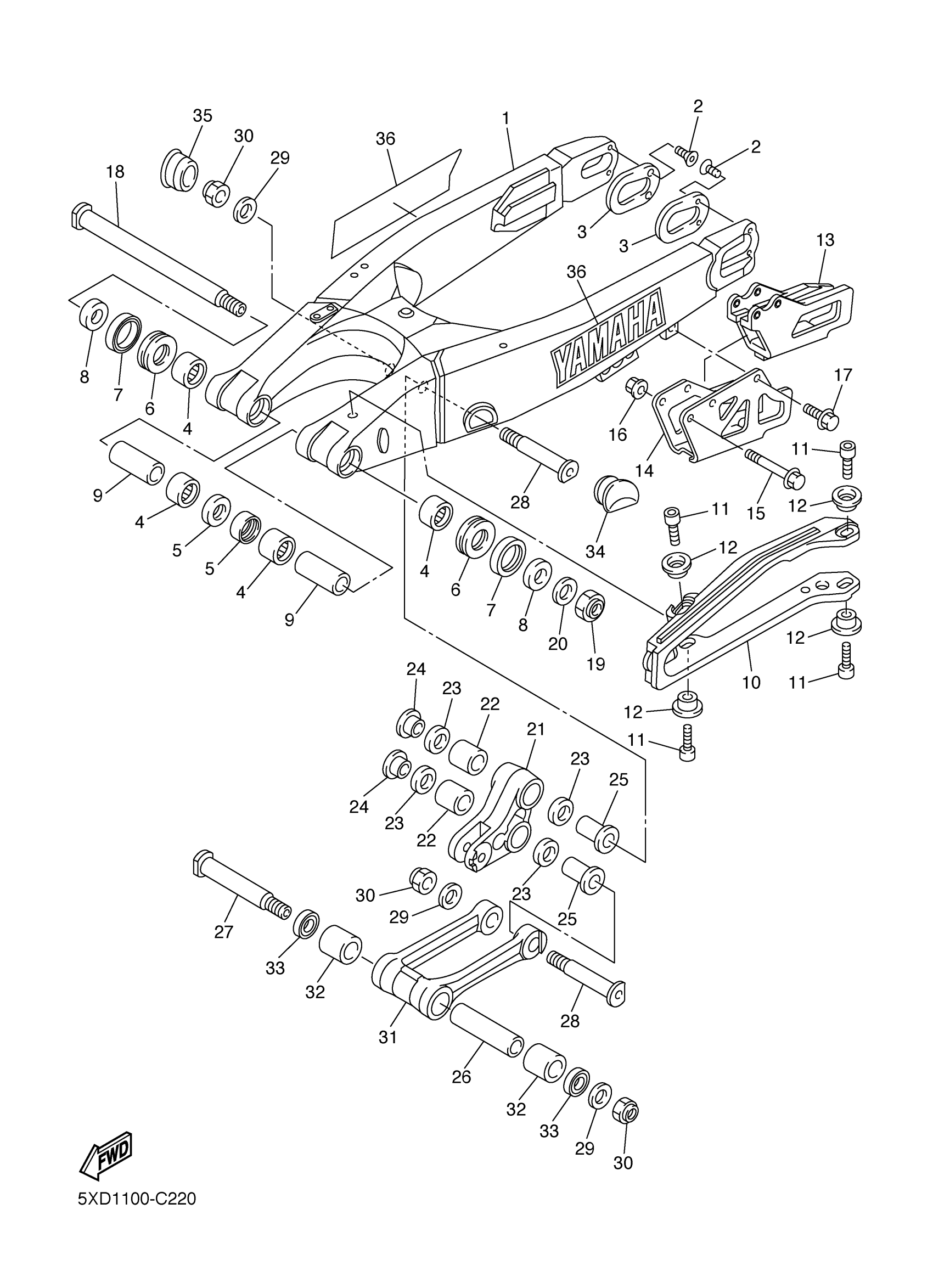

Yamaha YZ250FS (YZ250F) 5XC1 2004 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

5UN-22110-00-00

Unavailable

2

SCREW, COUNTERSUNK

90151-04002-00

$3.50

3

PATCH

5UN-22355-00-00

Unavailable

4

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$38.99

5

OIL SEAL (23X)

93106-22019-00

$11.49

6

BEARING

93342-22217-00

$41.99

7

OIL SEAL (36F)

93109-28043-00

$11.49

8

COLLAR

90387-18005-00

Unavailable

9

COLLAR

90387-18004-00

$30.99

10

SEAL, GUARD

5UN-22151-00-00

$109.99

11

BOLT, SOCKET

91317-05008-00

$2.55

12

WASHER, PLATE

5JG-22156-00-00

$8.99

13

SUPPORT, CHAIN

5UN-22199-00-00

$90.99

14

COVER, THRUST 1

5UN-22128-00-00

Unavailable

15

BOLT, SMALL FLANGE

95027-06050-00

$2.55

16

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

17

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

18

SHAFT, PIVOT

5NY-22141-01-00

Unavailable

19

NUT, SELF-LOCKING

90185-16002-00

Unavailable

20

WASHER, PLATE (5X6)

90201-160F6-00

Unavailable

21

ARM, RELAY

5NY-2217A-00-00

Unavailable

22

BEARING, CYLINDRICAL(4BF)

93315-32056-00

Unavailable

23

OIL SEAL

93109-20076-00

Unavailable

24

COLLAR

90387-16005-00

Unavailable

25

COLLAR

90387-16007-00

Unavailable

26

COLLAR

90387-167Y9-00

Unavailable

27

SHAFT 1

5NY-22121-00-00

Unavailable

28

SHAFT 2

5XE-22122-00-00

Unavailable

29

WASHER PLATE (3L6)

90201-14740-00

Unavailable

30

NUT, SELF-LOCKING

90185-14010-00

Unavailable

31

ROD, CONNECTING 1

5XE-2217F-00-00

Unavailable

32

BEARING, CYLINDRICAL(4RR)

93315-32053-00

Unavailable

33

OIL SEAL

93109-20076-00

Unavailable

34

COVER

5XE-2135F-00-00

Unavailable

35

COVER

5HD-2135F-00-00

Unavailable

36

EMBLEM, YAMAHA

5UN-2153A-01-00

Unavailable
