- YZ250FS (YZ250F) 5XC1 2004
FRONT FORK

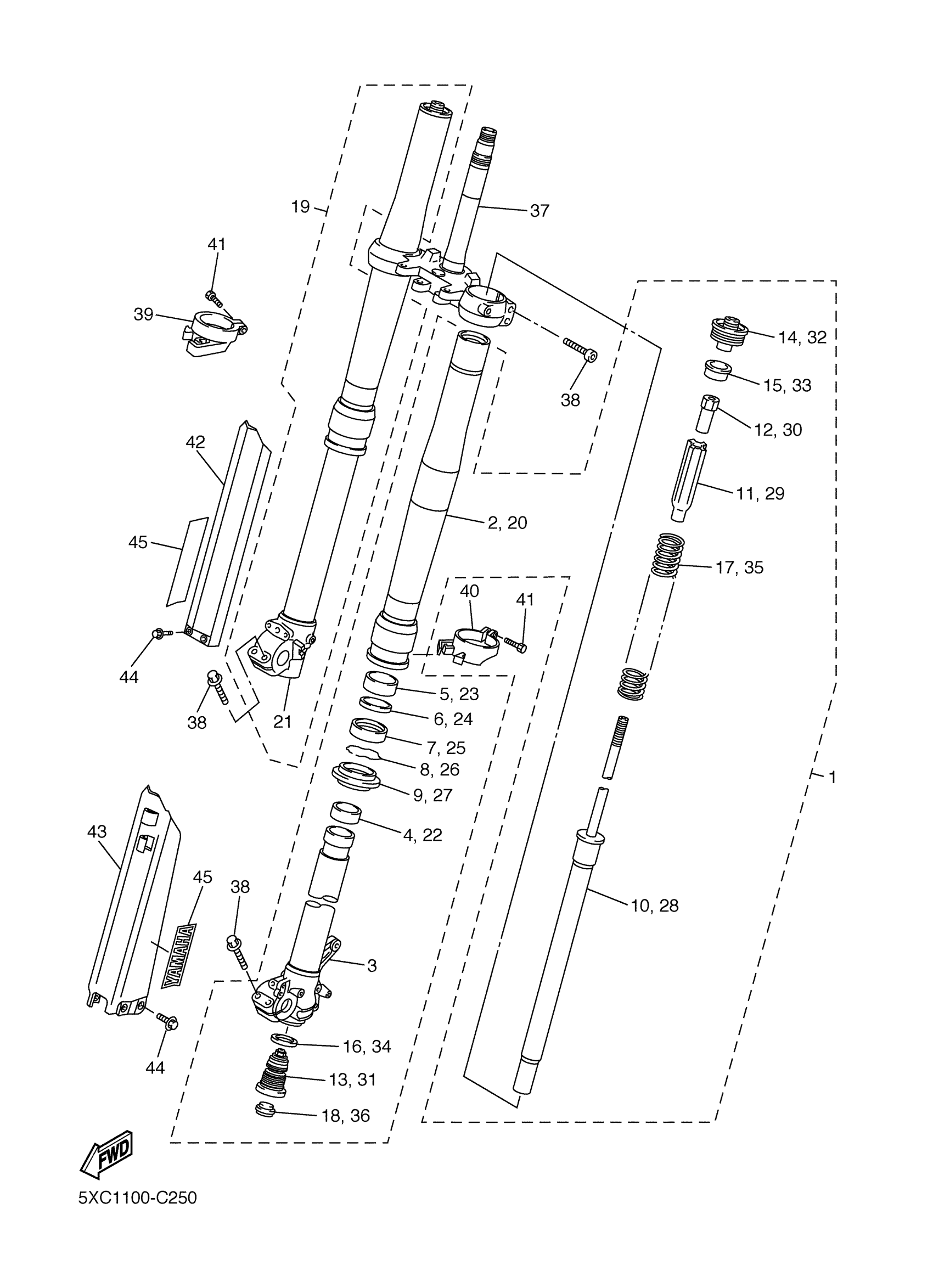

Yamaha YZ250FS (YZ250F) 5XC1 2004 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
5XC-23102-00-00
Unavailable
2
. TUBE, OUTER (RIGHT)
5XD-23136-L0-00
Unavailable
3
. INNER TUBE COMP2
5XE-23120-L0-00
Unavailable
6
WASHER, OIL SEAL
5XE-23146-L0-00
Unavailable
10
. CYLINDER COMP, FRONT FORK
5XC-23170-L0-00
Unavailable
12
NUT, SPECIAL
5XE-23393-L0-00
Unavailable
13
. VALVE COMP
5XC-2316A-L0-00
Unavailable
16
GASKET
4SS-23158-L0-00
Unavailable
17
. SPRING, FRONT FORK(K=42N/MM)
5XC-23141-L0-00
Unavailable
18
PLUG
3JD-2312G-L0-00
Unavailable
19
FRONT FORK ASSY (R.H)
5XC-23103-00-00
Unavailable
20
. TUBE, OUTER (RIGHT)
5XD-23136-L0-00
Unavailable
21
. INNER TUBE COMP1
5XE-23110-L0-00
Unavailable
24
WASHER, OIL SEAL
5XE-23146-L0-00
Unavailable
28
. CYLINDER COMP, FRONT FORK
5XC-23170-L0-00
Unavailable
30
NUT, SPECIAL
5XE-23393-L0-00
Unavailable
31
. VALVE COMP
5XC-2316A-L0-00
Unavailable
34
GASKET
4SS-23158-L0-00
Unavailable
35
. SPRING, FRONT FORK(K=42N/MM)
5XC-23141-L0-00
Unavailable
36
PLUG
3JD-2312G-L0-00
Unavailable
37
UNDER BRACKET COMP.
5XC-23340-L0-00
Unavailable
38
BOLT 1
5NY-23346-L0-00
Unavailable
39
PROTECTER GUIDE COMP., 2
5XE-2314G-L0-00
Unavailable
40
PROTECTER GUIDE COMP., 1
5XE-2314F-L0-00
Unavailable
41
BOLT 1
4SS-23346-L0-00
Unavailable
42
PROTECTER COMP., 2
5TA-2314J-00-00
Unavailable
43
PROTECTER COMP., 1
5TA-2314H-00-00
Unavailable
44
BOLT 2
3SP-23356-L0-00
Unavailable
45
EMBLEM, YAMAHA
4XL-2153A-11-00
Unavailable
