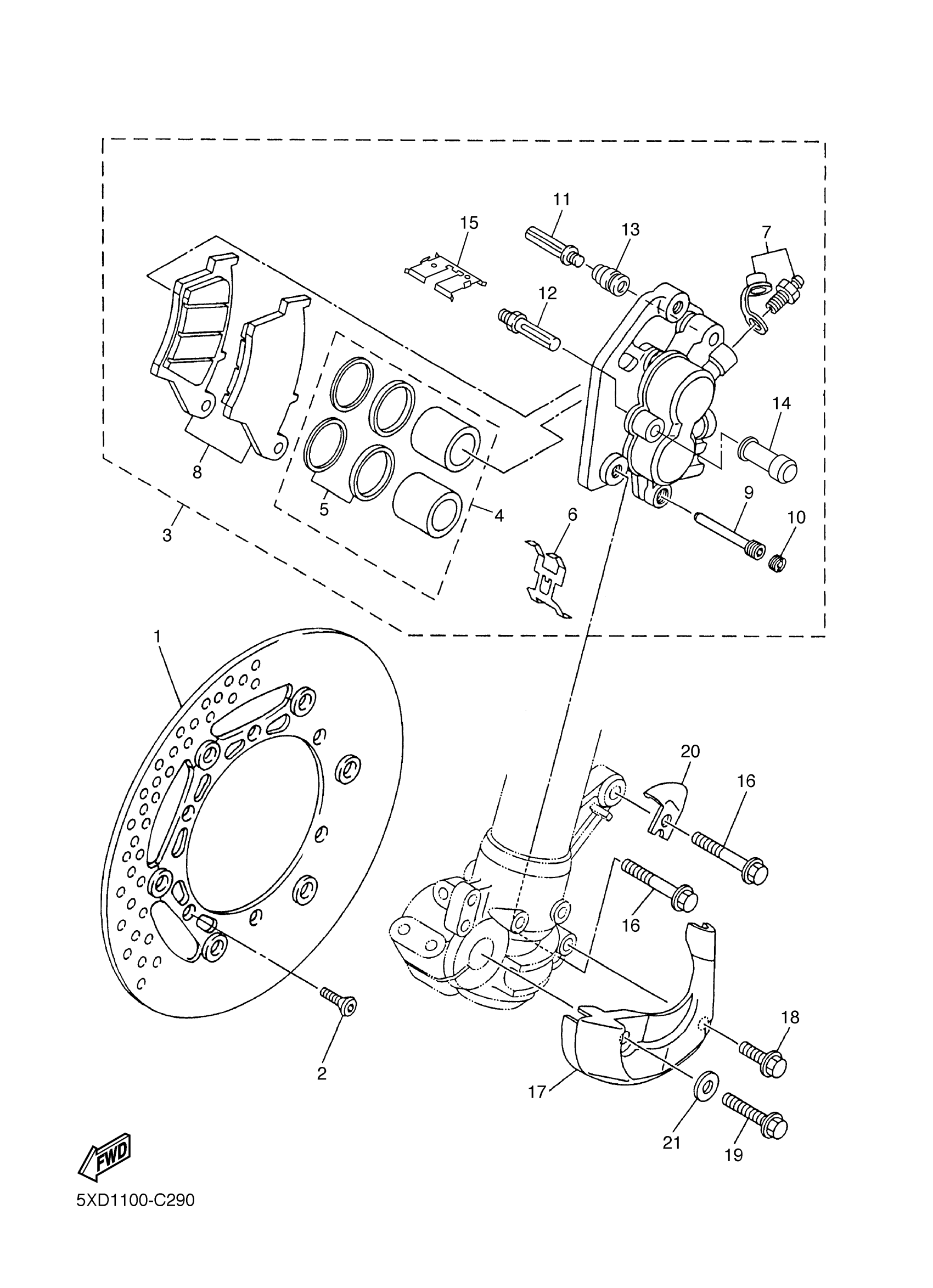

Yamaha YZ250FS (YZ250F) 5XC1 2004 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC BRAKE ASSY

5MV-2581T-00-00

$201.99

2

SCREW, COUNTERSUNK

90151-06080-00

$2.18

3

CALIPER ASSY (LEFT)

5UN-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

5UN-W0057-00-00

$66.99

5

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

6

SUPPORT, PAD

5DH-25919-00-00

$20.99

7

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

8

BRAKE PAD KIT

5MV-W0045-01-00

$39.99

9

PIN, PAD

5DH-25933-00-00

$22.99

10

PLUG

5DH-25916-00-00

$9.99

11

BOLT

3SP-25926-51-00

$13.49

12

BOLT

3SP-25914-51-00

$4.58

13

BOOT, CALIPER

3JD-25917-00-00

$8.99

14

BOOT 2

1UY-25937-51-00

$14.49

15

RETAINER, CALIPER

5DH-25849-00-00

$11.99

16

BOLT, FLANGE

95817-08035-00

Unavailable

17

COVER, HOSE

5DH-2314E-00-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

Unavailable

19

BOLT, SMALL FLANGE

95027-08020-00

Unavailable

20

HOLDER, BRAKE HOSE 1

5DH-25875-00-00

Unavailable

21

WASHER(6TC)

92907-08200-00

Unavailable
