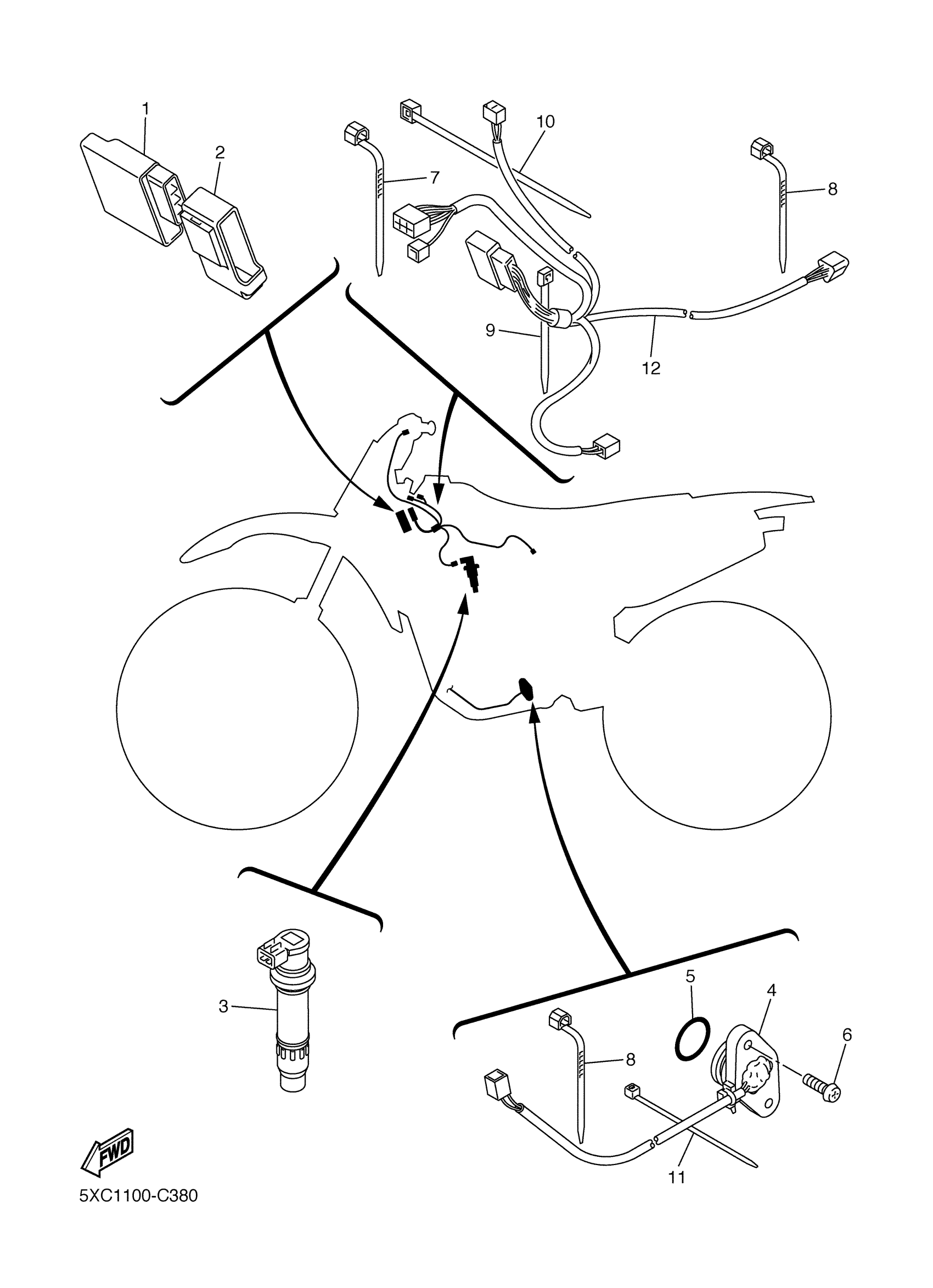

Yamaha YZ250FS (YZ250F) 5XC1 2004 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5XC-85540-00-00

Unavailable

2

BAND

5TA-85546-00-00

Unavailable

3

IGNITION COIL ASSY

5UL-82310-10-00

$141.35

4

NEUTRAL SWITCH ASSY

5TA-82540-00-00

Unavailable

5

O-RING

93210-21001-00

$4.46

6

SCREW, BINDING

98907-05016-00

$5.76

7

CLAMP

90464-13077-00

$6.22

8

CLAMP(4FM)

90464-15195-00

$2.57

9

BAND

1UA-82591-00-00

$3.85

10

CLAMP(MF1)

90464-15152-00

$4.07

11

CLAMP

5Y9-12491-00-00

$6.29

12

WIRE, SUB LEAD

5TA-82509-02-00

Unavailable
