- YZ250FS (YZ250F) 5XC1 2004
CARBURETOR

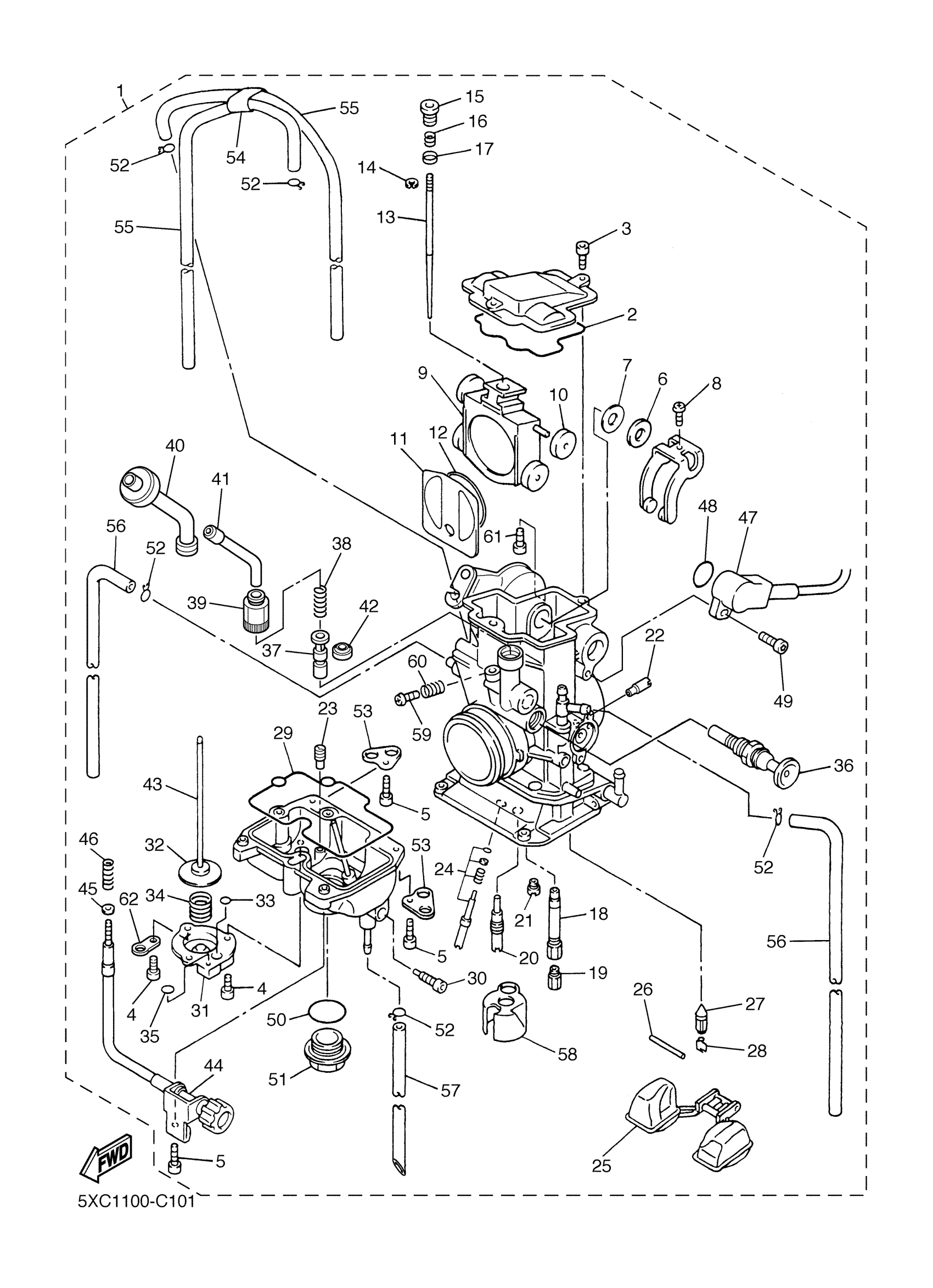

Yamaha YZ250FS (YZ250F) 5XC1 2004 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
5XC-14101-00-00
Unavailable
5
SCREW, PAN HEAD
98511-04012-00
Unavailable
13
NEEDLE (#OBEKQ)
5JG-14916-E1-00
Unavailable
13
. NEEDLE (#OBEKN)
5JG-14916-EN-00
Unavailable
13
. NEEDLE (#OBEKP)
5JG-14916-EP-00
Unavailable
13
. NEEDLE (#OBEKR)
5JG-14916-ER-00
Unavailable
13
. NEEDLE (#OBEKS)
5JG-14916-ES-00
Unavailable
13
. NEEDLE (#OBEKT)
5JG-14916-ET-00
Unavailable
13
. NEEDLE (#OBEKU)
5JG-14916-EU-00
Unavailable
14
CLIP
3TJ-14159-40-00
Unavailable
15
SCREW, ADJUST
5JG-14521-00-00
Unavailable
16
SPRING
5JG-14275-00-00
Unavailable
17
COLLAR
5JG-14264-00-00
Unavailable
18
JET, NEEDLE
5JG-14947-01-00
Unavailable
19
JET, MAIN (#170)
4MX-14943-41-00
Unavailable
19
JET, MAIN (#175)
4MX-14943-42-00
Unavailable
19
JET, MAIN (#180)
4MX-14943-43-00
Unavailable
19
JET, MAIN (#185)
4MX-14943-44-00
Unavailable
19
JET, MAIN (#190)
4MX-14943-45-00
Unavailable
19
JET, MAIN (#172)
4MX-14943-92-00
Unavailable
19
JET, MAIN (#178)
4MX-14943-93-00
Unavailable
19
JET, MAIN (#182)
4MX-14943-94-00
Unavailable
19
JET, MAIN (#188)
4MX-14943-95-00
Unavailable
20
JET, SLOW (#38)
4MX-14948-02-00
Unavailable
20
JET (#40)
4MX-14948-03-00
Unavailable
20
JET, PILOT (#42)
4MX-14948-04-00
Unavailable
20
JET, PILOT (#45)
4MX-14948-05-00
Unavailable
20
JET, PILOT (#48)
4MX-14948-06-00
Unavailable
21
JET
3TJ-1494F-13-00
Unavailable
21
JET
3TJ-1494F-14-00
Unavailable
21
JET
3TJ-1494F-15-00
Unavailable
21
JET
3TJ-1494F-16-00
Unavailable
21
JET
3TJ-1494F-17-00
Unavailable
21
JET (#78)
3TJ-1494F-18-00
Unavailable
21
JET (#80)
3TJ-1494F-19-00
Unavailable
22
JET,SAJ (#100)
5TA-14943-27-00
Unavailable
23
JET (#60)
4JT-1494F-11-00
Unavailable
23
JET (#70)
4JT-1494F-15-00
Unavailable
23
JET (#80)
4JT-1494F-19-00
Unavailable
23
JET (#90)
4JT-1494F-23-00
Unavailable
23
JET(#100)
4JT-1494F-27-00
Unavailable
23
JET (#110)
4JT-1494F-29-00
Unavailable
23
JET (#120)
4JT-1494F-31-00
Unavailable
24
PILOT SCREW SET
3TJ-14105-40-00
Unavailable
25
FLOAT
4SR-14985-00-00
Unavailable
26
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
27
VALVE, NEEDLE
4MX-14392-00-00
Unavailable
28
CLIP
633-14159-00-00
Unavailable
29
GASKET, FLOAT CHAMBER
5JG-14984-00-00
Unavailable
30
PLUG, DRAIN
3TJ-14191-40-00
Unavailable
31
COVER 1
3TJ-14293-40-00
Unavailable
32
DIAPHRAGM ASSY
5JG-14940-16-00
Unavailable
32
DIAPHRAGM ASSY
5JG-14940-17-00
Unavailable
32
DIAPHRAGM ASSY
5JG-14940-18-00
Unavailable
32
DIAPHRAGM ASSY
5JG-14940-76-00
Unavailable
33
GASKET
3TJ-14536-40-00
Unavailable
34
SPRING, DIAPHRAGM
3TJ-14933-40-00
Unavailable
35
. O-RING
6H4-14561-00-00
Unavailable
36
PLUNGER, STARTER
5TA-14171-00-00
Unavailable
37
PLUNGER, STARTER
5TA-14371-00-00
Unavailable
38
SPRING, PLUNGER
5TA-14335-00-00
Unavailable
39
SCREW
5TA-14991-00-00
Unavailable
40
CAP, PLUNGER
5TA-14374-00-00
Unavailable
41
GUIDE, CABLE
5TA-14155-00-00
Unavailable
42
SEAL
5TA-14997-00-00
Unavailable
43
ROD, STARTER
5JG-14379-00-00
Unavailable
44
SCREW, THROTTLE
5JG-14922-00-00
Unavailable
45
WASHER, PLATE(3TJ)
90201-08410-00
Unavailable
46
SPRING, THROTTLE STOP
5TA-14934-00-00
Unavailable
47
THROTTLE SENSOR ASSY
5TA-85885-01-00
Unavailable
48
O-RING
33D-14562-00-00
Unavailable
49
SCREW
1DX-14216-00-00
Unavailable
50
O-RING
4MX-14561-00-00
Unavailable
51
PLUG, SCREW
4MX-14115-00-00
Unavailable
52
CLIP
3TJ-14137-40-00
Unavailable
53
PLATE
5BE-14146-00-00
Unavailable
54
HOLDER
5TA-14261-00-00
Unavailable
55
PIPE
5TA-14196-00-00
Unavailable
56
PIPE
5TA-14197-00-00
Unavailable
57
HOSE
5TJ-14987-00-00
Unavailable
58
PLATE
5JG-14346-00-00
Unavailable
59
SCREW
5JG-14565-00-00
Unavailable
60
SPRING, ADJUST SCREW
5JG-14531-00-00
Unavailable
61
SCREW
5JG-14591-09-00
Unavailable
62
. PLATE
5PA-14146-00-00
Unavailable
