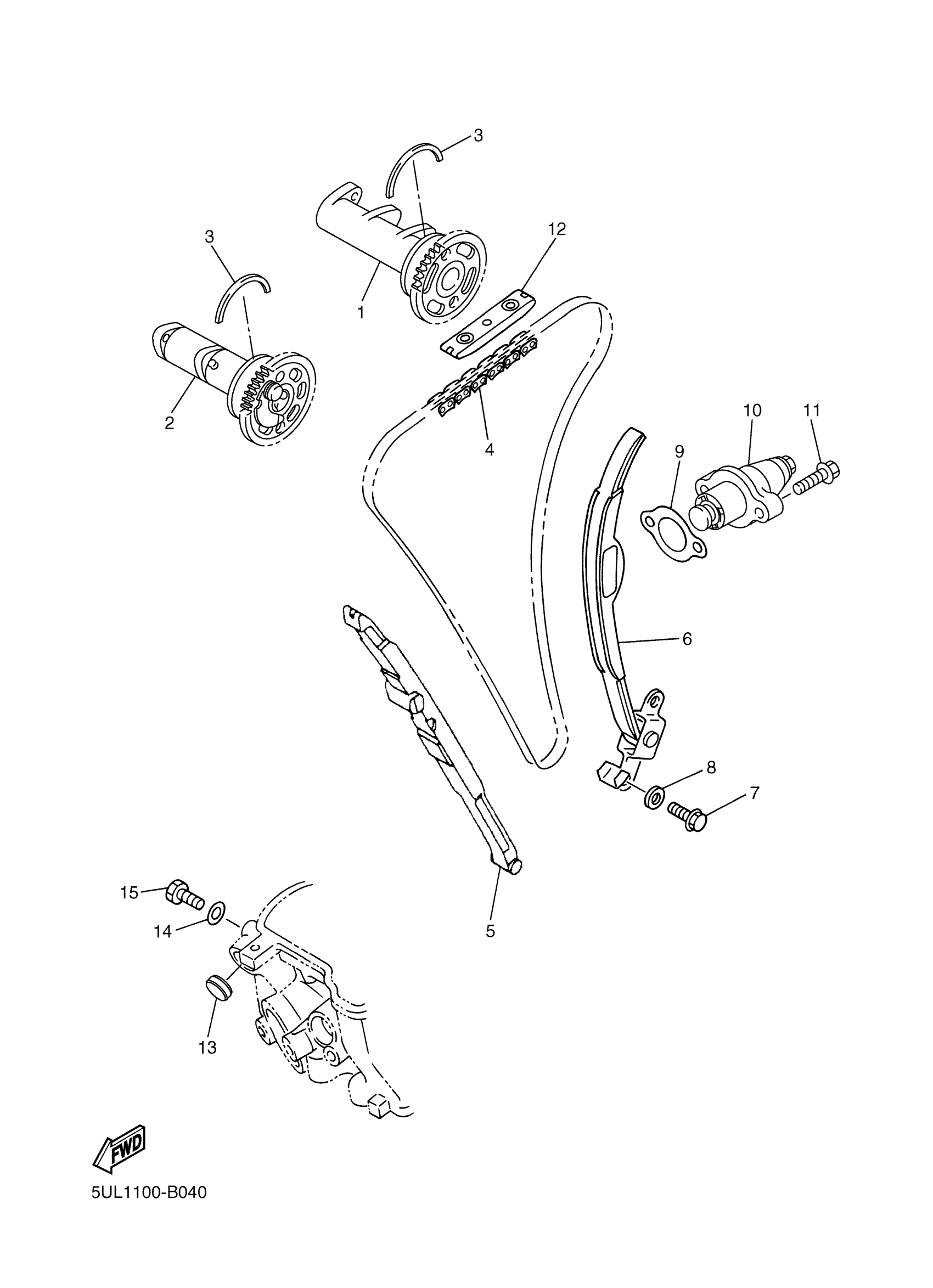

Yamaha YZ250FS (YZ250F) 5XC1 2004 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5UL-12170-10-00

Unavailable

2

CAMSHAFT ASSY 2

5UL-12180-10-00

$323.46

3

CIRCLIP

93440-41178-00

$3.18

4

CHAIN

94591-53114-00

$26.67

5

DAMPER, CHAIN 1

5NL-12251-11-00

Unavailable

6

DAMPER, CHAIN 2

5NL-12252-01-00

Unavailable

7

BOLT, HEXAGON

97017-06016-00

$5.76

8

WASHER(6TA)

92907-06600-00

$0.73

9

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

10

TENSIONER ASSY, CAM CHAIN

5TA-12210-10-00

$111.71

11

BOLT, SMALL FLANGE

95027-06025-00

$2.95

12

GUIDE, STOPPER 2

5BE-12241-01-00

$23.85

13

PLUG (517)

90338-18064-00

$5.79

14

GASKET 256113960000

90430-06014-00

Unavailable

15

BOLT (583 TACHOMETER)

90109-06418-00

$5.98
