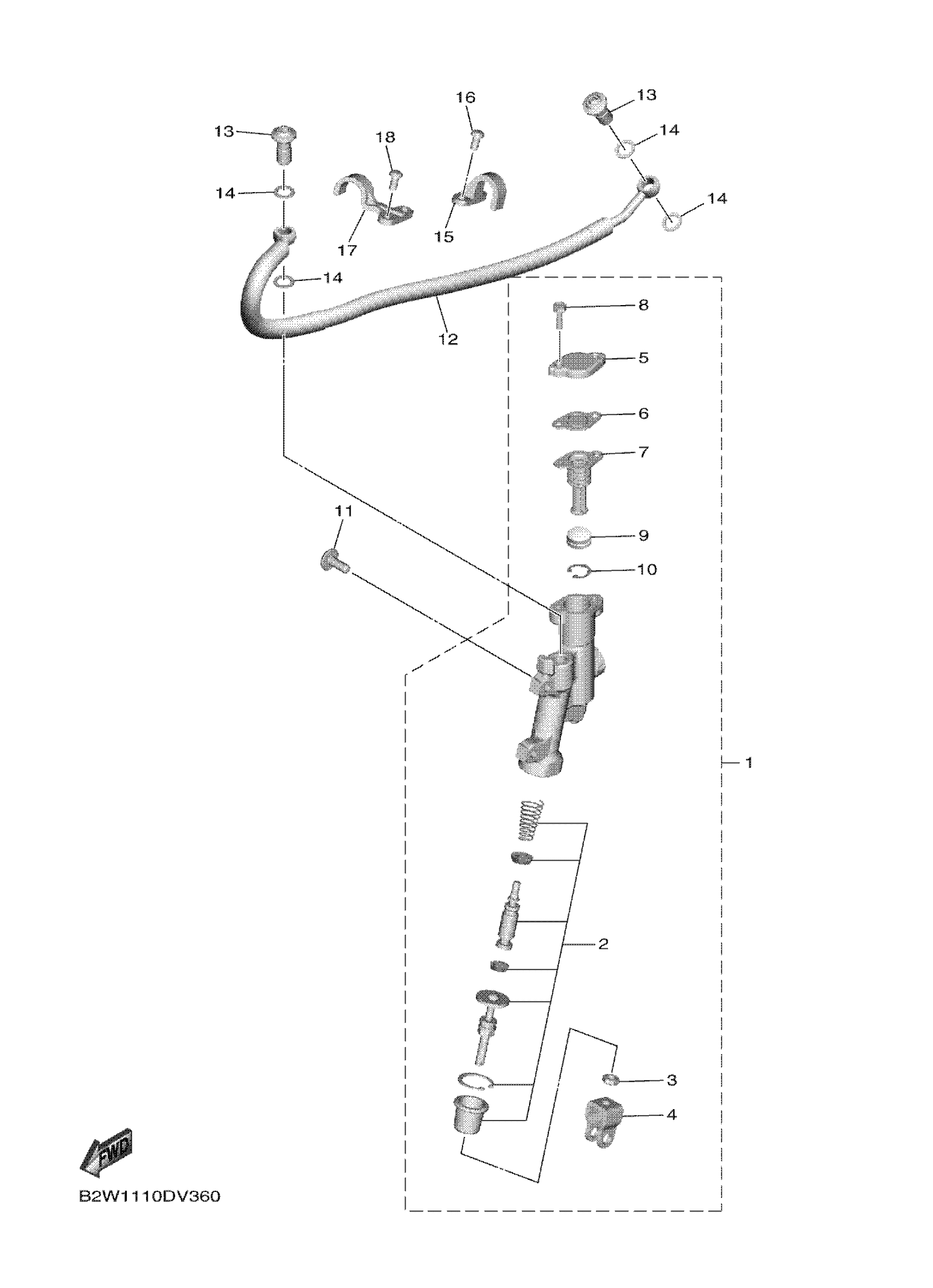

Yamaha YZ250FRSE (YZ250F 50TH) BMF6 2024 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

BMF-2583V-00-00

$166.99

2

CYLINDER KIT, MASTER

5UN-W0042-50-00

$89.99

3

NUT

5UN-27218-00-00

$4.89

4

JOINT

5UN-27222-00-00

$17.49

5

CAP, RESERVOIR

5UN-25852-50-00

$17.49

6

PLATE, DIAPHRAGM

5UN-2585B-00-00

$7.99

7

DIAPHRAGM, RESERVOIR

BMF-25854-00-00

$22.99

8

BOLT

5UN-27217-00-00

$5.49

9

SEPARATOR ASSY

5CG-25715-00-00

$13.49

10

CIRCLIP

5CG-2585G-00-00

$5.49

11

BOLT,HEX. SOCKET BUTTON

90111-06116-00

$7.49

12

HOSE, BRAKE 2

BHR-25873-01-00

$90.99

13

BOLT, UNION

90401-10172-00

$5.60

14

GASKET

90430-10005-00

$9.49

15

HOLDER, BRAKE HOSE

1C3-25886-50-00

$14.49

16

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

17

HOLDER, BRAKE HOSE 2

1C3-25876-50-00

Unavailable

18

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable
