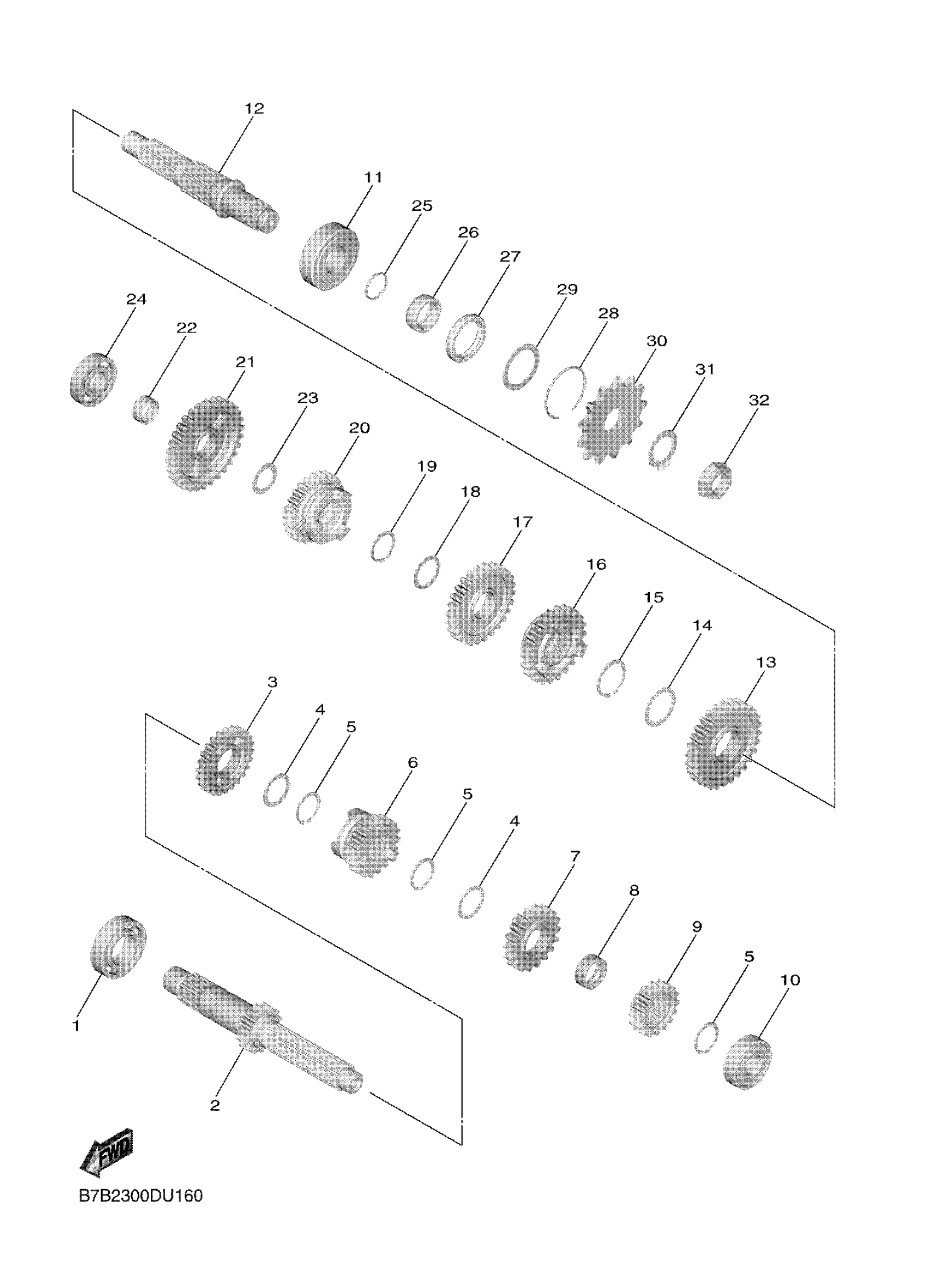

Yamaha YZ250FRL (YZ250F) BMF1 2024 TRANSMISSION Diagram

#

Description
Price

1

BEARING

93306-00525-00

$23.99

2

AXLE, MAIN

B7B-17411-00-00

$137.99

3

GEAR, 5TH PINION

1SM-17151-00-00

$79.99

4

WASHER

90209-20008-00

$11.49

5

CIRCLIP (537)

93410-22039-00

$8.49

6

GEAR, 3RD PINION

1SM-17131-20-00

$211.99

7

GEAR, 4TH PINION

1SM-17141-30-00

$86.99

8

COLLAR

90387-20006-00

$31.99

9

GEAR, 2ND PINION

1SM-17121-00-00

$71.99

10

BEARING(50M)

93306-20336-00

$32.99

11

BEARING

93306-27209-00

$76.99

12

DRIVE AXLE ASSY.,2

B7B-1742A-10-00

Unavailable

13

GEAR, 2ND WHEEL (28T)

1SM-17221-20-00

$127.99

14

WASHER

90209-23012-00

$5.60

15

CIRCLIP (30X)

93410-26067-00

$8.49

16

GEAR, 4TH WHEEL

1SM-17241-30-00

Unavailable

17

GEAR, 3RD WHEEL

1SM-17231-30-00

Unavailable

18

WASHER

90209-20008-00

$11.49

19

CIRCLIP (537)

93410-22039-00

$8.49

20

GEAR, 5TH WHEEL (25T)

1SM-17251-20-00

Unavailable

21

GEAR, 1ST WHEEL

B7B-17211-00-00

Unavailable

22

COLLAR

90387-17012-00

Unavailable

23

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

24

BEARING

93306-20351-00

Unavailable

25

O-RING

93210-196A4-00

Unavailable

26

COLLAR

90387-22036-00

Unavailable

27

OIL SEAL

93102-28012-00

Unavailable

28

CIRCLIP

93450-40N50-00

Unavailable

29

WASHER, PLATE

90201-29M00-00

Unavailable

30

SPROCKET, DRIVE (13T)

9383B-13218-00

Unavailable

31

WASHER, LOCK

90215-20003-00

Unavailable

32

NUT

90179-18001-00

Unavailable
