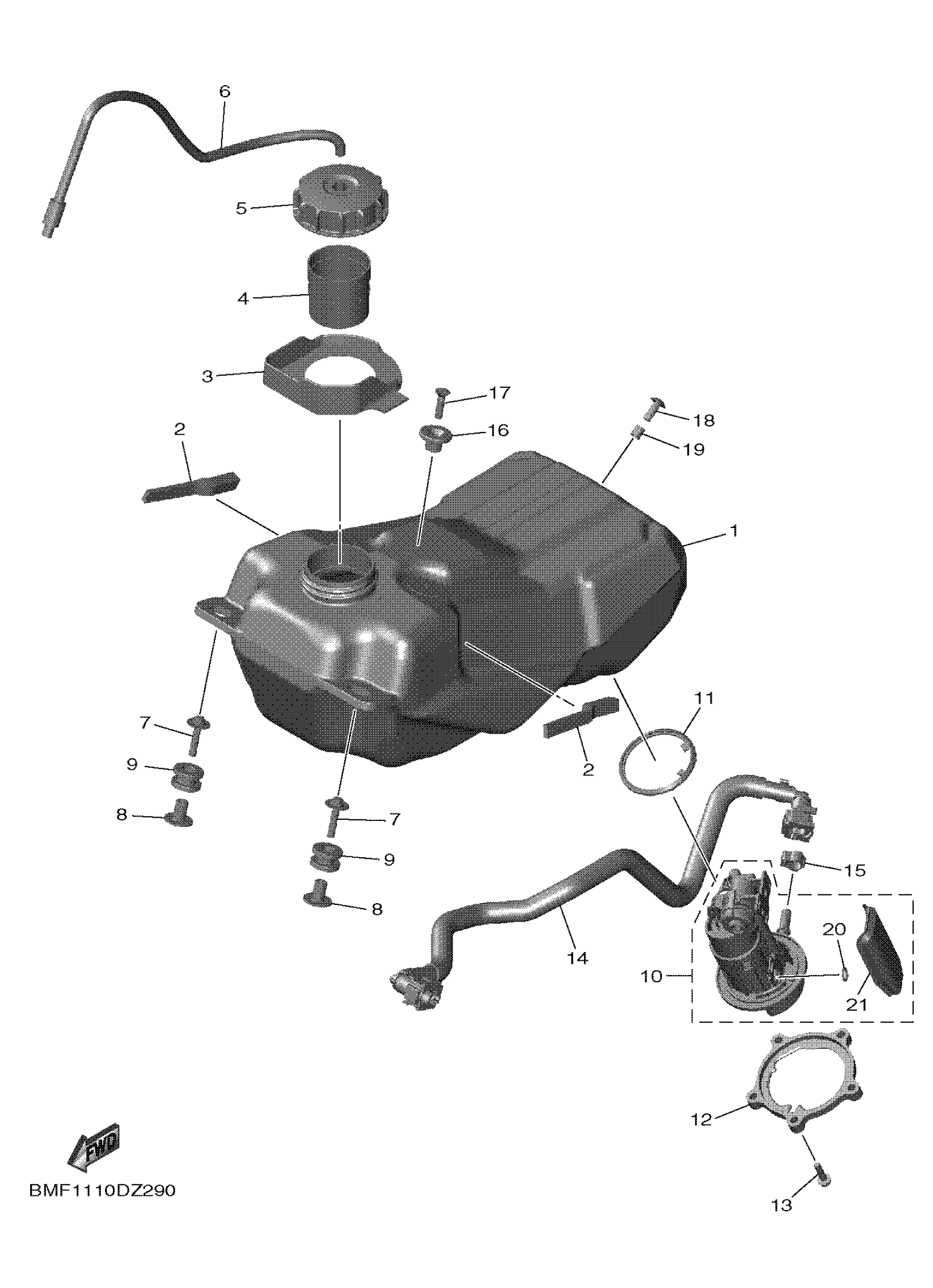

Yamaha YZ250FRL (YZ250F) BMF1 2024 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BHR-24110-00-00

$299.99

2

DAMPER, PLATE

90520-10045-00

Unavailable

3

MOLD, FUEL TANK

BHR-24188-00-00

$41.99

4

TUBE, FILLER

BHR-24114-00-00

$14.99

5

CAP ASSY

BR9-24610-00-00

$68.99

6

HOSE

90445-08050-00

$8.49

7

BOLT, WITH WASHER

90119-06262-00

$8.49

8

COLLAR

90387-06065-00

$12.49

9

GROMMET

90480-14037-00

$15.99

10

FUEL PUMP COMP.

BHR-13907-00-00

Unavailable

11

SEAL

B3J-2414G-00-00

$16.99

12

BRACKET, FUEL PUMP

BHR-24491-00-00

$58.99

13

BOLT, HEXAGON SOCKET HEAD

90110-05058-00

$8.49

14

PIPE, FUEL 1

BMF-13971-00-00

$104.99

15

CLAMP 1

33D-24135-00-00

$10.99

16

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

17

SCREW, CROSSRECESS (8G6)

90151-06005-00

Unavailable

18

SCREW

90149-06021-00

Unavailable

19

COLLAR

90387-06284-00

Unavailable

20

GASKET

3C1-24512-00-00

Unavailable

21

FILTER

B3J-13915-00-00

Unavailable
