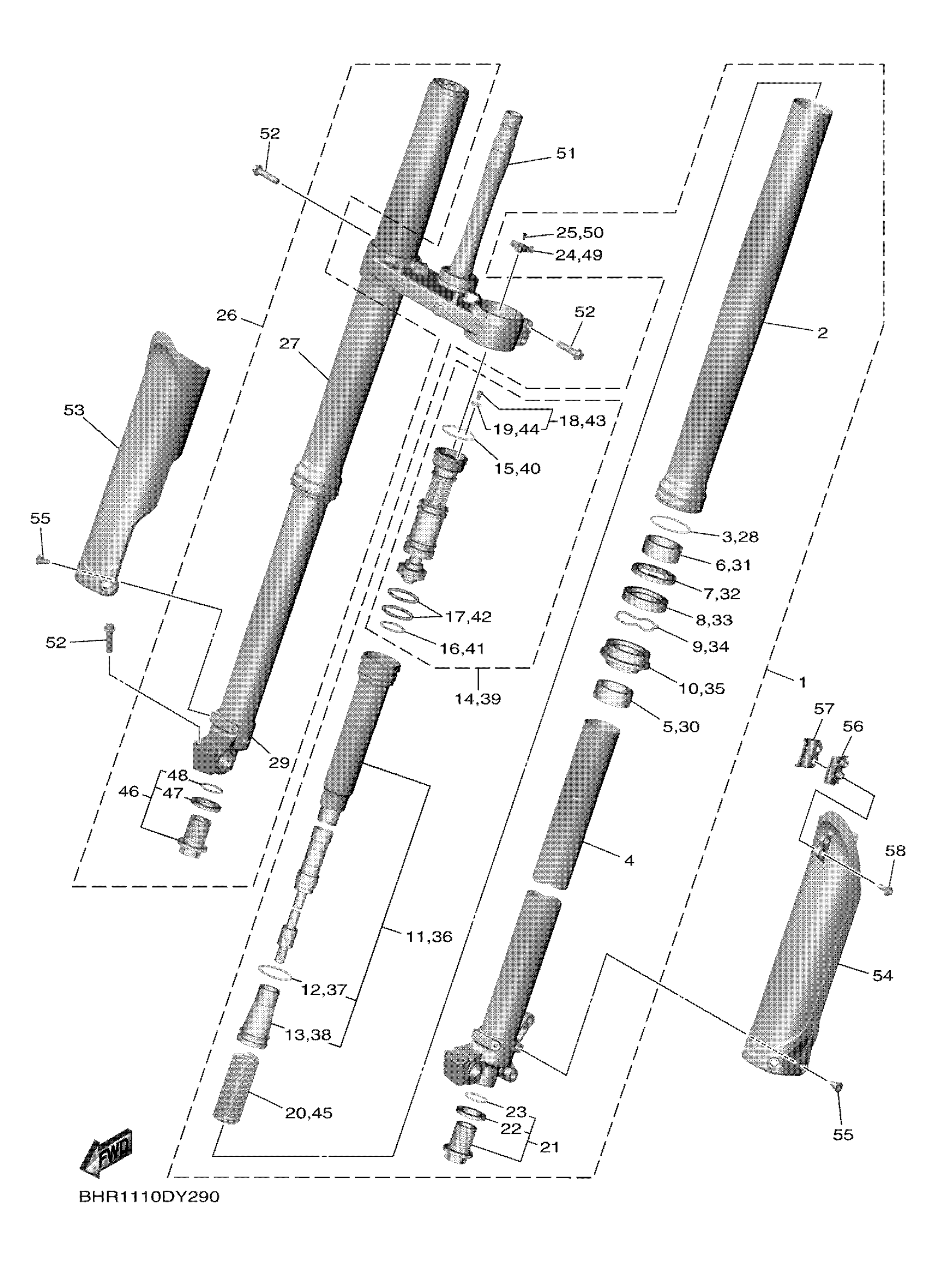

Yamaha YZ250FRL (YZ250F) BMF1 2024 FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY. (L)

BMF-23102-00-00

$1,285.99

2

TUBE, OUTER

1SL-23136-00-00

Unavailable

3

RING, SNAP

17D-23153-00-00

$4.63

4

INNER TUBE COMP.2

BR9-23120-01-00

$417.99

5

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

6

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

7

WASHER, OIL SEAL

5XC-23146-00-00

$14.49

8

OIL SEAL

B29-23145-00-00

$22.99

9

RING, SNAP

5XE-23153-L0-00

$7.99

10

SEAL, DUST

BHR-23144-00-00

$22.99

11

CYLINDER COMP., FRONT FORK

BMF-23170-00-00

$680.99

12

O-RING

1C3-23147-L1-00

$3.48

13

SEAT, SPRING UPPER

BR9-23142-01-00

$58.99

14

VALVE COMP.

BMF-2316A-00-00

$484.99

15

O-RING

1C3-23188-L2-00

$7.99

16

O-RING

1C3-23188-P0-00

Unavailable

17

O-RING

1AE-23147-01-00

Unavailable

18

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

19

O-RING

1C3-23188-R1-00

Unavailable

20

SPRING, FRONT FORK (K=4.7)

BR9-23141-40-00

Unavailable

21

BOLT, CAP

5XC-23111-01-00

Unavailable

22

GASKET

2HH-23158-L0-00

Unavailable

23

GASKET

276-23114-02-00

Unavailable

24

CAP

BHR-2319W-00-00

Unavailable

25

SCREW

1MC-23119-10-00

Unavailable

26

DAMPER ASSY. (R)

BMF-23103-00-00

Unavailable

27

TUBE, OUTER

1SL-23136-00-00

Unavailable

28

RING, SNAP

17D-23153-00-00

$4.63

29

INNER TUBE COMP.1

BR9-23110-01-00

Unavailable

30

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

31

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

32

WASHER, OIL SEAL

5XC-23146-00-00

$14.49

33

OIL SEAL

B29-23145-00-00

$22.99

34

RING, SNAP

5XE-23153-L0-00

$7.99

35

SEAL, DUST

BHR-23144-00-00

$22.99

36

CYLINDER COMP., FRONT FORK

BMF-23170-00-00

$680.99

37

O-RING

1C3-23147-L1-00

$3.48

38

SEAT, SPRING UPPER

BR9-23142-01-00

$58.99

39

VALVE COMP.

BMF-2316A-00-00

$484.99

40

O-RING

1C3-23188-L2-00

$7.99

41

O-RING

1C3-23188-P0-00

Unavailable

42

O-RING

1AE-23147-01-00

Unavailable

43

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

44

O-RING

1C3-23188-R1-00

Unavailable

45

SPRING, FRONT FORK (K=4.7)

BR9-23141-40-00

Unavailable

46

BOLT, CAP

5XC-23111-01-00

Unavailable

47

GASKET

2HH-23158-L0-00

Unavailable

48

GASKET

276-23114-02-00

Unavailable

49

CAP

BHR-2319W-00-00

Unavailable

50

SCREW

1MC-23119-10-00

Unavailable

51

UNDER BRACKET COMP.

B7R-23340-00-00

Unavailable

52

BOLT, FLANGE DEEP RECESS

95E34-08035-00

Unavailable

53

PROTECTOR 2

BHR-2315J-00-00

Unavailable

54

PROTECTOR 1

BHR-2315H-00-00

Unavailable

55

BOLT

90109-06232-00

Unavailable

56

CLAMP

BHR-23466-00-00

Unavailable

57

CLAMP

BHR-23467-00-00

Unavailable

58

BOLT, FLANGE

90105-06170-00

Unavailable
