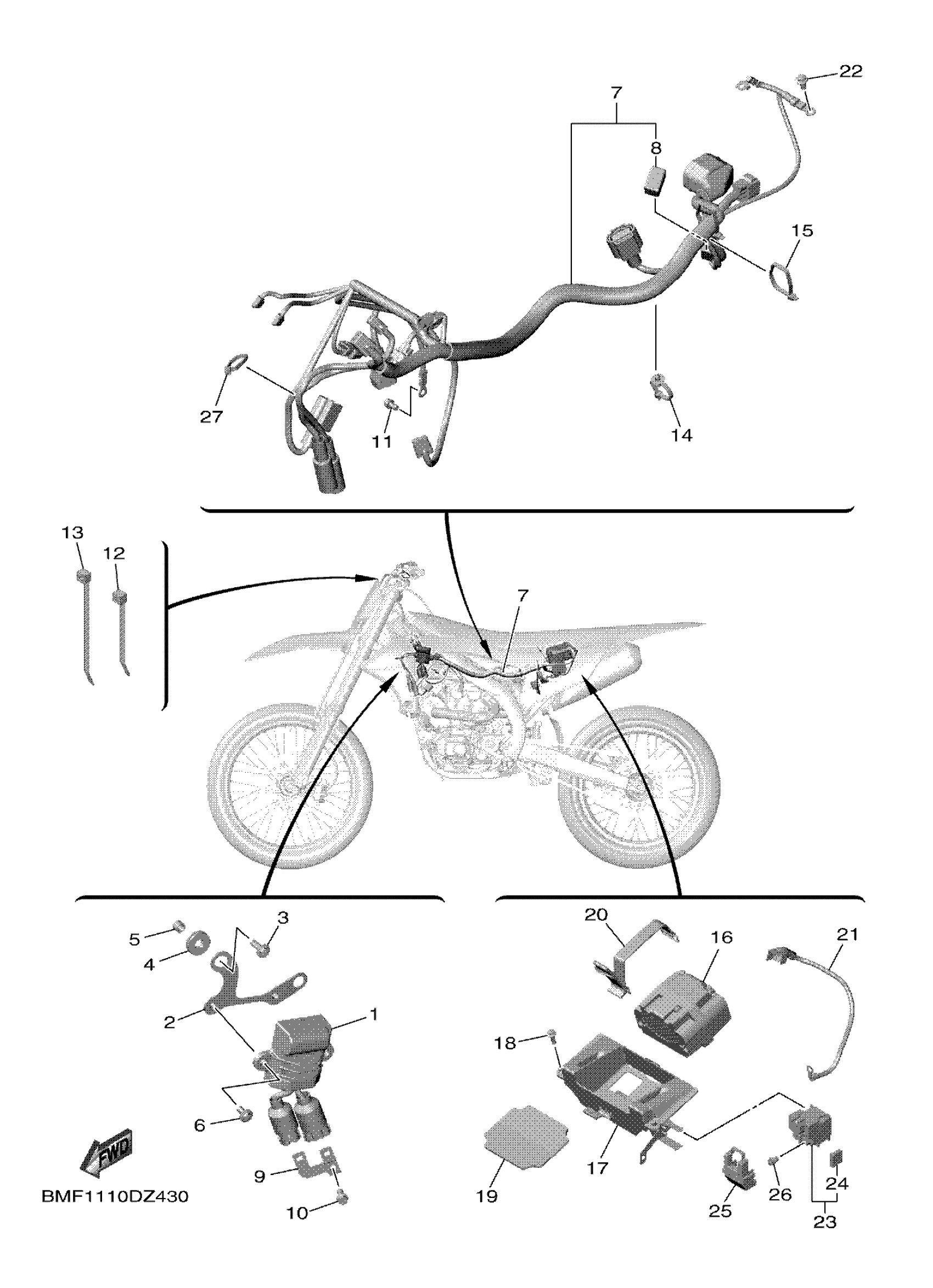

Yamaha YZ250FRL (YZ250F) BMF1 2024 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

B7B-81960-00-00

$156.99

2

BRACKET, REGULATOR

BHR-21287-00-00

$26.99

3

BOLT, FLANGE

90105-06219-00

$2.12

4

GROMMET (4L0)

90480-19283-00

$8.49

5

COLLAR (8H6)

90387-07573-00

$9.49

6

BOLT, FLANGE

90105-06064-00

Unavailable

7

WIRE HARNESS ASSY

BMF-82590-00-00

$396.99

8

DIODE ASSY

4WA-81980-00-00

$29.99

9

PLATE

1SL-82388-00-00

$4.06

10

BOLT, FLANGE

90105-06110-00

$8.49

11

BOLT, FLANGE DEEP RECESS

95E32-06010-00

$0.91

12

CLAMP

90464-13077-00

$8.49

13

CLAMP(4FM)

90464-15195-00

$4.41

14

CLAMP

90464-31002-00

$4.82

15

BAND

1UA-82591-00-00

$4.78

16

BATTERY ASSY

BR9-82100-48-00

Unavailable

17

BRACKET, BATTERY

BHR-82128-10-00

Unavailable

18

BOLT, FLANGE

90105-06203-00

Unavailable

19

DAMPER

BR9-82176-00-00

Unavailable

20

BAND, BATTERY

BHR-82131-00-00

Unavailable

21

WIRE, PLUS LEAD

BHR-82115-00-00

Unavailable

22

BOLT, FLANGE

90105-06064-00

Unavailable

23

STARTER RELAY ASSY

2GB-81940-00-00

Unavailable

24

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

25

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

26

BOLT, FLANGE

95022-06008-00

Unavailable

27

CLAMP

90465-10098-00

Unavailable
