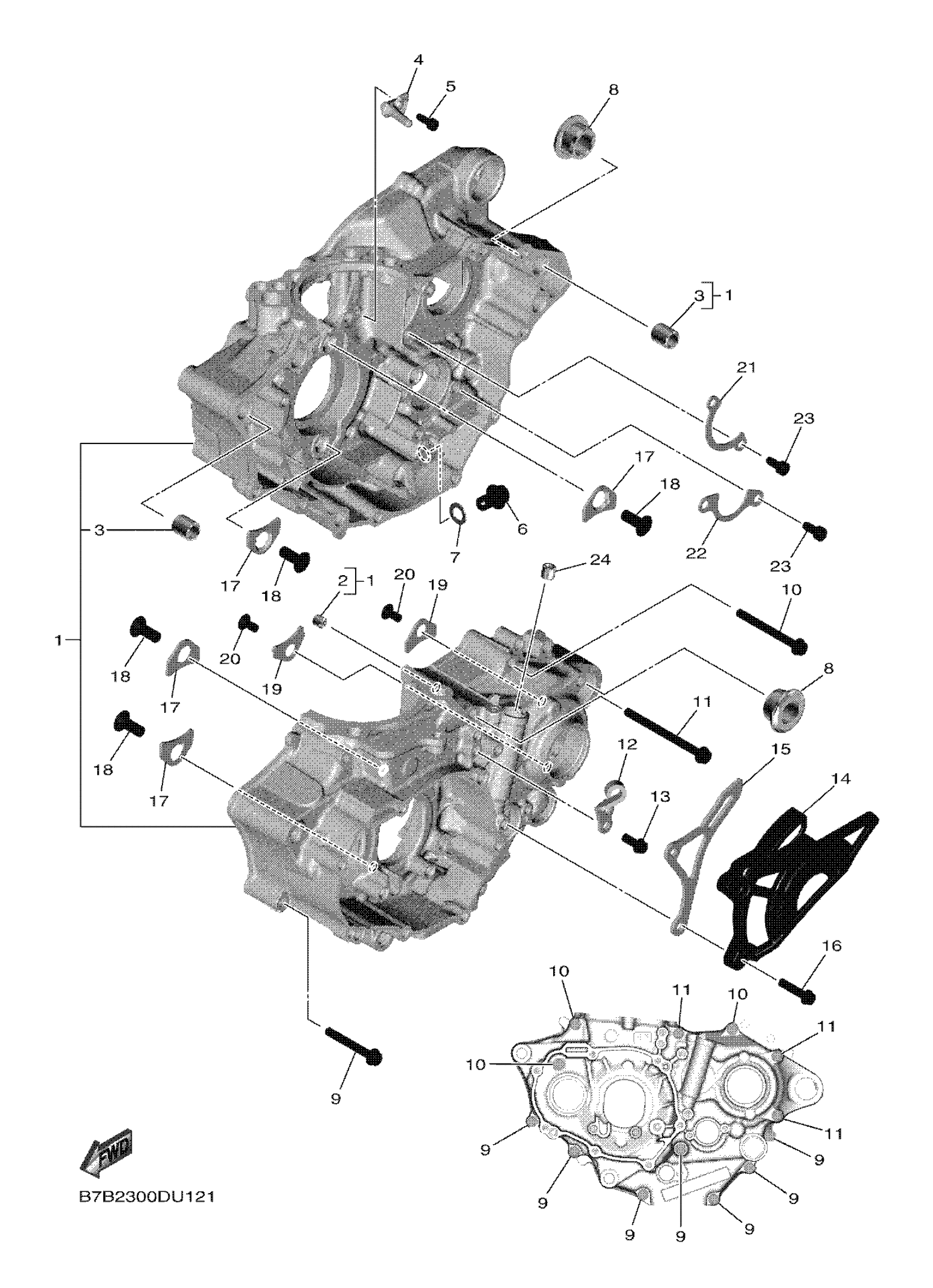

Yamaha YZ250FRL (YZ250F) BMF1 2024 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

B7B-15100-19-00

$1,378.99

2

NOZZLE 1

B7B-15138-00-00

$7.49

3

PIN, DOWEL

99530-14016-00

$3.80

4

NOZZLE 3

1SM-15155-10-00

$29.99

5

BOLT(47X)

91312-05012-00

$4.29

6

BOLT, FLANGE DEEP RECESS

95E32-10016-00

$1.49

7

GASKET

90430-10188-00

$6.99

8

COLLAR

90387-17018-00

$20.99

9

BOLT, HEXAGON SOCKET HEAD

90110-06391-00

$2.12

10

BOLT, HEXAGON SOCKET HEAD

90110-06363-00

$3.35

11

BOLT, HEXAGON SOCKET HEAD

90110-06392-00

$3.76

12

HOLDER, CLUTCH CABLE

1SL-15441-00-00

$12.99

13

BOLT, FLANGE

90105-06100-00

$7.49

14

COVER, CRANKCASE 2

1SL-15421-00-00

$16.49

15

GUIDE, CHAIN

1SL-17466-00-00

$18.49

16

BOLT, FLANGE

90105-06189-00

Unavailable

17

PLATE, BEARING COVER

18P-15383-00-00

Unavailable

18

SCREW, COUNTERSUNK

90151-08008-00

Unavailable

19

PLATE, BEARING COVER

4JT-15381-01-00

Unavailable

20

SCREW, COUNTERSUNK

90151-06052-00

Unavailable

21

PLATE, BEARING COVER

BAJ-15388-00-00

Unavailable

22

PLATE, STOPPER 2

1SL-18562-00-00

Unavailable

23

BOLT,SOCKET

91317-06012-00

Unavailable

24

BEARING

93317-106B4-00

Unavailable
